Chart B-5 Insufficient Sensitivity

Chart B-5: Insufficient Sensitivity.

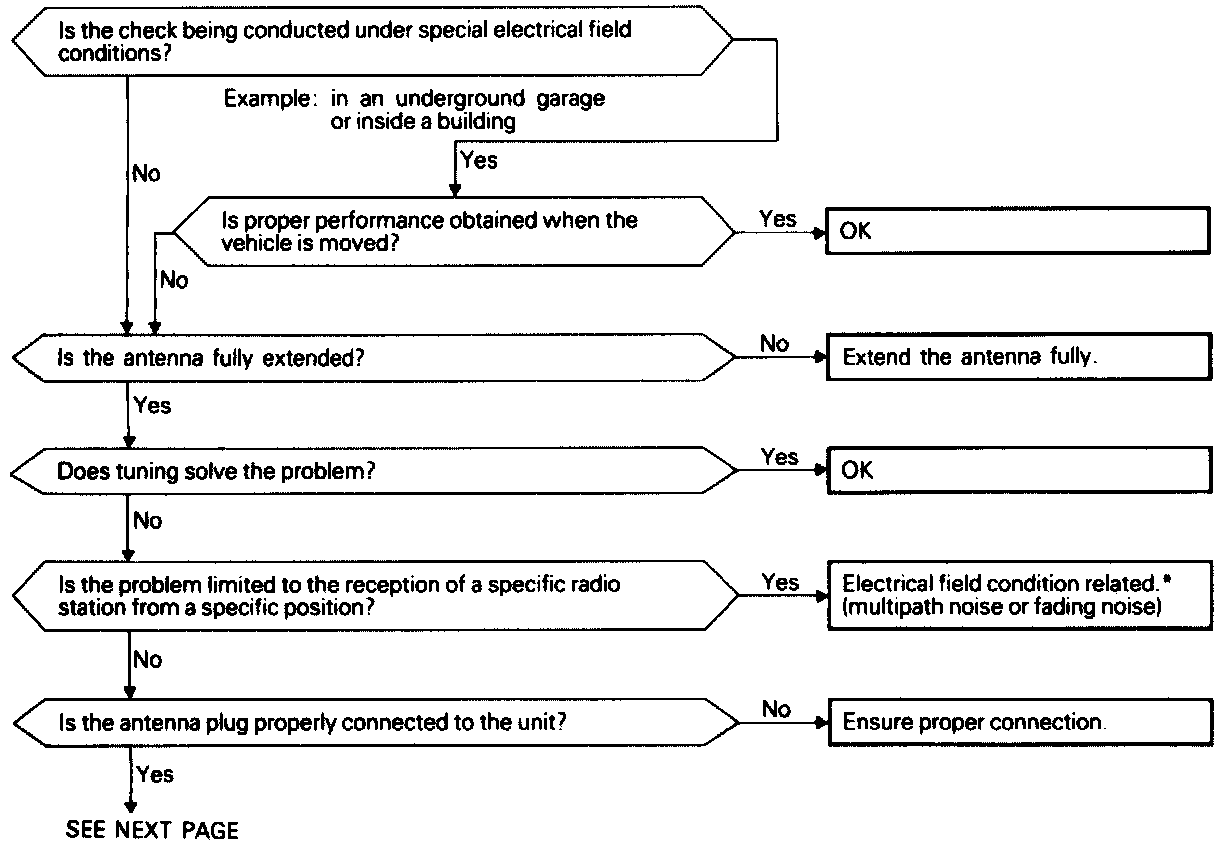

Chart B-5: Insufficient Sensitivity. (Part 1 Of 2):





Part 1 of 2

Chart B-5: Insufficient Sensitivity. (Part 2 Of 2):





Part 2 of 2
