Chart B-2 No Sound From One Speaker

Chart B-2: No Sound From One Speaker.

Chart B-2: No Sound From One Speaker.:

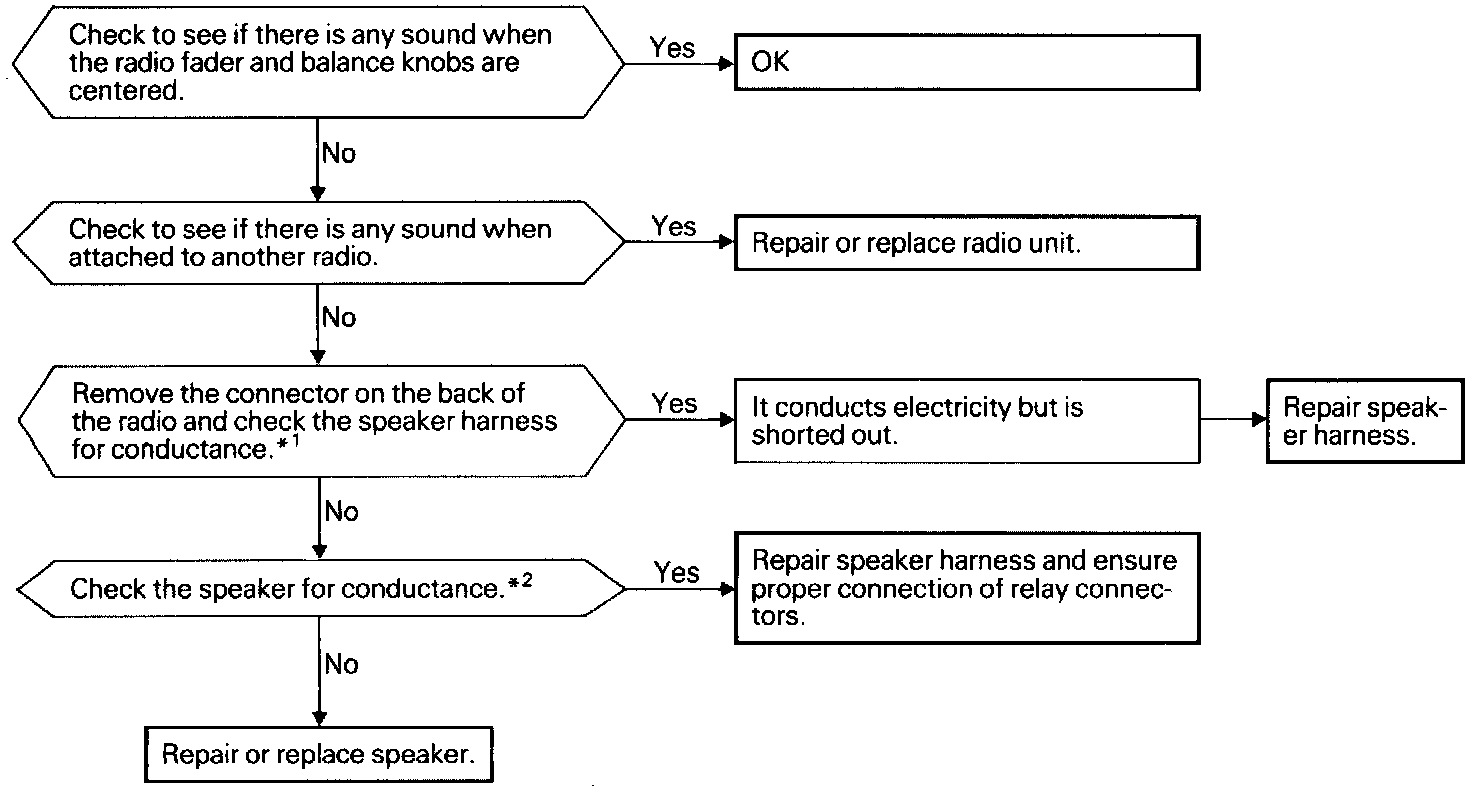

Flow Chart

Conductance Check Method 1:

Conductance Check Method 2:

*1 Conductance Check Method 1

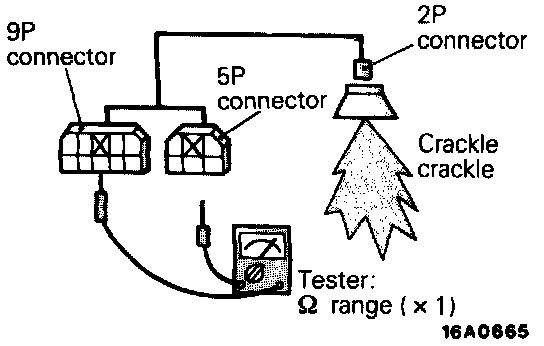

1. Remove 9P and 5P connectors from radio.
2. Insert test probe into connector terminal.

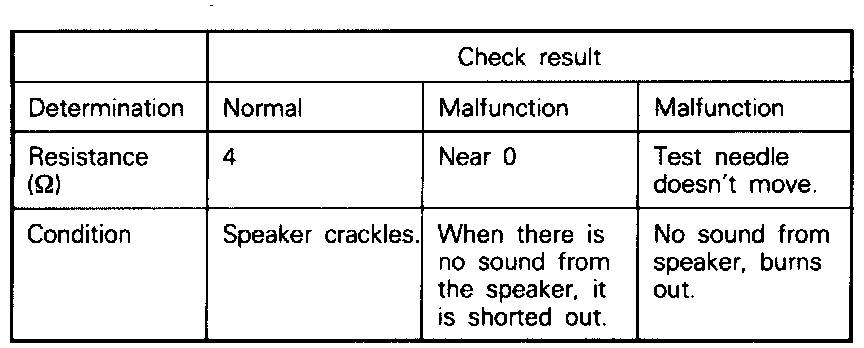

Conductance Check Method 2 Chart:

Check Result Chart

*2 Conductance Check Method 2

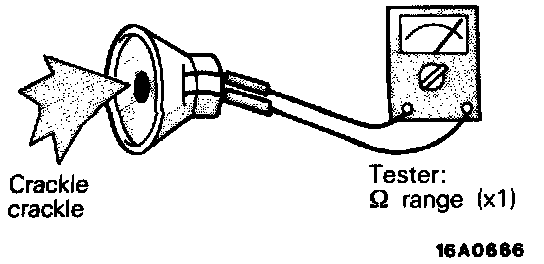

1. Remove the speaker 2P connector.
2. Insert the test probe into the connector terminal.
3. Refer the results to the above chart.
