Radio/Stereo: Service and Repair

Removal Of Radio Panel:

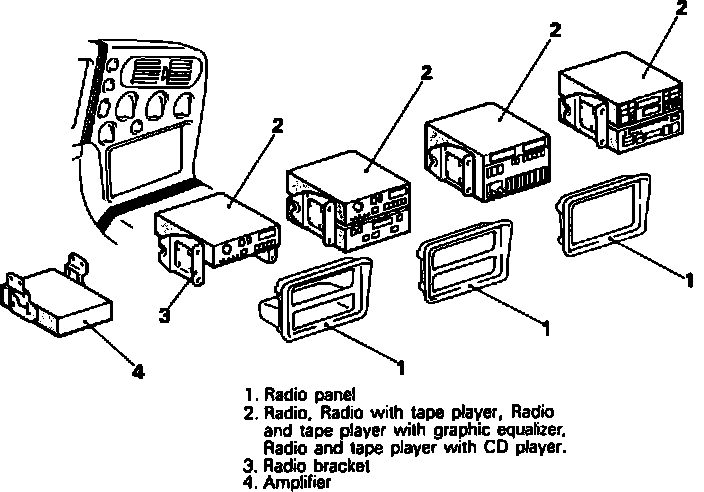

Fig. 10 Replacing Radio:

Remove radio in numbered sequence noting the following:

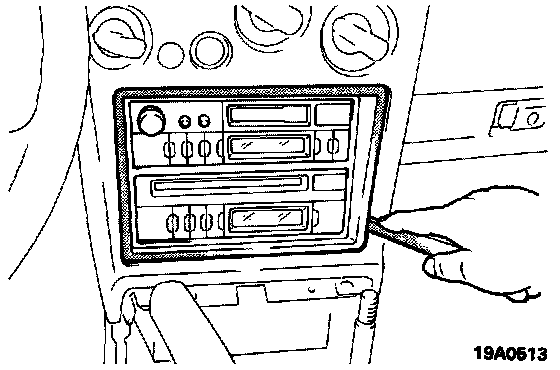

1. Use a plastic trim tool to pry lower part of radio panel out of console.
2. Remove side cover of console box, then remove amplifier.
3. Reverse procedure to install.
