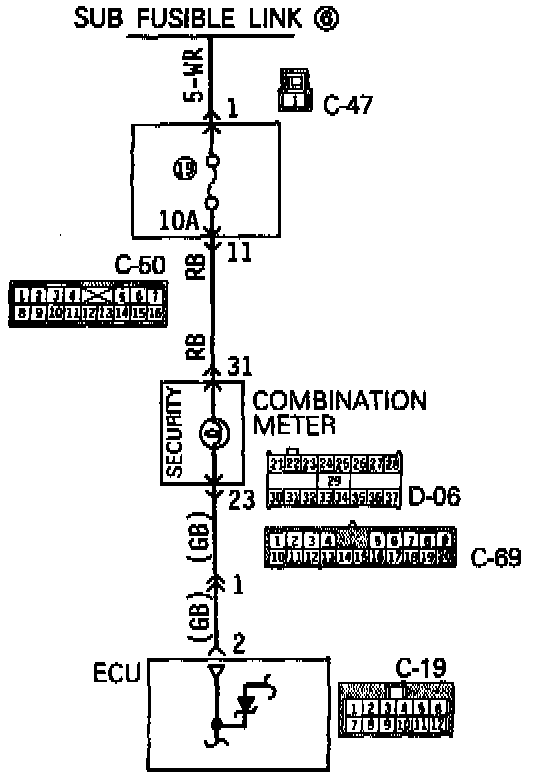

8. Security Light Activation Circuit

DESCRIPTION OF OPERATION
If all doors are in locked state after key locking or key-less locking, the ECU transistor is turned ON and the security light comes on.

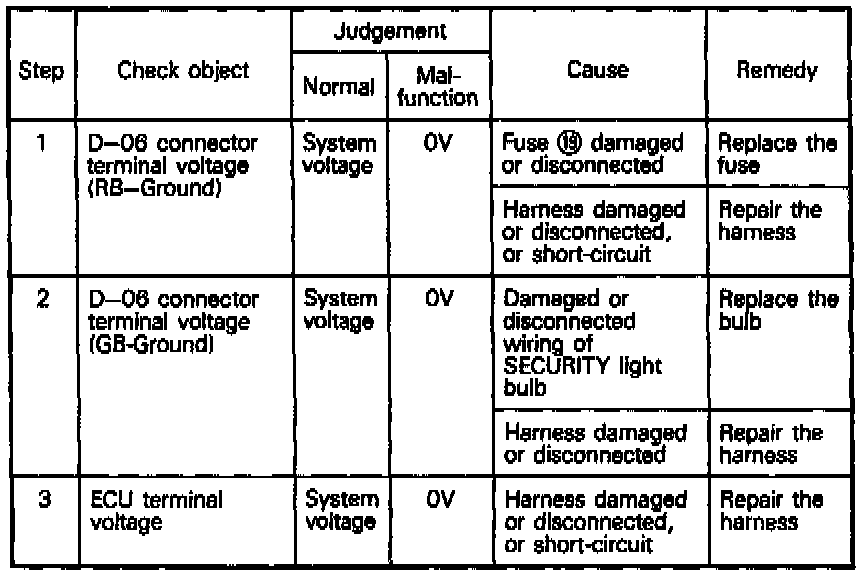

CHECKING THE SECURITY LIGHT ACTIVATION CIRCUIT
Disconnect the connector of the ECU and check at the wiring harness side.
