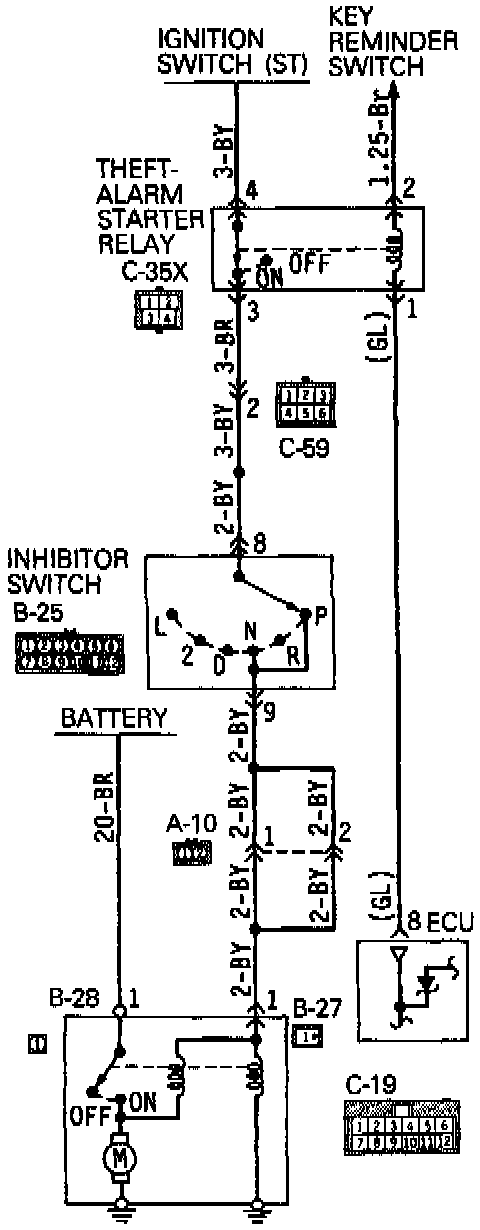

14. Theft-Alarm Starter Relay Activation Circuit
DESCRIPTION OF OPERATION
The ECU transistor is turned ON if the vehicle door etc. are opened without use of the key. This turns OFF the theft-alarm starter relay and power ceases to be supplied to the starter magnet switch.

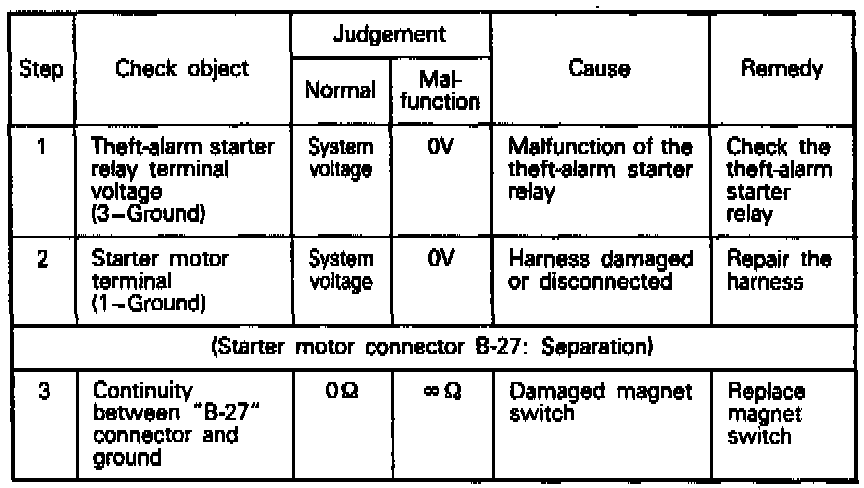

CHECKING THE THEFT-ALARM STARTER RELAY ACTIVATION CIRCUIT
Disconnect the connector of the ECU and set the inhibitor switch to the N or P range.
