Vehicles With Daytime Running Light

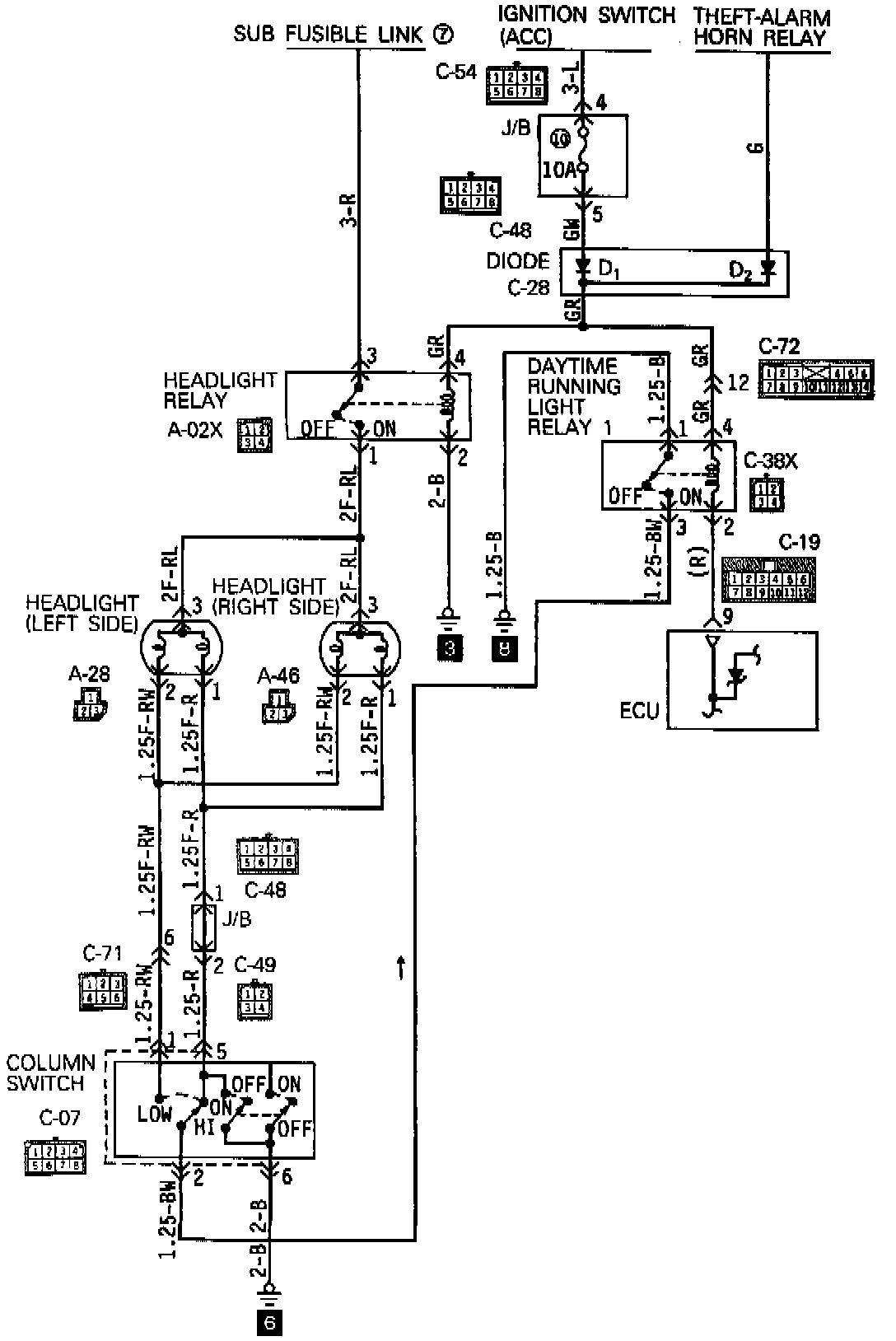

DESCRIPTION OF OPERATION
The ECU transistor is turned ON if the vehicle door, etc. are opened without use of the key. This energizes the headlight relay to activate the headlight.

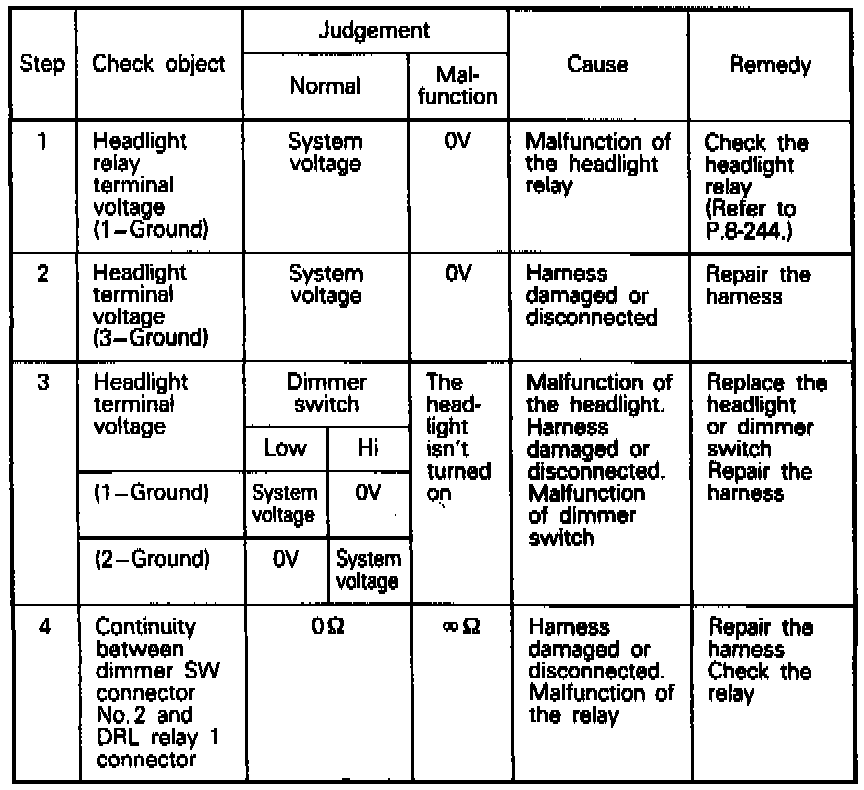

CHECKING THE HEADLIGHT ACTIVATION CIRCUIT
Disconnect the connector of the ECU, then short circuit terminal No. 9 (R line) and activate the headlight relay.
