11. Headlight Power-Supply Circuit

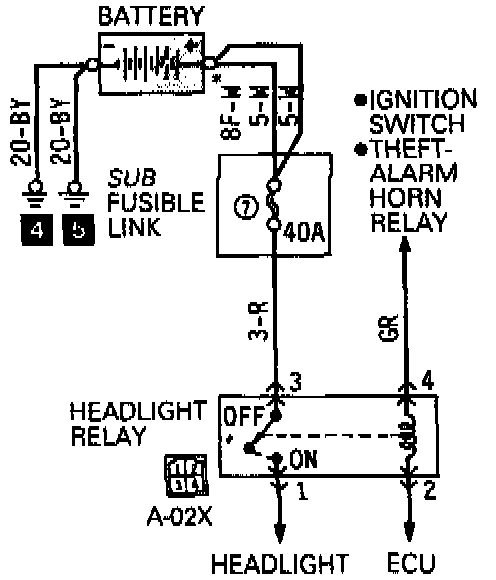

DESCRIPTION OF OPERATION
Power voltage is always supplied to the headlight relay.

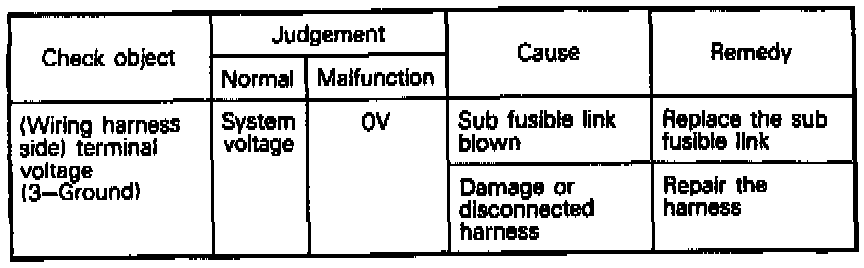

CHECKING THE HEADLIGHT POWER-SUPPLY CIRCUIT
Disconnect the headlight relay.
