Home >> Eagle >> 1994 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-1A CODE to DR TEST Chart (Checking for Fault Codes)

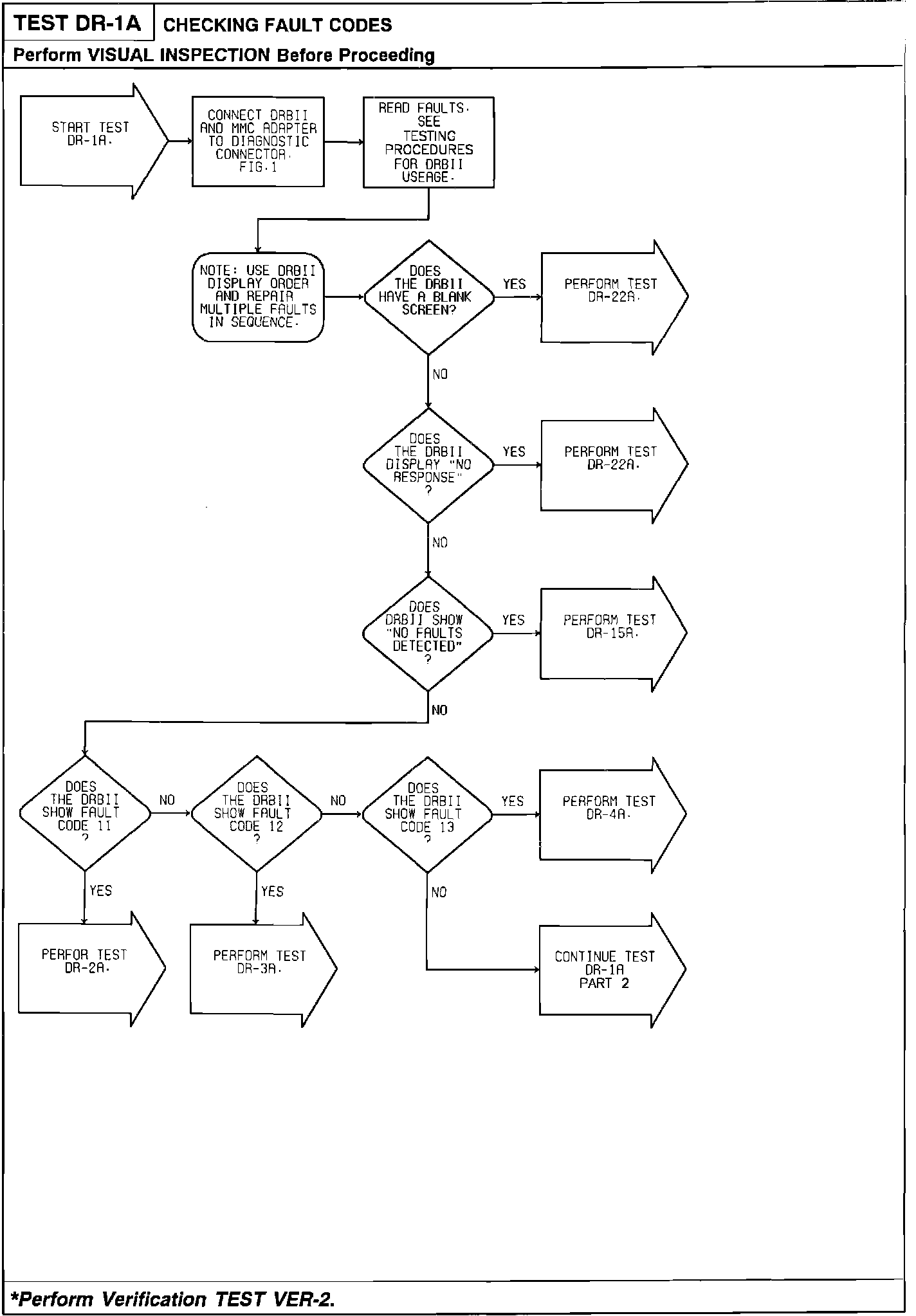

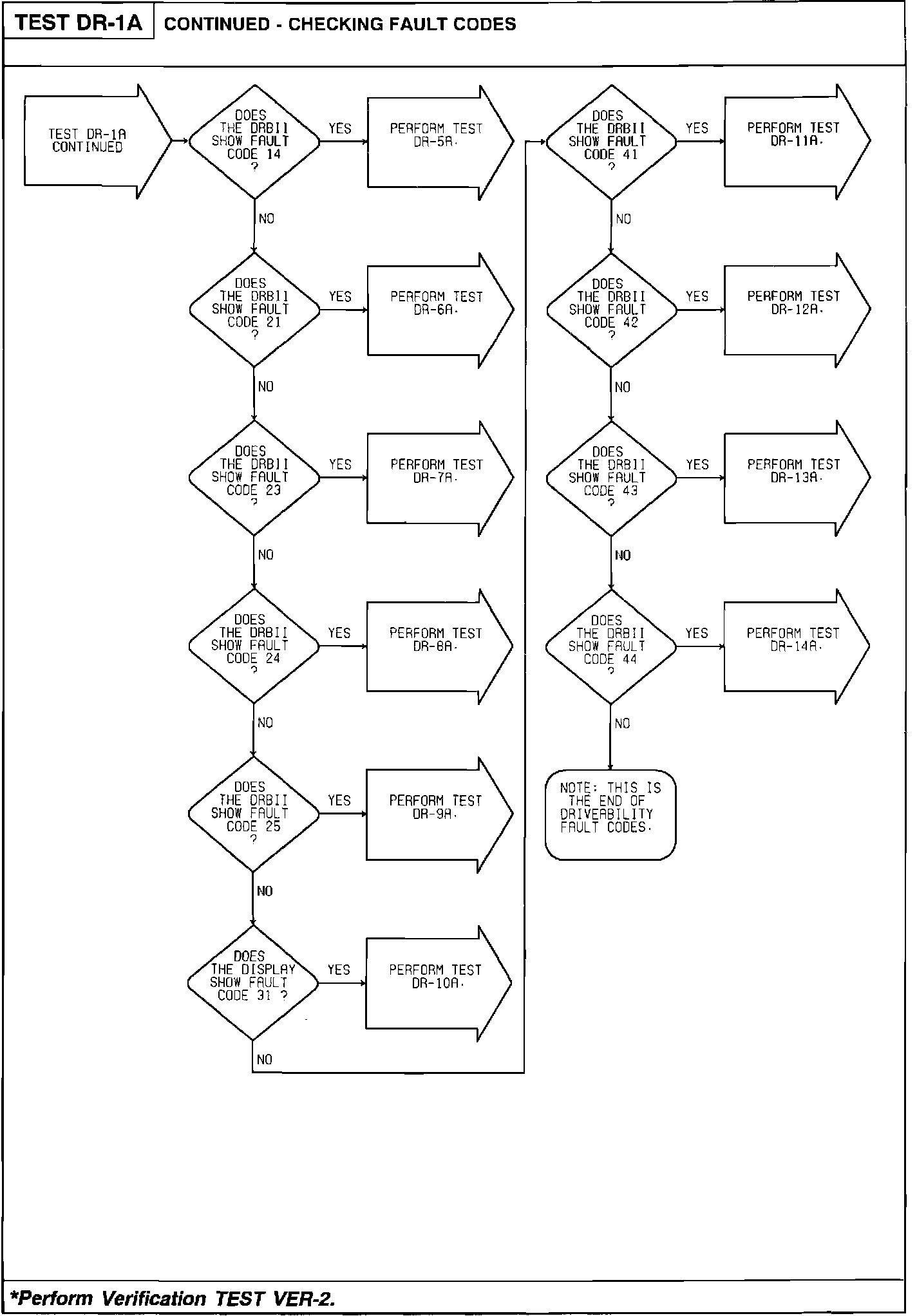

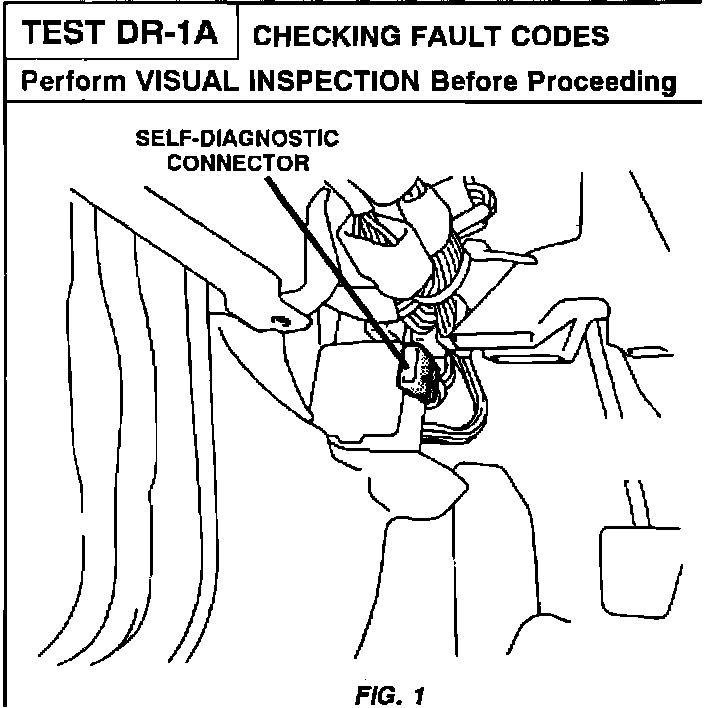

DR-1A CODE to DR TEST Chart (Checking for Fault Codes)



11-13:



14-31:
