Home >> Eagle >> 1994 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> 1, 2 and 3 Digit Codes >> 52

1, 2 and 3 Digit Codes: 52

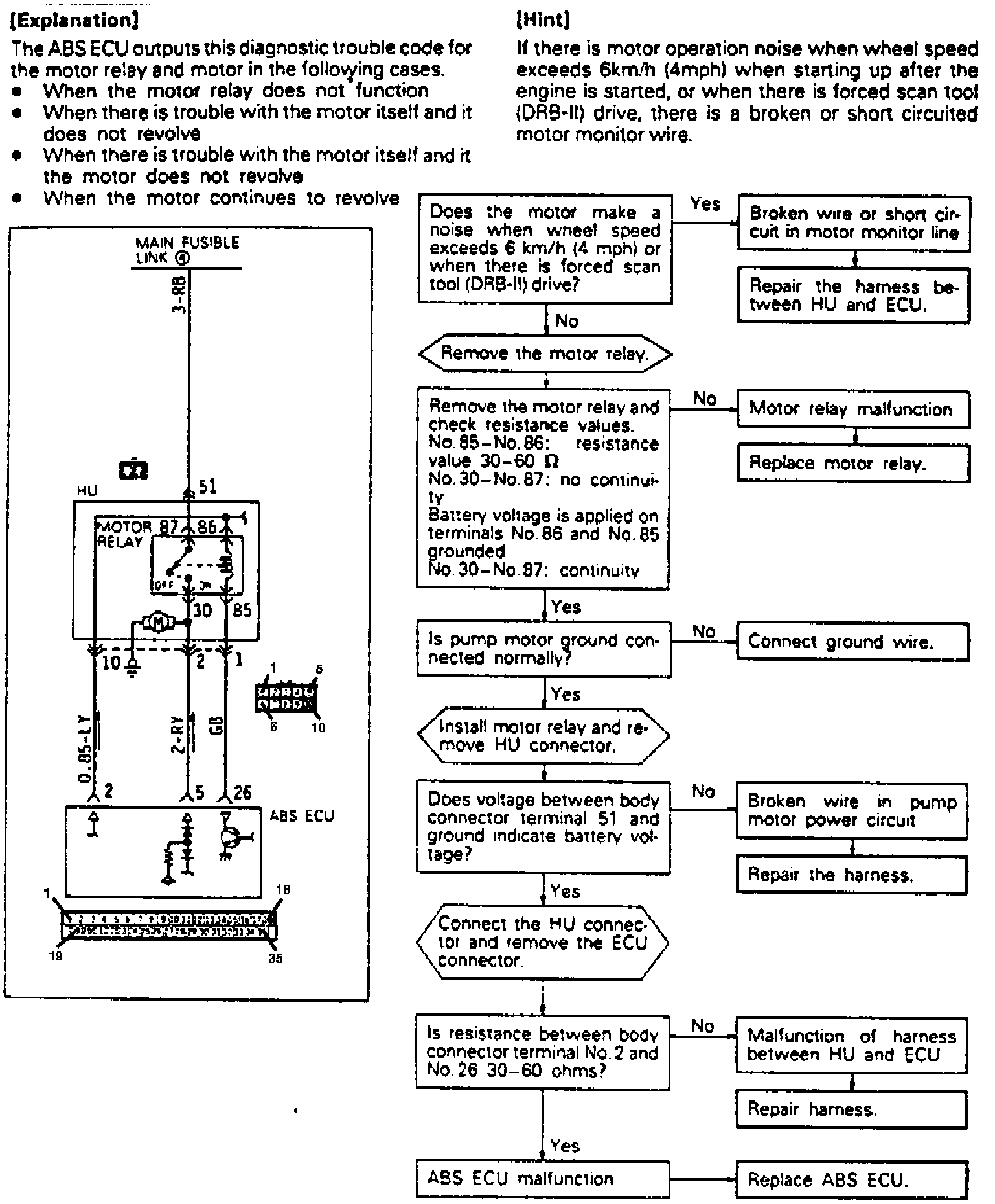

Fig 53 Code 52: ABS Chart E7, Abnormality Of Motor Drive Circuit:
