22
>>
Antilock Brakes and Traction Control System
Antilock Brakes and Traction Control System

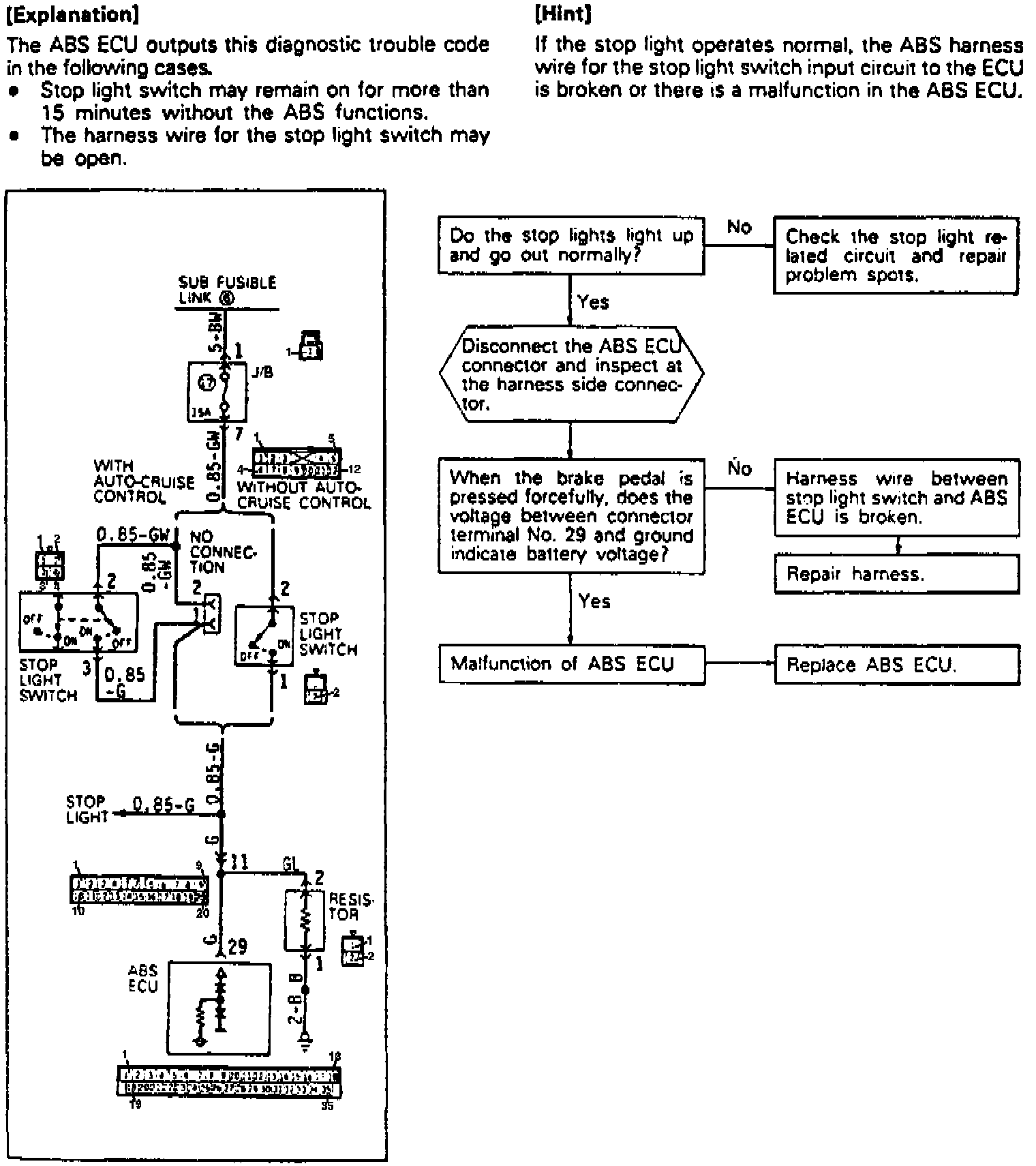

Fig 50 Code 22: ABS Chart E4, Abnormality Of Stop Light Switch Circuit:
