Home >> Eagle >> 1994 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> 1, 2 and 3 Digit Codes >> 21 >> Antilock Brakes and Traction Control System

Antilock Brakes and Traction Control System

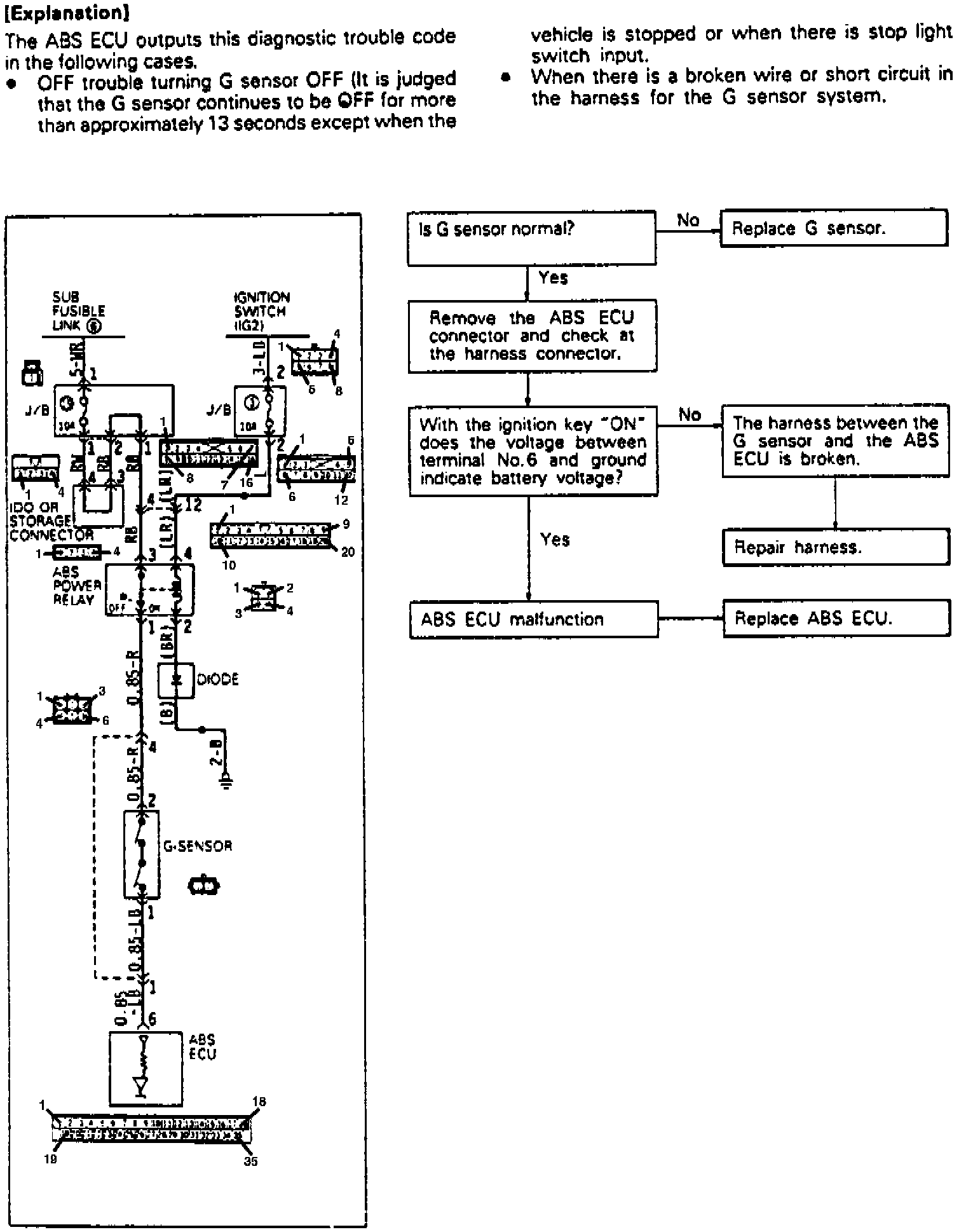

Fig 49 Code 21:ABS Chart E3, Abnormality Of G Sensor Circuit:
