Rear Suspension Torque Specification - Manual Correction

NO.:
02-07-92

GROUP:
Suspension

DATE:
Nov. 16, 1992



SUBJECT:
Service Manual Revision Rear Suspension Torque Specifications



MODELS:

1993 (LH) Concorde/Intrepid/Vision


DISCUSSION:

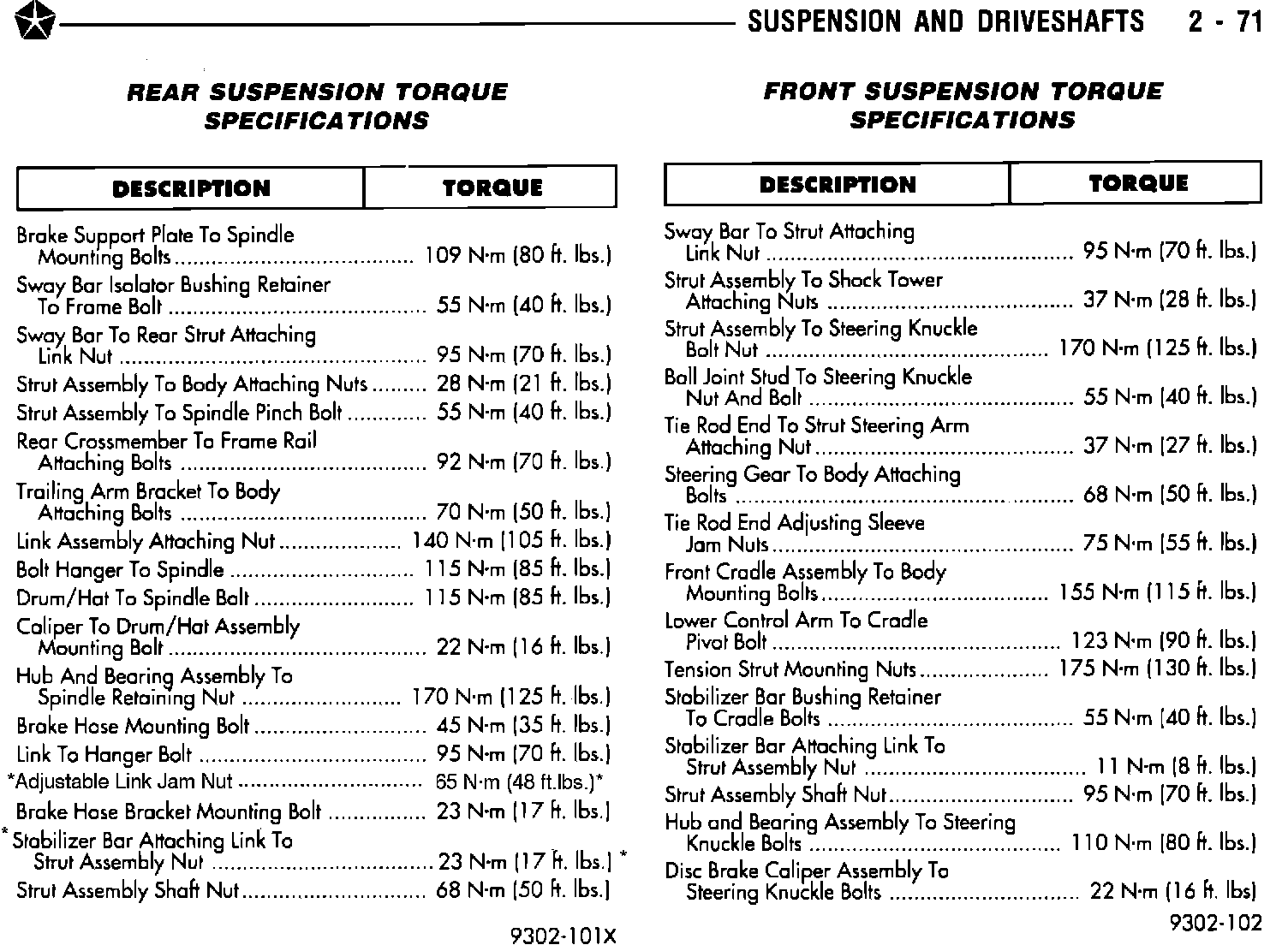

The torque specified in the listed manual is incorrect for the adjustable link jamb nuts and the stabilizer bar link-to-strut assembly nut. Please insert the corrected pages in the manual. The revisions are highlighted with asterisks. The affected service manual is:


MANUAL NUMBER PAGE

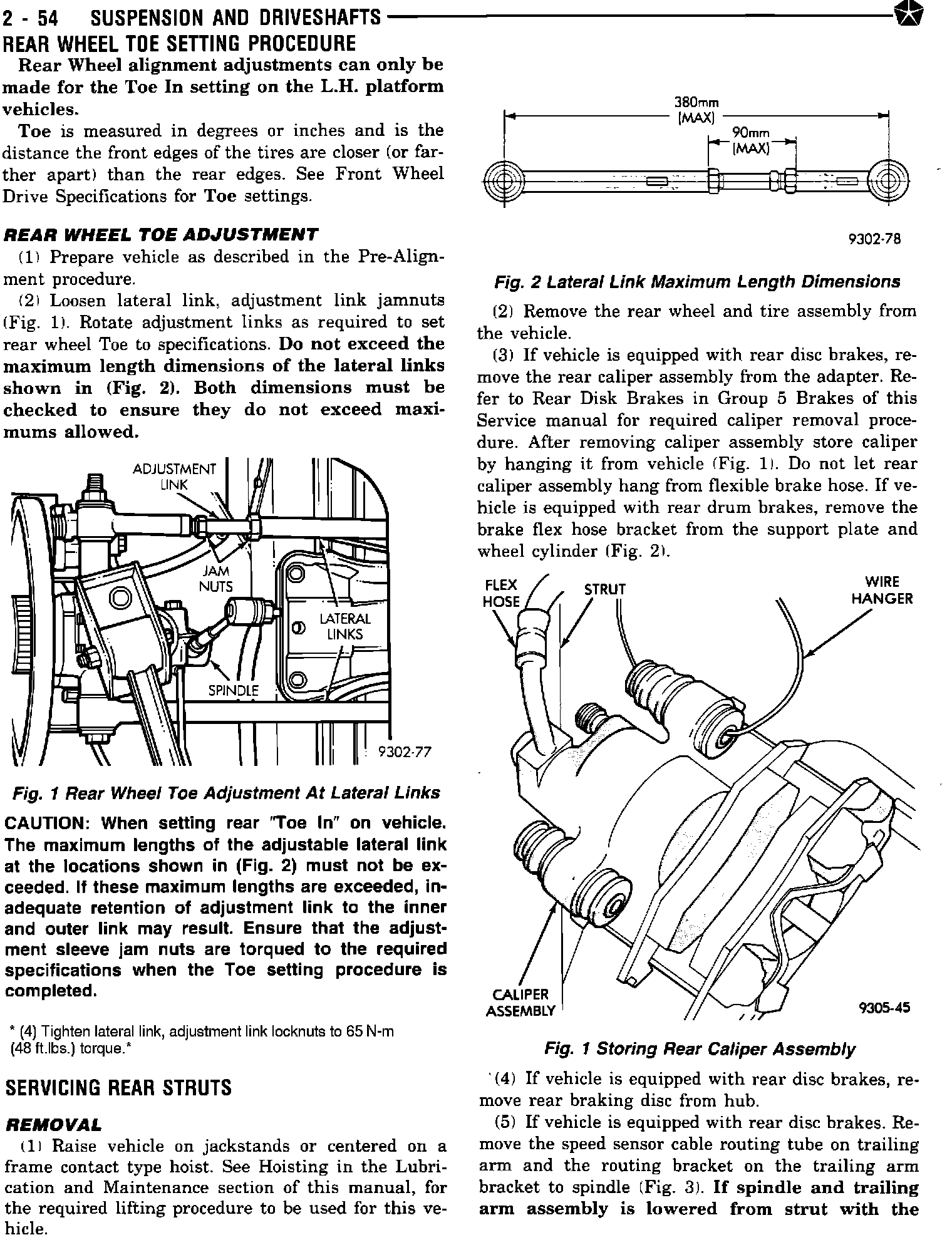

1993 Concorde/intrepid/Vision 81-270-3140 2-54, 2-71


POLICY:
Information only
