Home >> Eagle >> 1993 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Power Steering >> Power Steering Pump >> Application and ID

Power Steering Pump: Application and ID

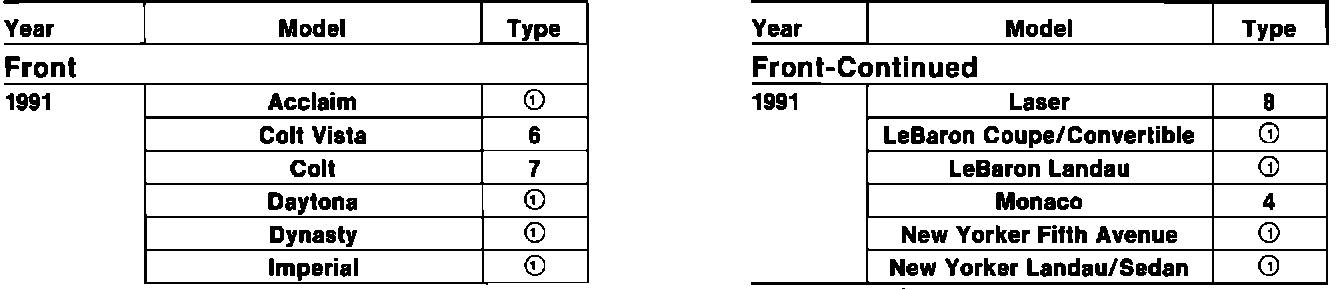

Power Steering Pump Application Chart Part 1 Of 2:

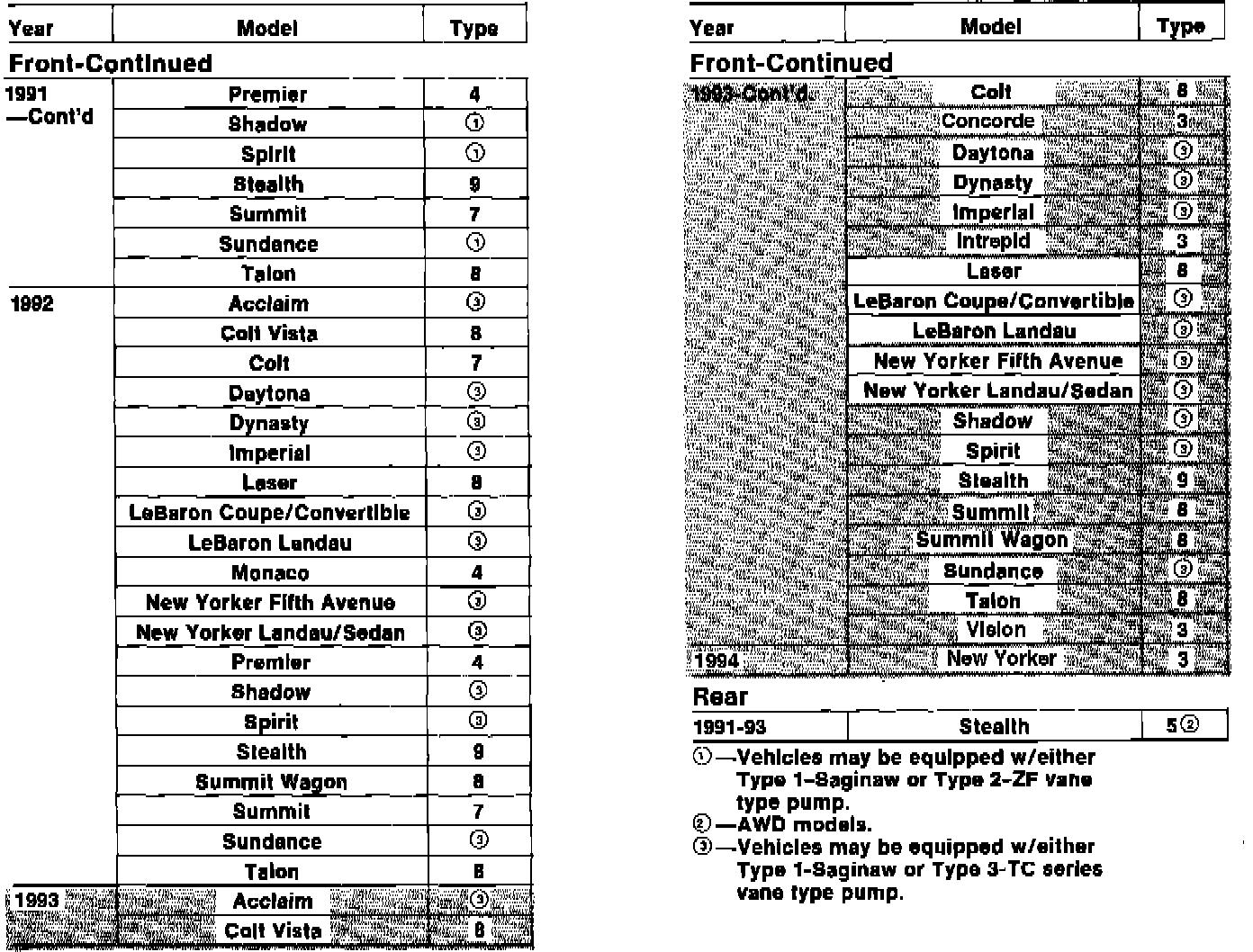

Power Steering Pump Application Chart Part 2 Of 2:



Power Steering Gear Application Chart Part 1 Of 2:
