Starter Solenoid Test

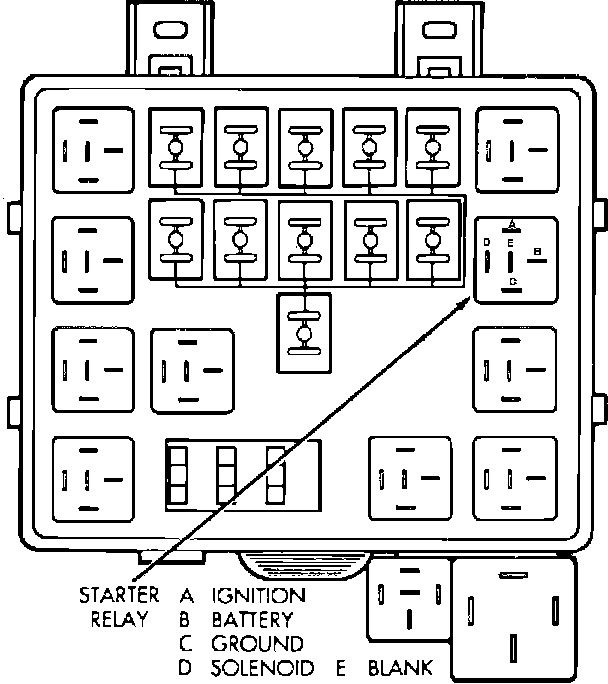

Fig. 3 - Starter Relay Terminal ID:

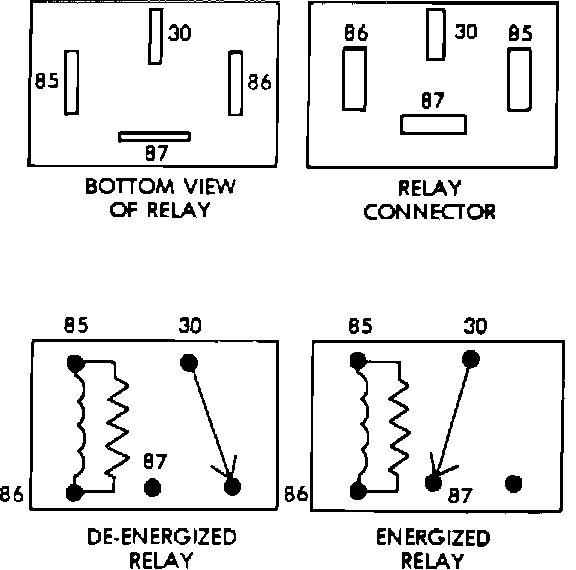

Fig. 4 - Starter Relay Terminal ID:

1. Verify battery is fully charged and in good condition.
2. Raise and support vehicle.
3. Inspect starter and starter solenoid for corrosion or loose wiring.
4. Lower vehicle.
5. Locate starter relay as follows:
a. On except Acclaim, LeBaron Landau, Sundance, Shadow and Spirit, the starter relay is located in the [1][2]power distribution center mounted near the LH strut tower.
b. On Acclaim, LeBaron Landau, Sundance, Shadow and Spirit, the starter relay is located on the front of the LH strut tower.
6. Remove starter relay from connector.
7. Connect a remote starter switch or a jumper wire between the battery positive post and terminal 87 on starter relay connector on except Concorde, Intrepid and Vision models, or between the battery positive post and terminal D on starter relay connector on Concorde, Intrepid and Vision models.
8. If engine cranks, starter and starter solenoid is operating correctly, perform starter relay test.
9. If engine does not crank or solenoid chatters, check wiring and connectors from relay to starter for loose or corroded connections.
10. Repeat test and, if engine still does not crank properly, repair or replace starter or starter solenoid as necessary.
