Home >> Eagle >> 1993 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Motor >> Testing and Inspection >> Starter Diagnosis

Starter Diagnosis

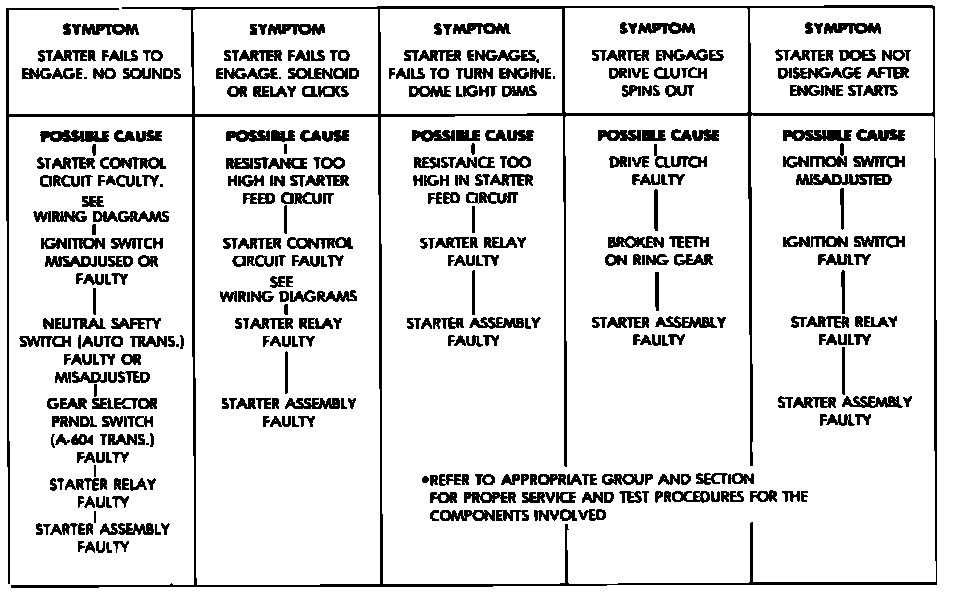

Fig. 3 Starter Motor Troubleshooting:
