Alternator Diagnosis

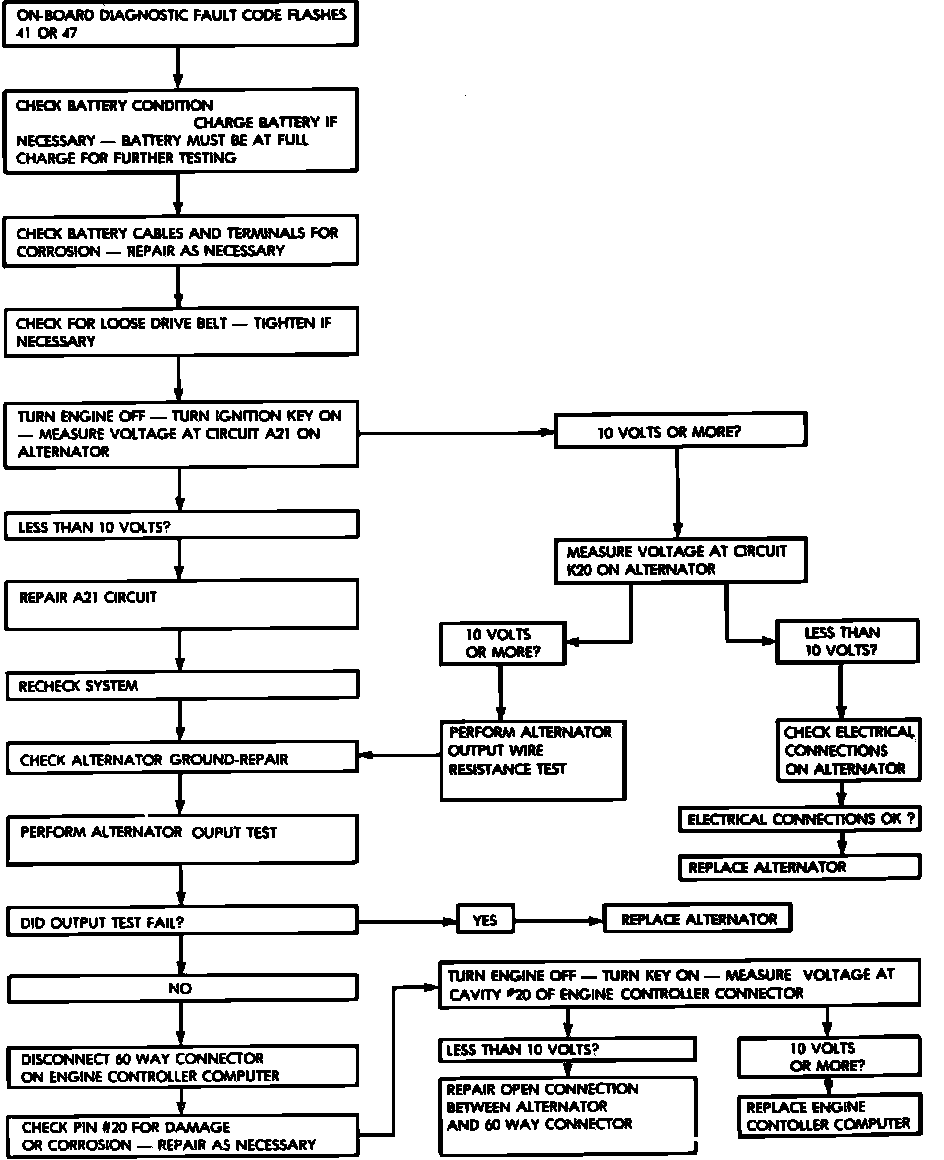

Fig. 34 Test Alternator Diagnosis (Part 1 Of 2):

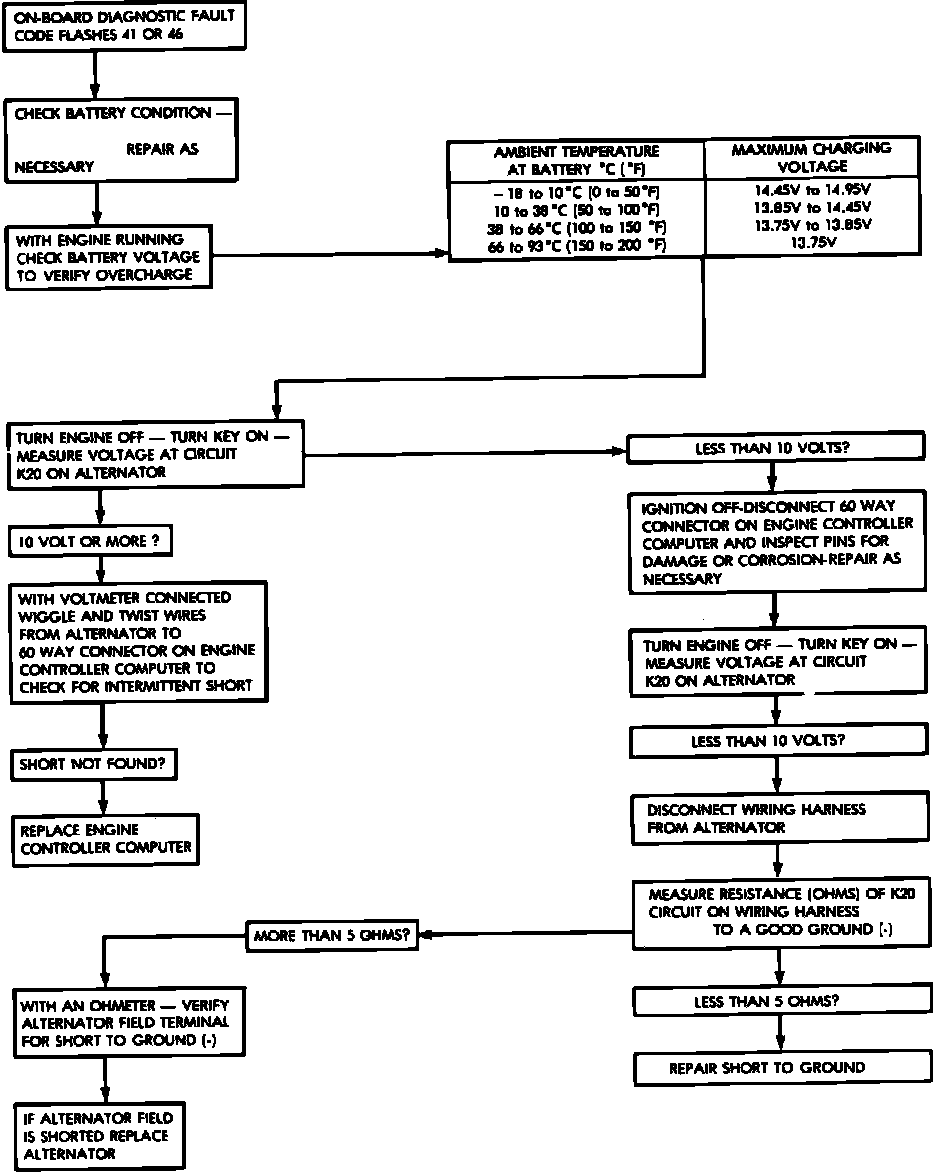

Fig. 34 Test Alternator Diagnosis (Part 2 Of 2):
