Seat Belt Bracket Rivet - Rusted

NO.:
23-29-92

GROUP:
Body

DATE:
Nov. 16, 1992



SUBJECT:
Rusty Seat Belt Bracket Rivet



MODELS:

1993 (LH) Concorde/Intrepid/Vision


DISCUSSION:

Vehicles built before September 1992 may exhibit a rust condition on the seat belt bracket to track attaching rivet. This condition is visible to a passenger in the rear seat when the front seat is in the forward position.


PARTS REQUIRED:

1 Touch-up paint primer 4443636
1 Touch-up paint (black) 2809785


REPAIR PROCEDURE:

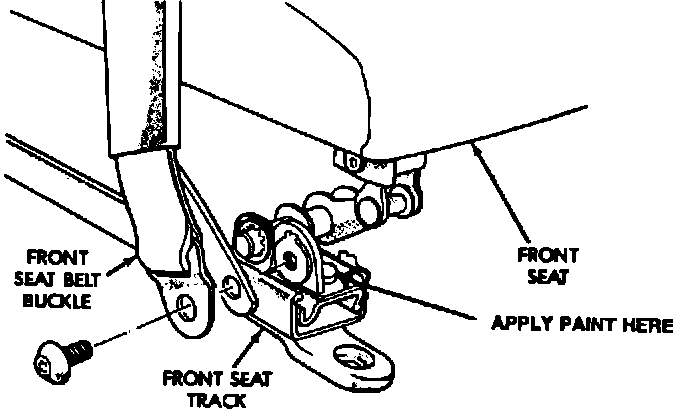

This repair involves painting the seat belt bracket rivet.





1. Move the front seats to the forward most position.

2. Clean any corrosion from the rivet surface.

3. Apply Mopar touch-up paint primer and color per instructions on the container.



POLICY:
Reimbursable within the provisions of the warranty.


TIME ALLOWANCE:
Labor Operation No.

Rusty Seat Belt Bracket Rivet 23-13-01-90.......0.2 Hrs.


FAILURE CODE:
XX - Service Adjustments
