Figure 3
Figure 3

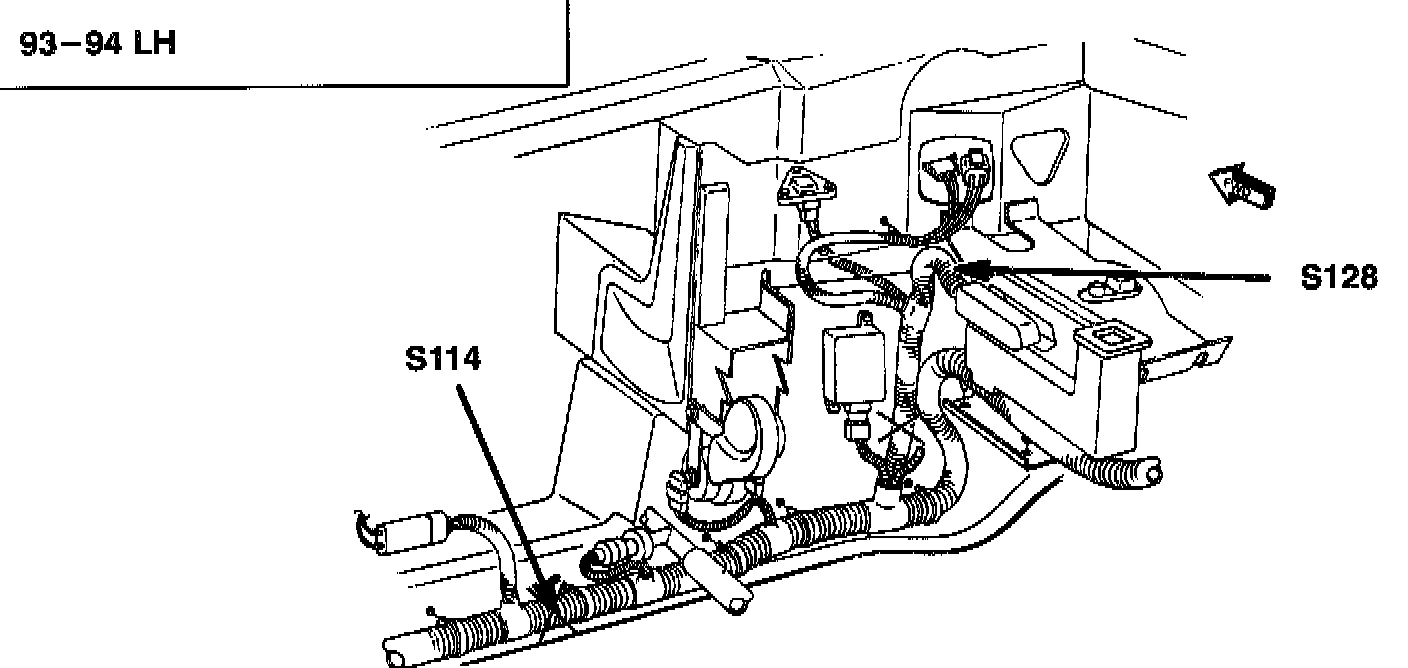

93 - 94 ALL S114, S128:

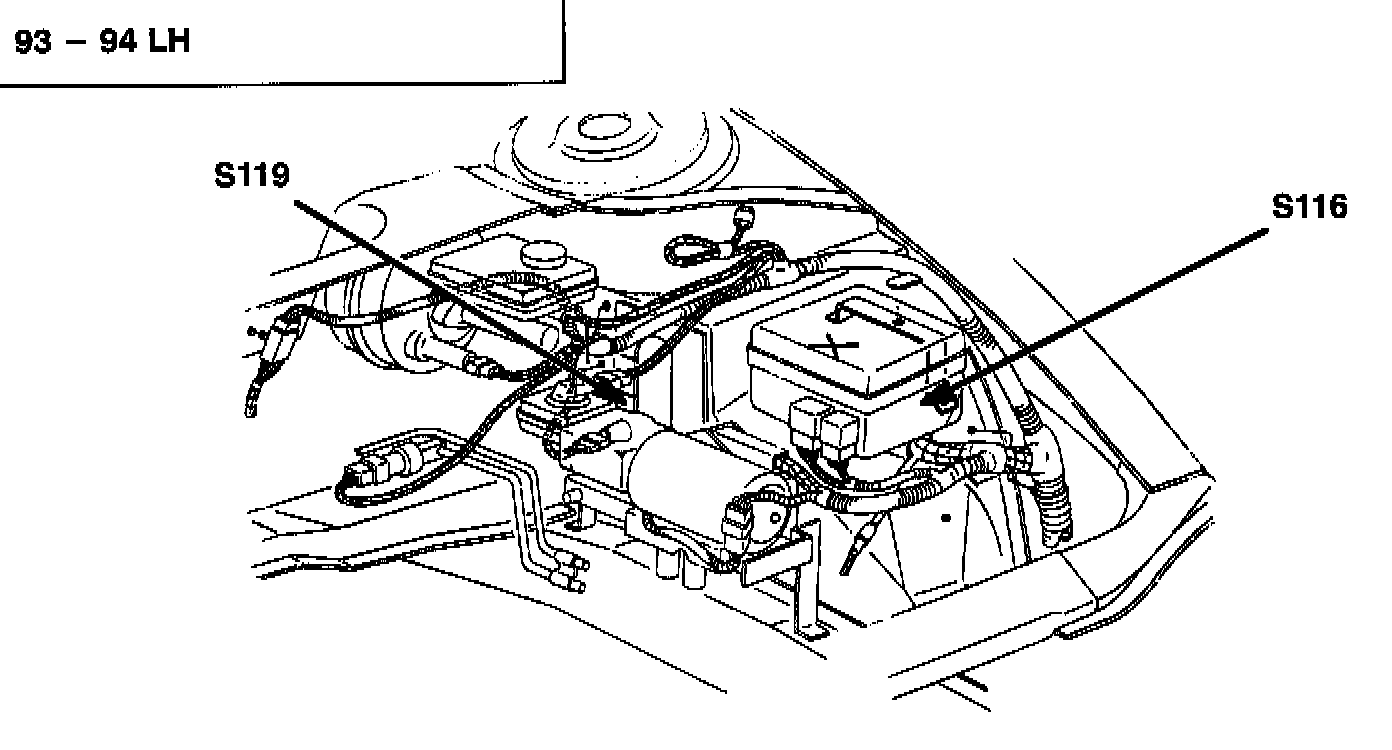

93 - 94 All S116, S119:

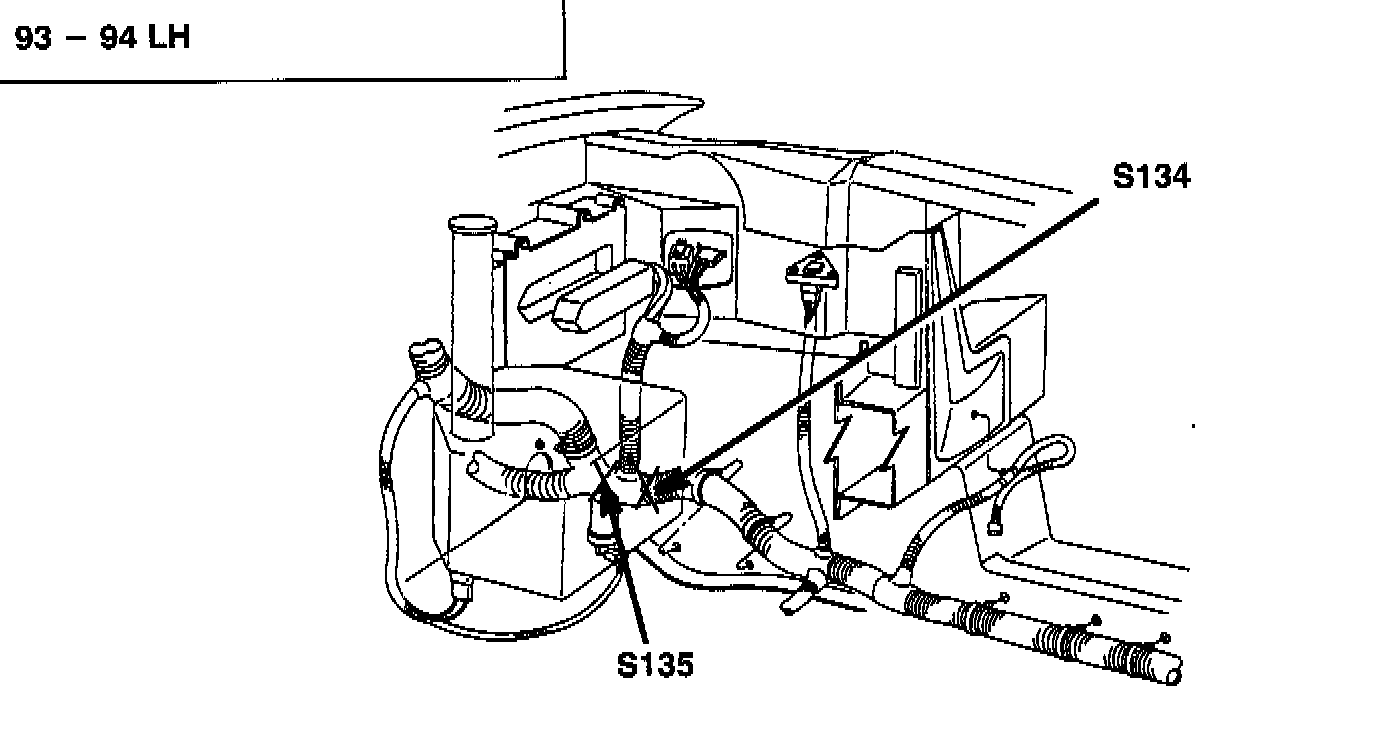

93 - 94 All S134, S135:
Engine Compartment Splices:

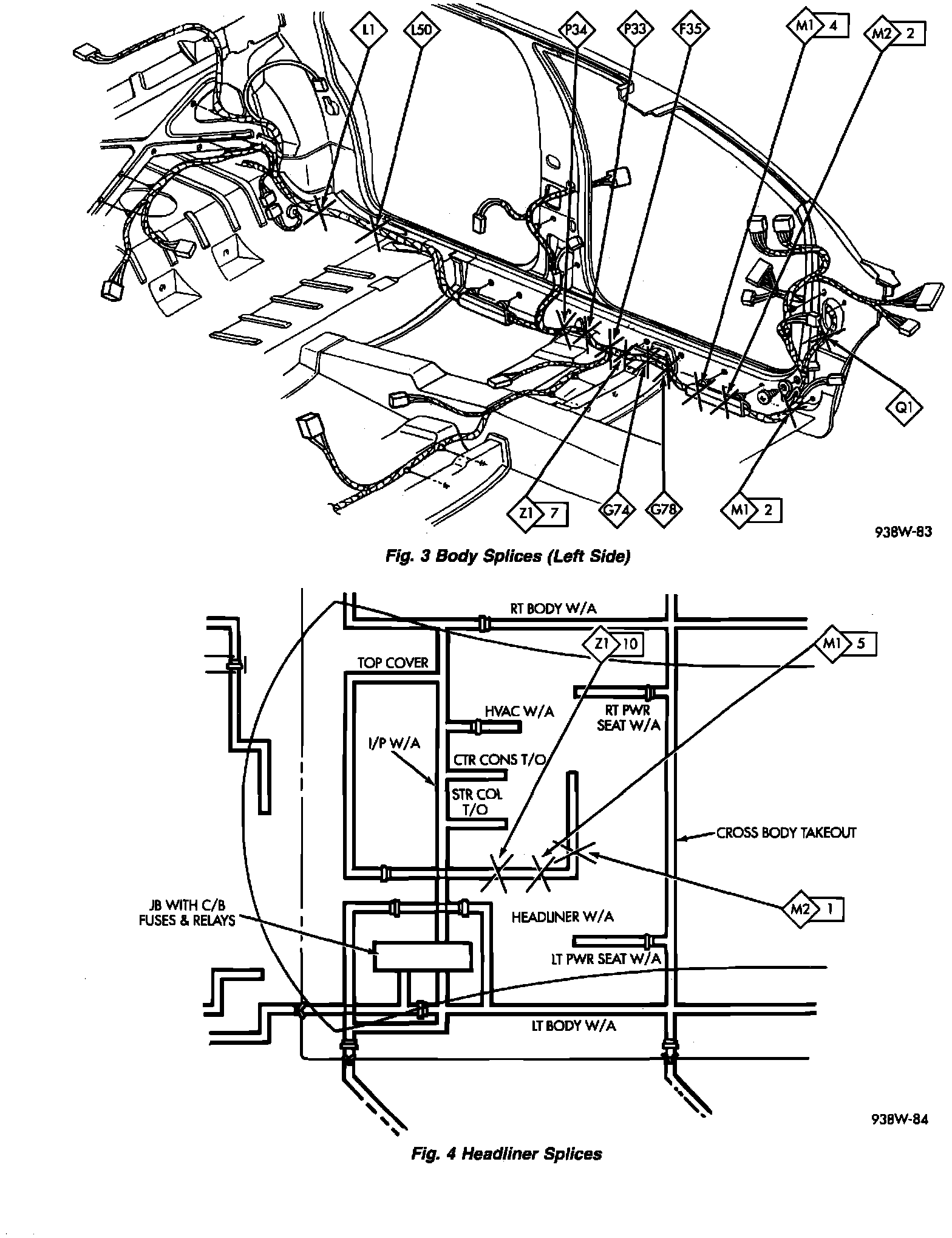

Fig. 3 - Fig. 4:
