Home >> Eagle >> 1993 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Front End Lighting >> With Daytime Running Lights

With Daytime Running Lights

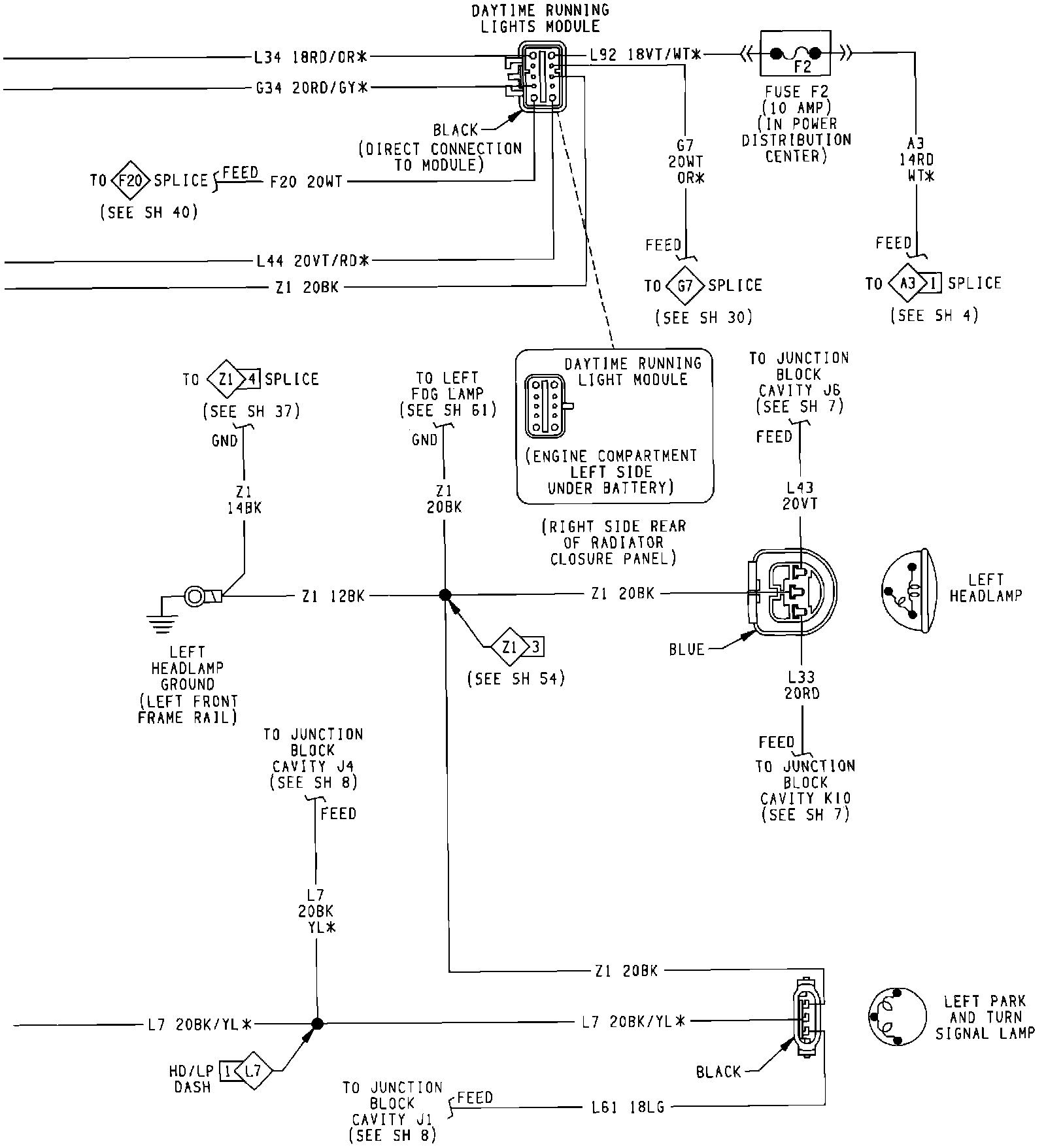

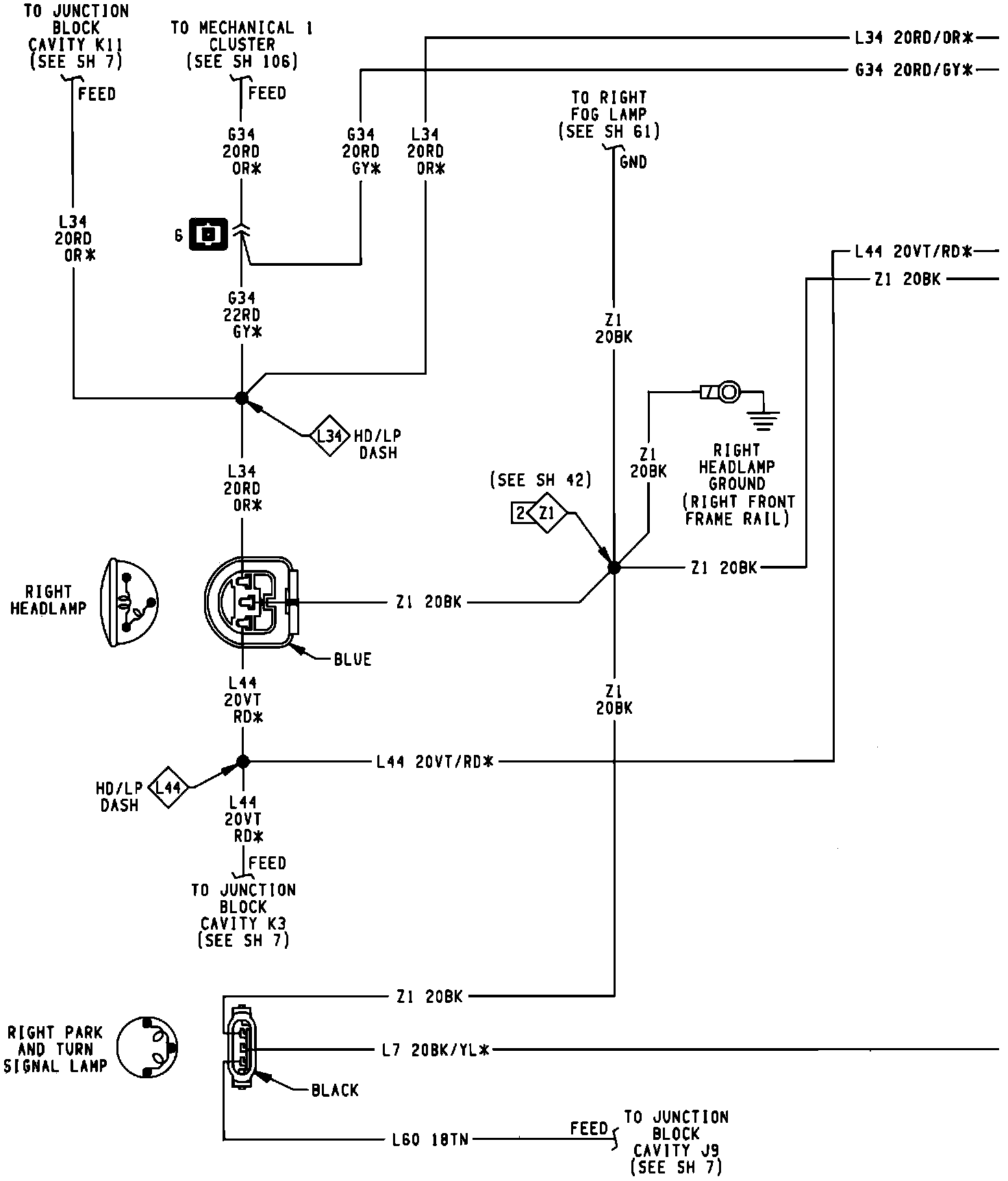

Front End Lighting With Daytime Running Lamps:



Front End Lighting With Daytime Running Lamps:
