With Automatic Temperature Control (ATC)

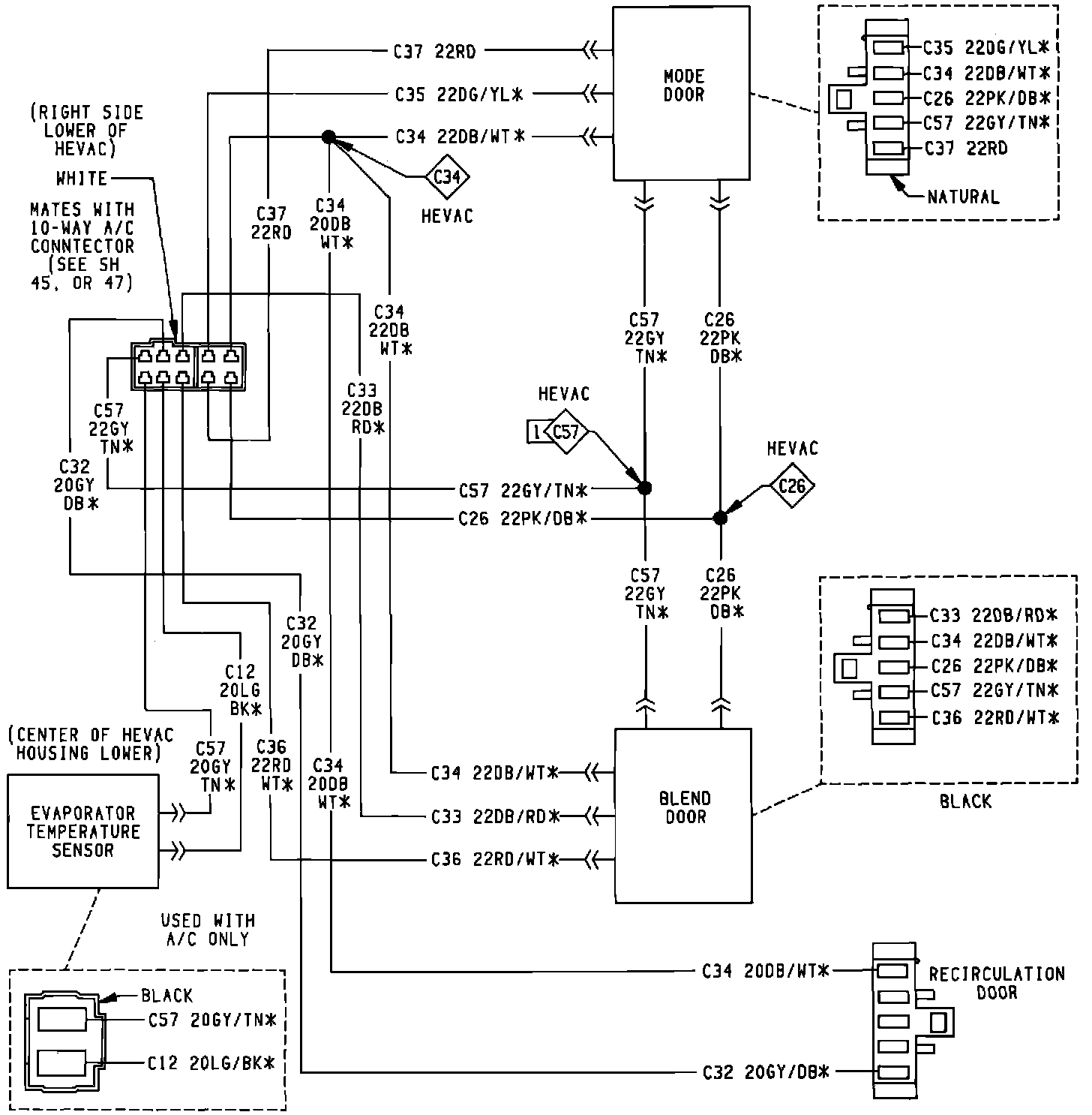

With Automatic Temperature Control:

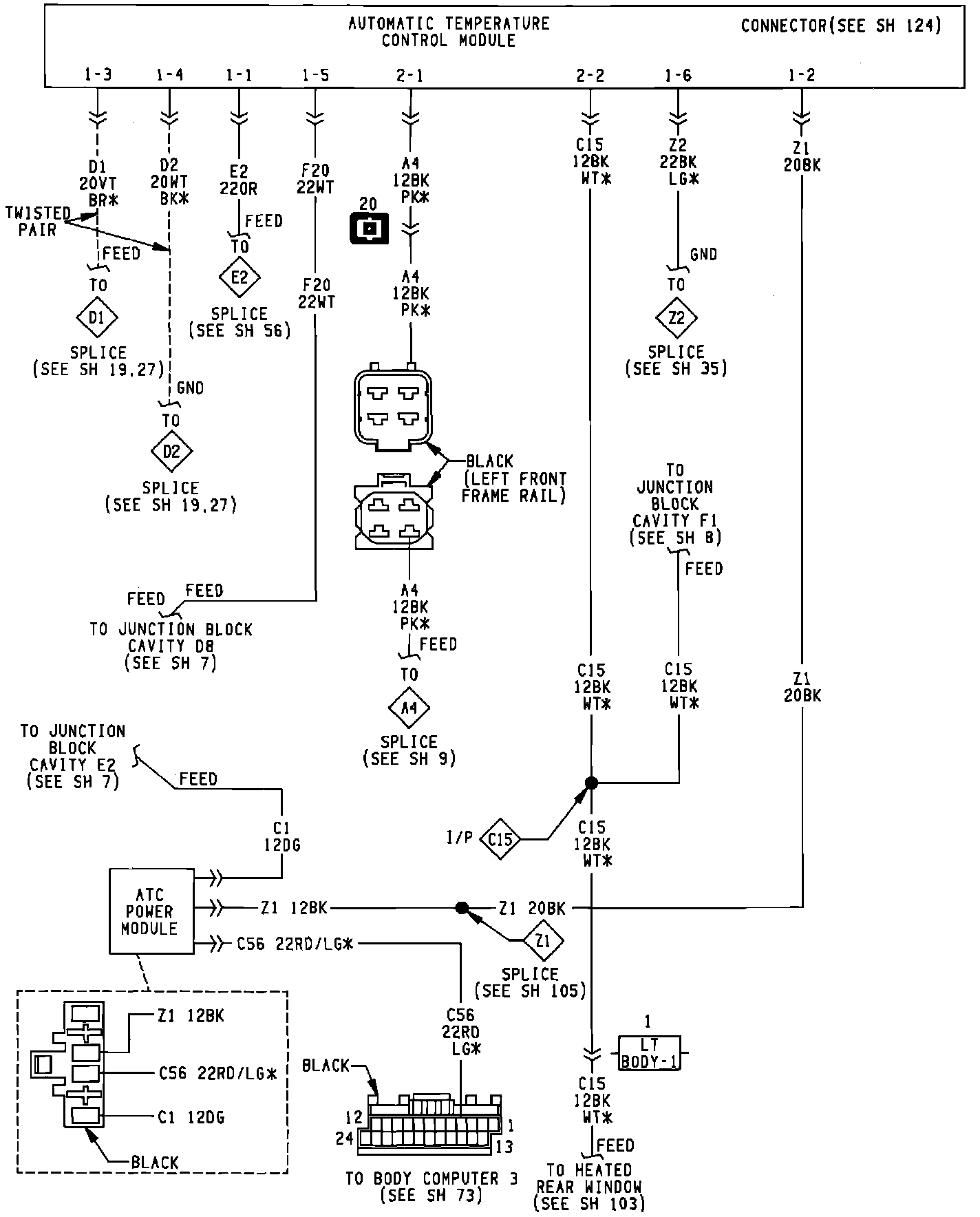

With Automatic Temperature Control:



With Automatic Temperature Control:
