Deck Lid Torsion Bar - Disengagement From Bracket
NO.: 23-38-92GROUP: Body
DATE: Dec. 14, 1992
SUBJECT:
Deck Lid Torsion Bar Disengagement
MODELS:
1993 (LH) Concorde/Intrepid/Vision
SYMPTOM/CONDITION:
The deck lid torsion bars may become disengaged from the retaining bracket. This may be caused by luggage pressed against the bars during loading.
PARTS REQUIRED:
1 Tie Strap 6015756
REPAIR PROCEDURE:

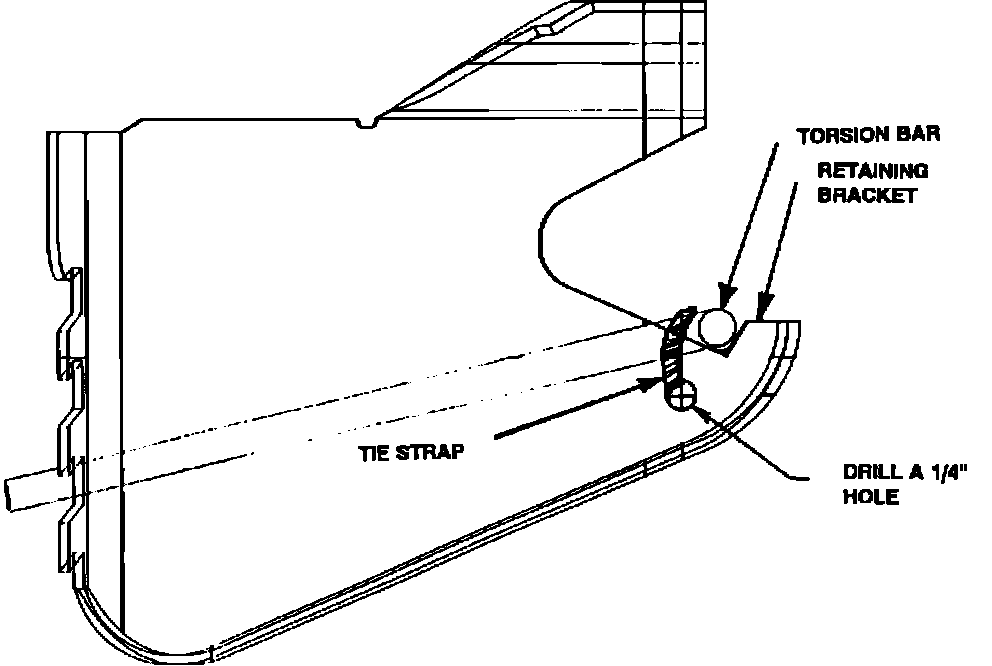

This procedure involves tie strapping the deck lid torsion bars to the retaining bracket.
1. Drill a 1/4" hole in the torsion bar bracket directly below the surface on which the bar rests.
2. Install the bar on the bracket (if displaced).
3. Install a tie strap through the drilled hole, then around the bar.
POLICY:
Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:
Labor Operation No. 23-40-05-90 0.3 Hrs.
FAILURE CODE: XX - Service Adjustment
