Home >> Eagle >> 1993 >> Vision V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control No Fault (SC-NF) Tests >> SC-NF-6 Brake Switch Sense Circuit Short to Ground

SC-NF-6 Brake Switch Sense Circuit Short to Ground

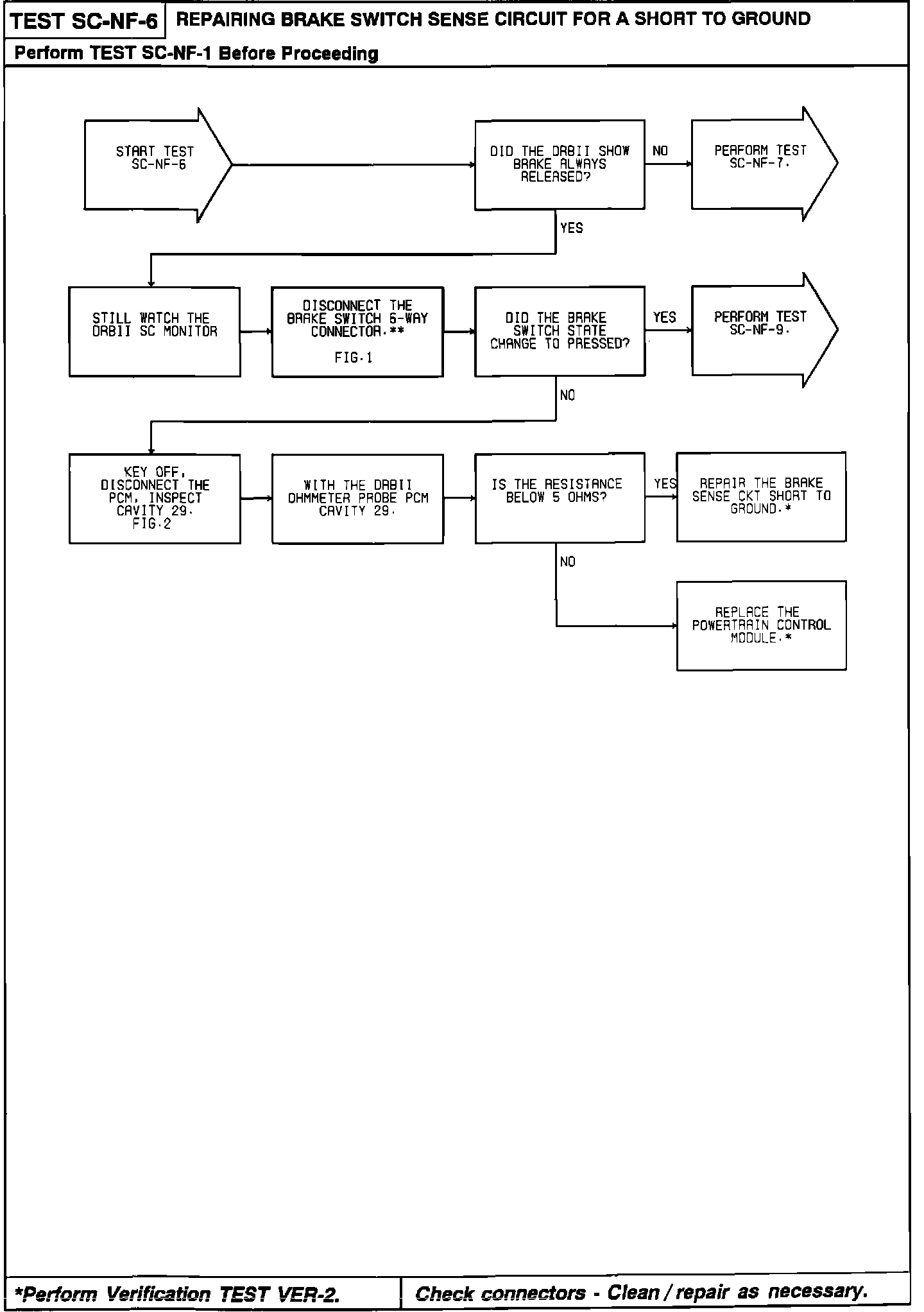

Test SC-NF-6 - Repairing Brake Switch Sense Circuit For A Short To Ground (Part 1 Of 1):

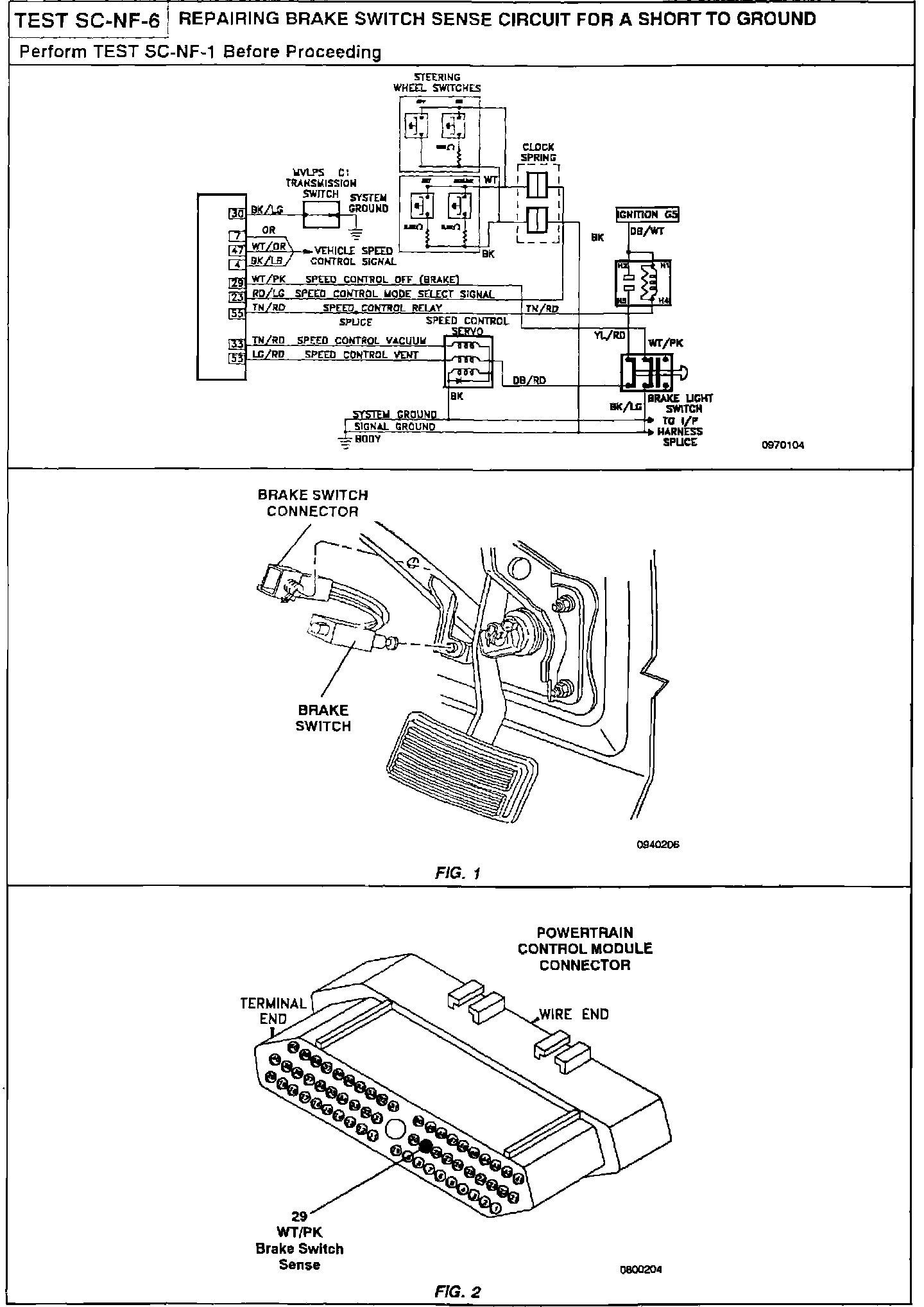

Test SC-NF-6 - Repairing Brake Switch Sense Circuit For A Short To Ground (Part 1 Of 1):
