Eagle
>>
1993
>>
Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Speed Control No Fault (SC-NF) Tests
>>
SC-NF-3 Checking S/C Servo Vacuum & Actuation
SC-NF-3 Checking S/C Servo Vacuum & Actuation

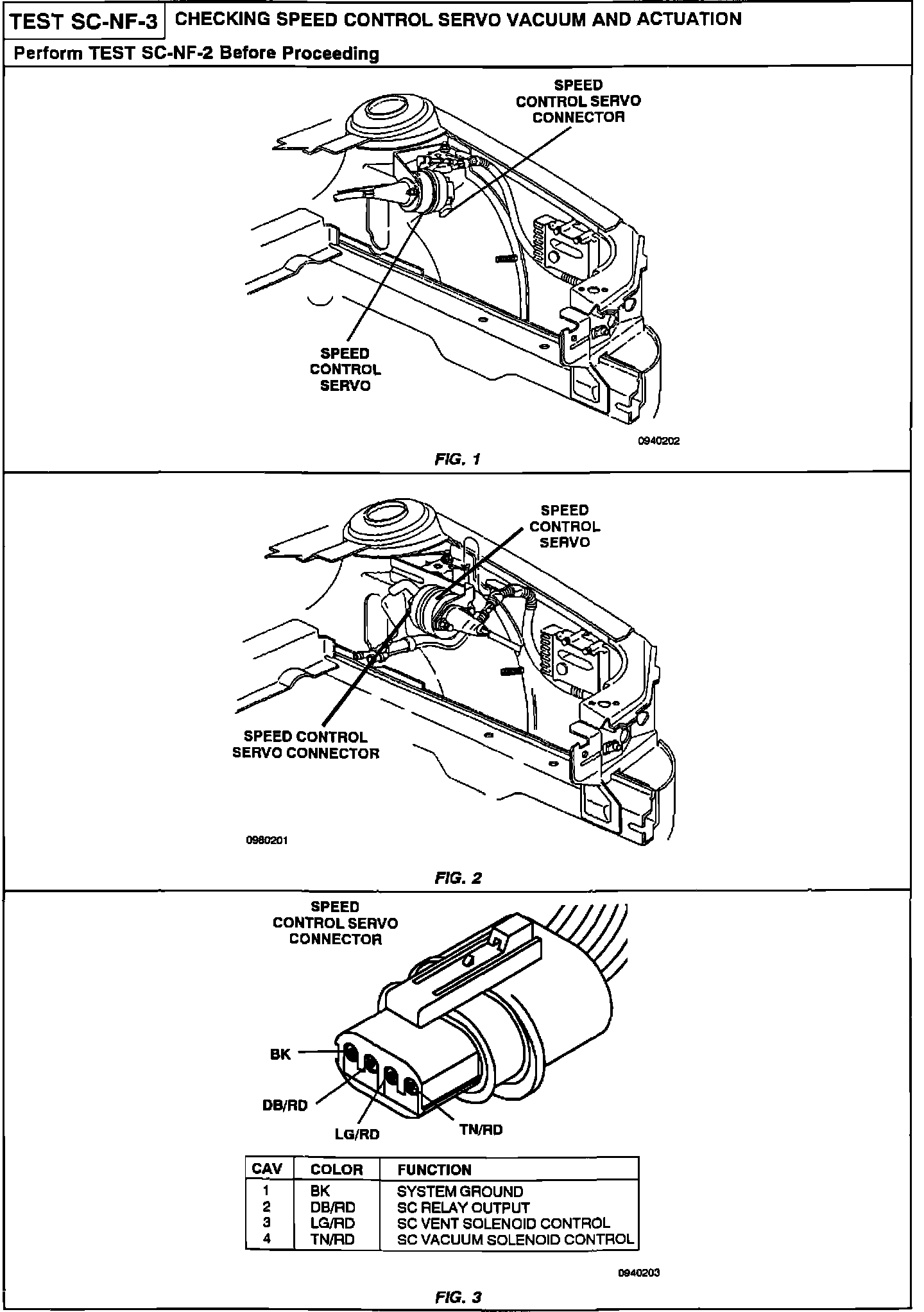

Test SC-NF-3 - Checking Speed Control Servo Vacuum & Actuation (Part 1 Of 1):

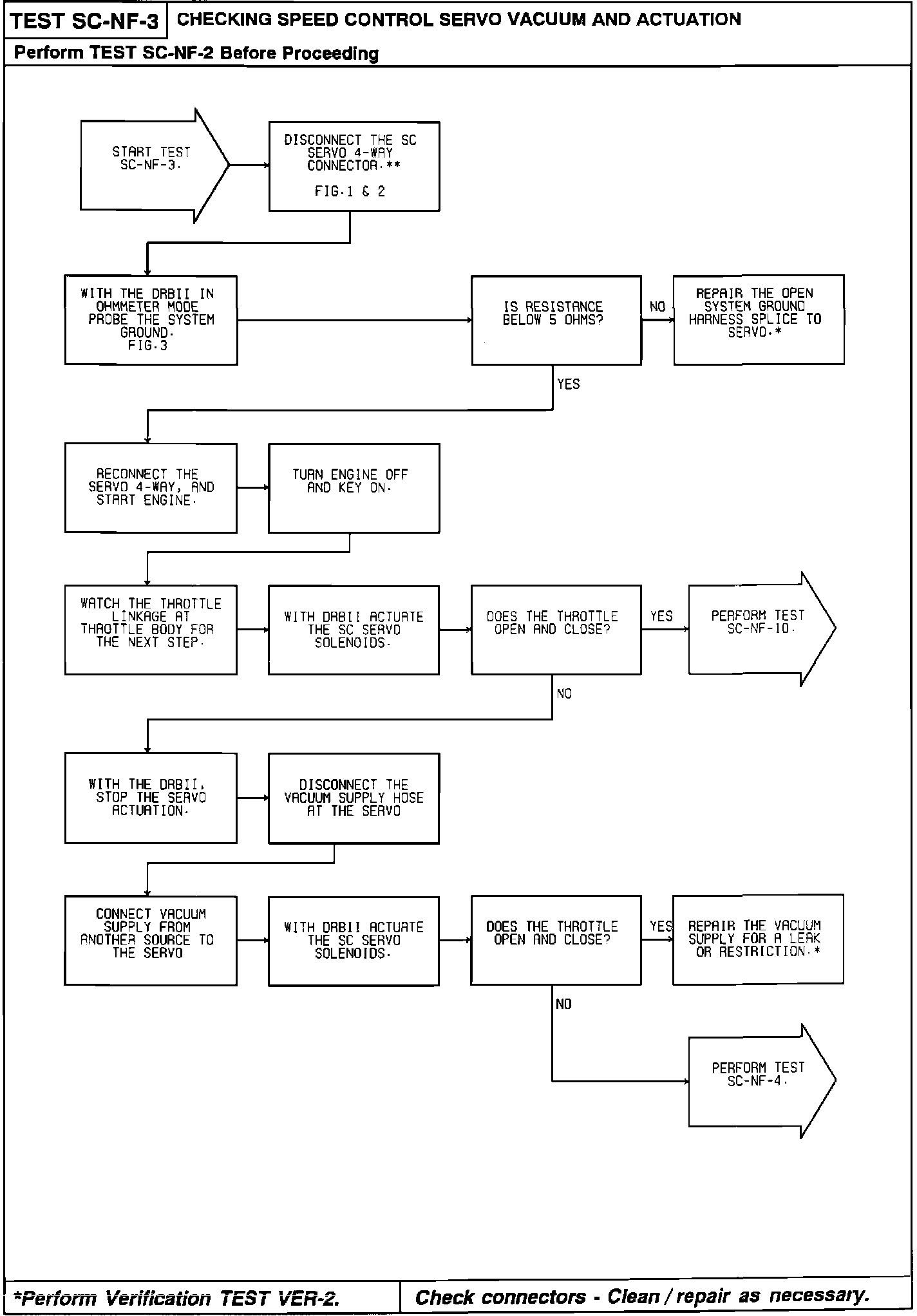

Test SC-NF-3 - Checking Speed Control Servo Vacuum & Actuation (Part 1 Of 1):
