Home >> Eagle >> 1993 >> Vision V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SC) Tests >> SC-52B Repairing Speed Control Solenoid Circuits

SC-52B Repairing Speed Control Solenoid Circuits

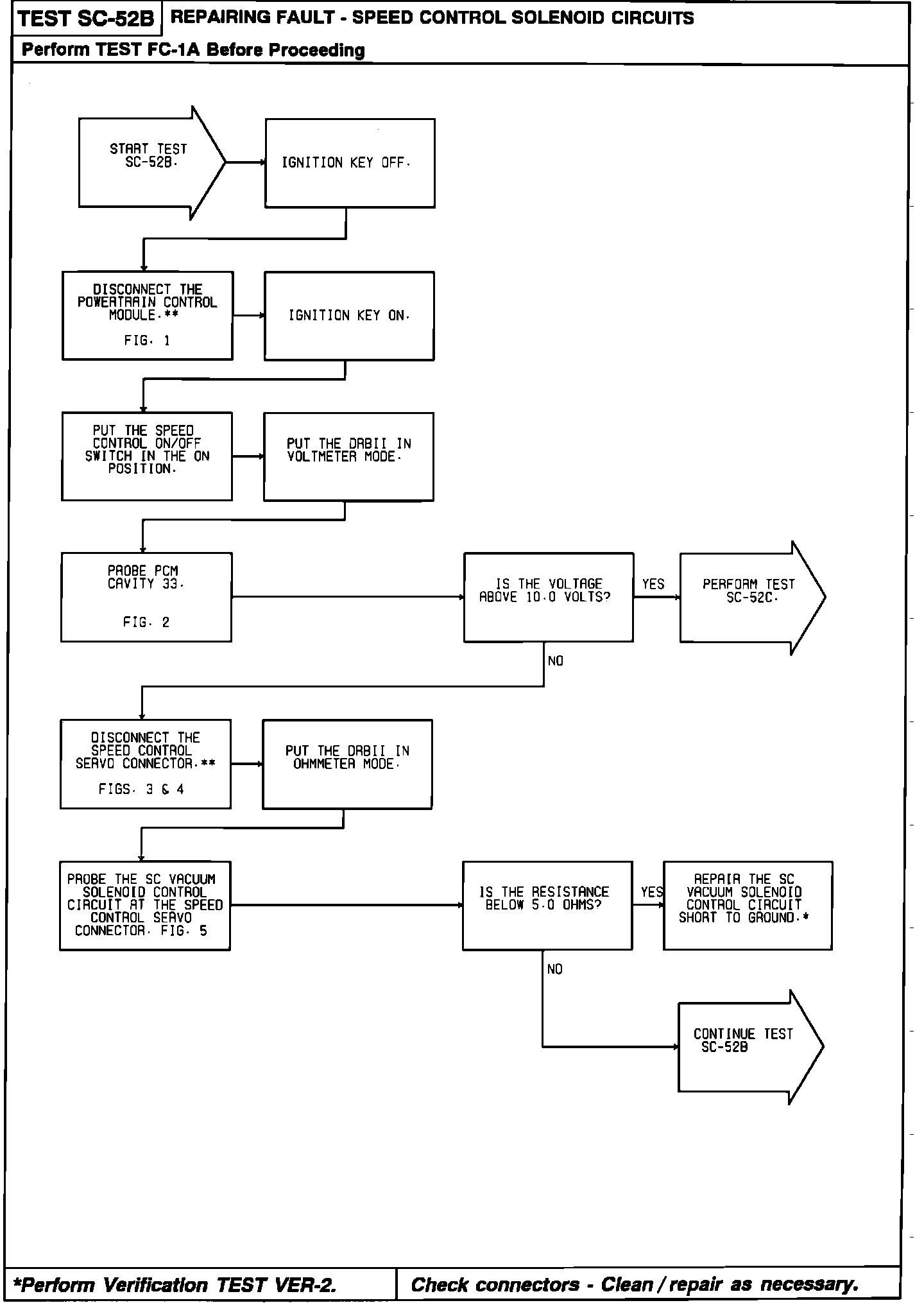

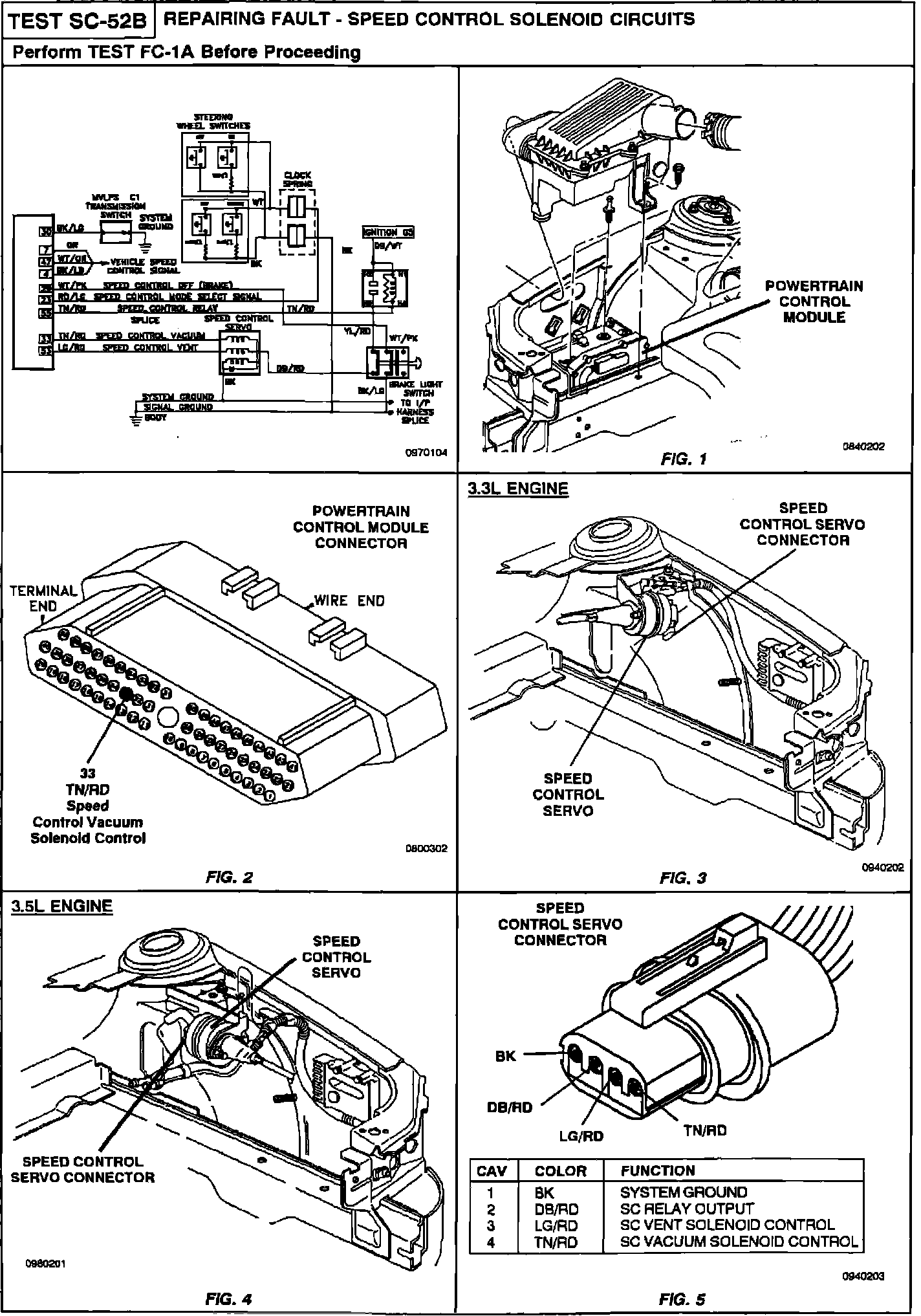

Test SC-52B - Repairing "Speed Control Solenoid Circuits" Fault (Part 1 Of 2):



Test SC-52B - Repairing "Speed Control Solenoid Circuits" Fault (Part 1 Of 2):

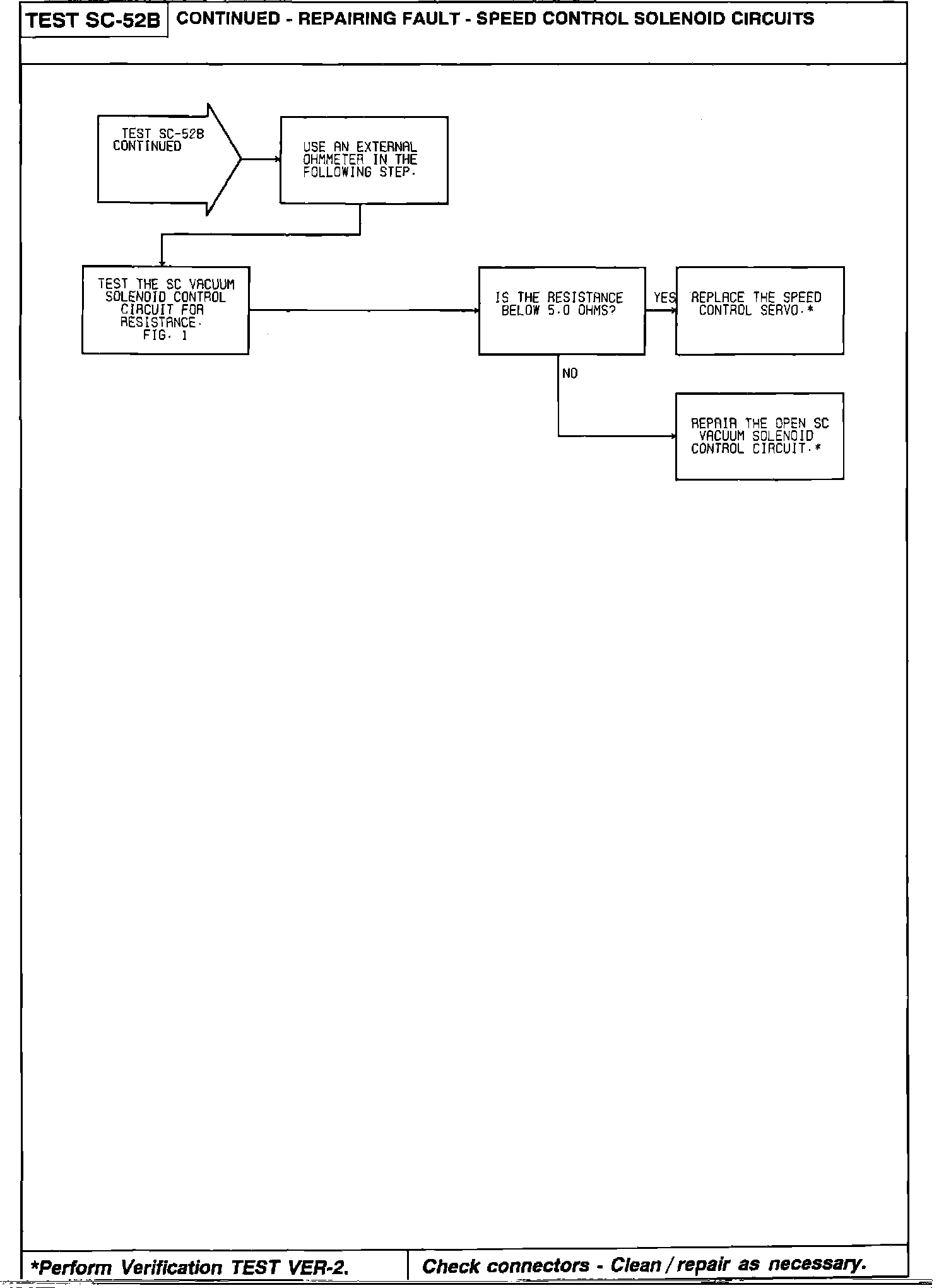

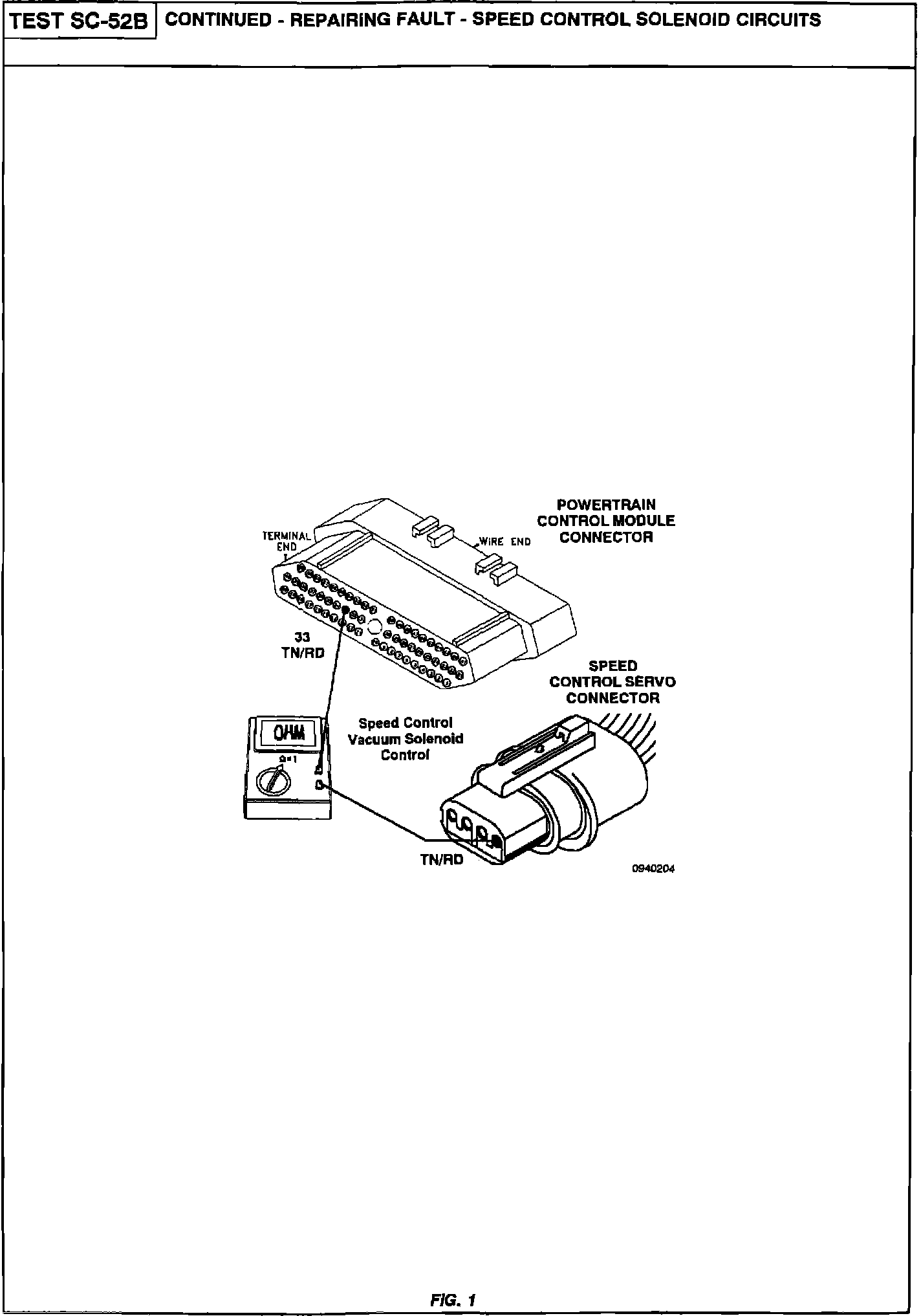

Test SC-52B - Repairing "Speed Control Solenoid Circuits" Fault (Part 2 Of 2):



Test SC-52B - Repairing "Speed Control Solenoid Circuits" Fault (Part 2 Of 2):
