SC-52A Repairing Speed Control Solenoid Circuits

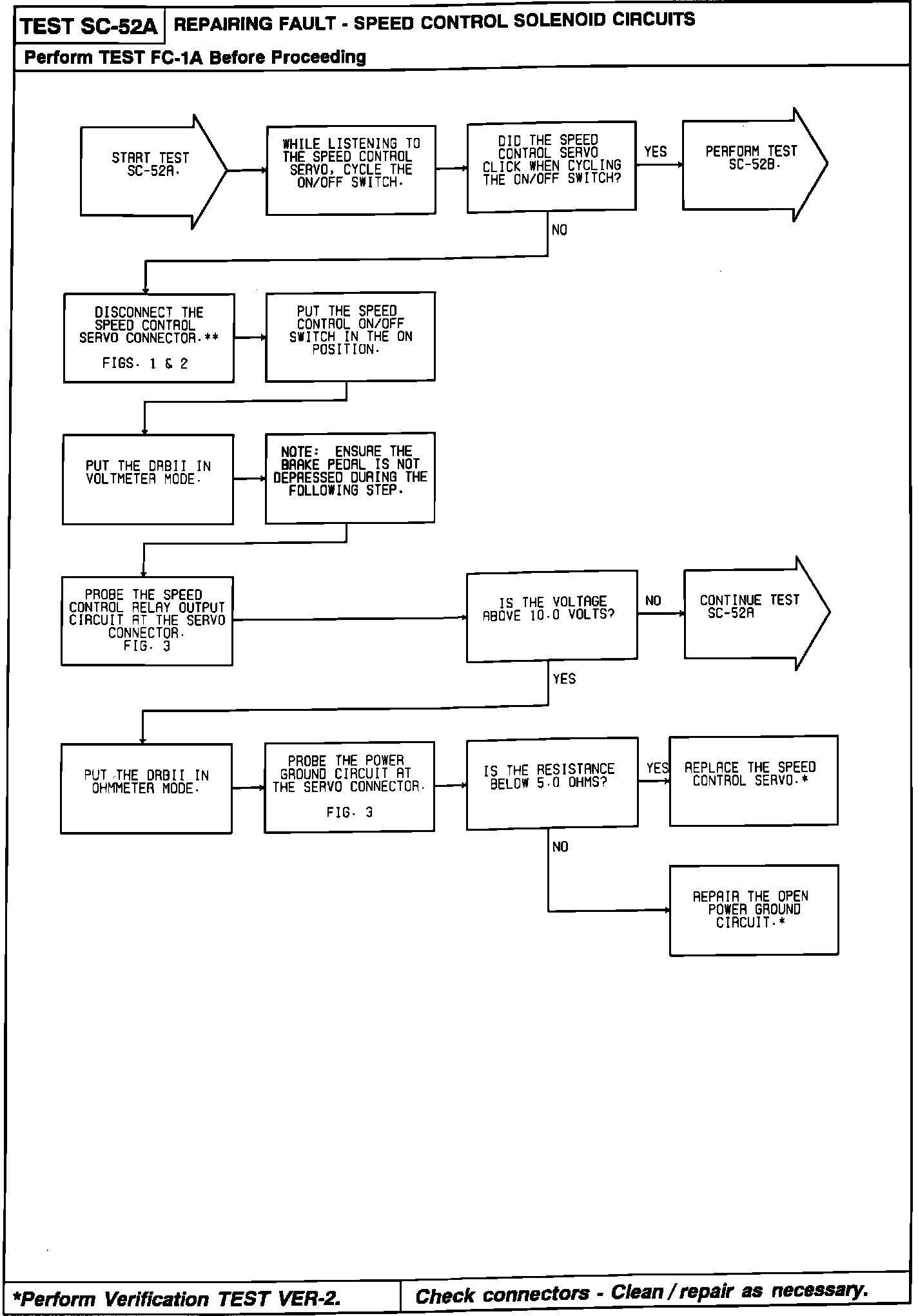

Test SC-52A - Repairing "Speed Control Solenoid Circuits" Fault (Part 1 Of 2):



Test SC-52A - Repairing "Speed Control Solenoid Circuits" Fault (Part 1 Of 2):

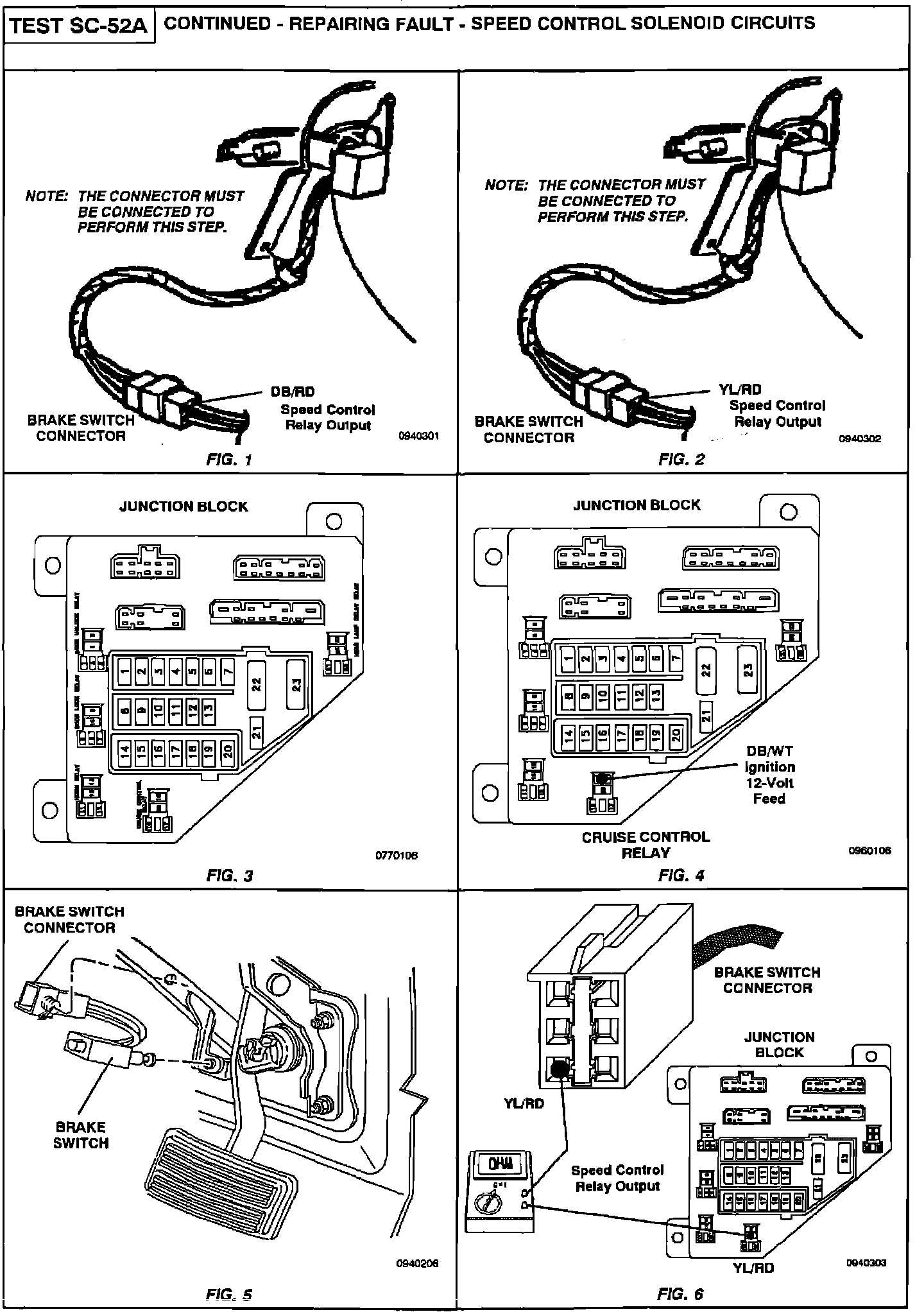

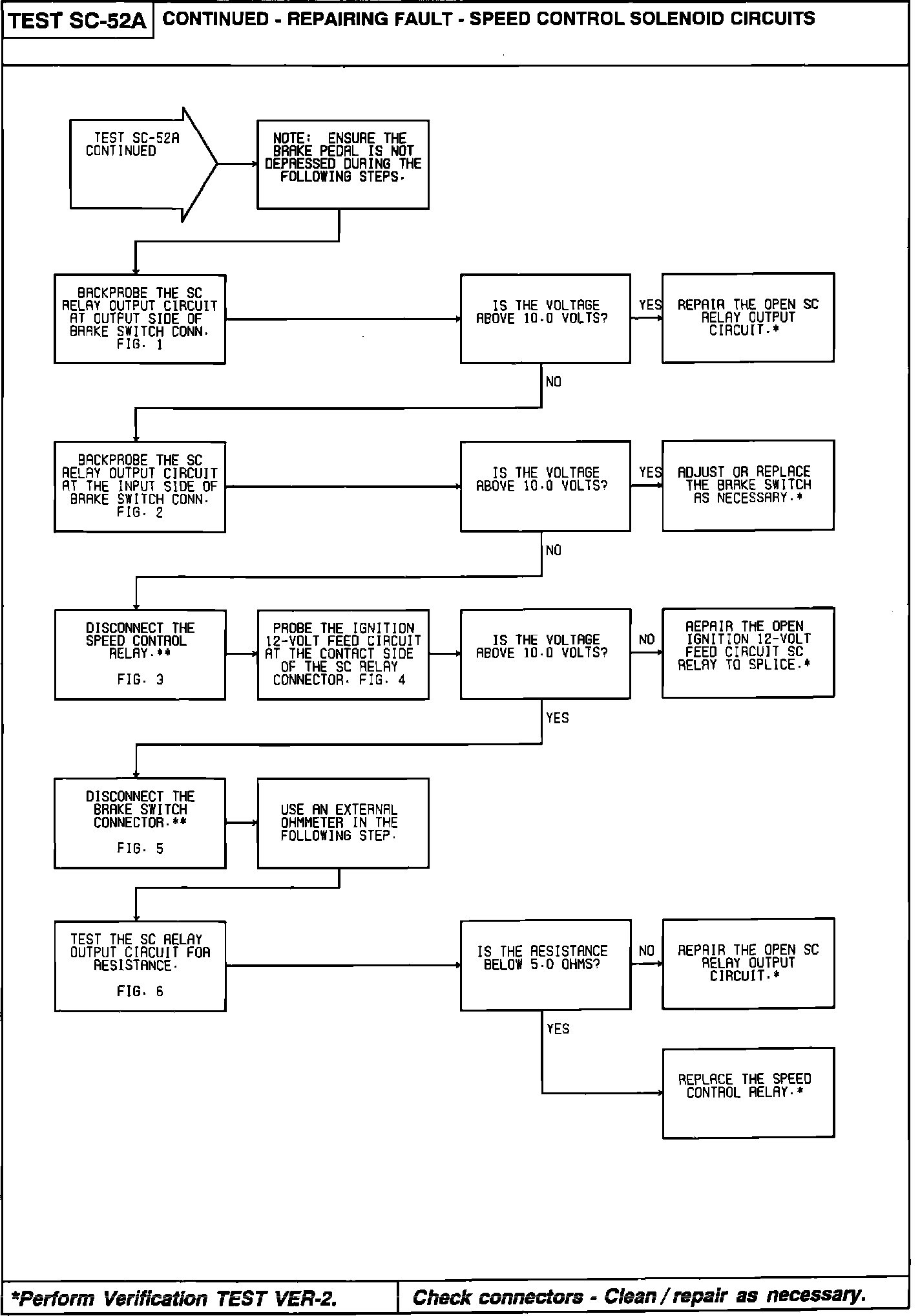

Test SC-52A - Repairing "Speed Control Solenoid Circuits" Fault (Part 2 Of 2):



Test SC-52A - Repairing "Speed Control Solenoid Circuits" Fault (Part 2 Of 2):
