1E Repairing Cartridge Error Failure

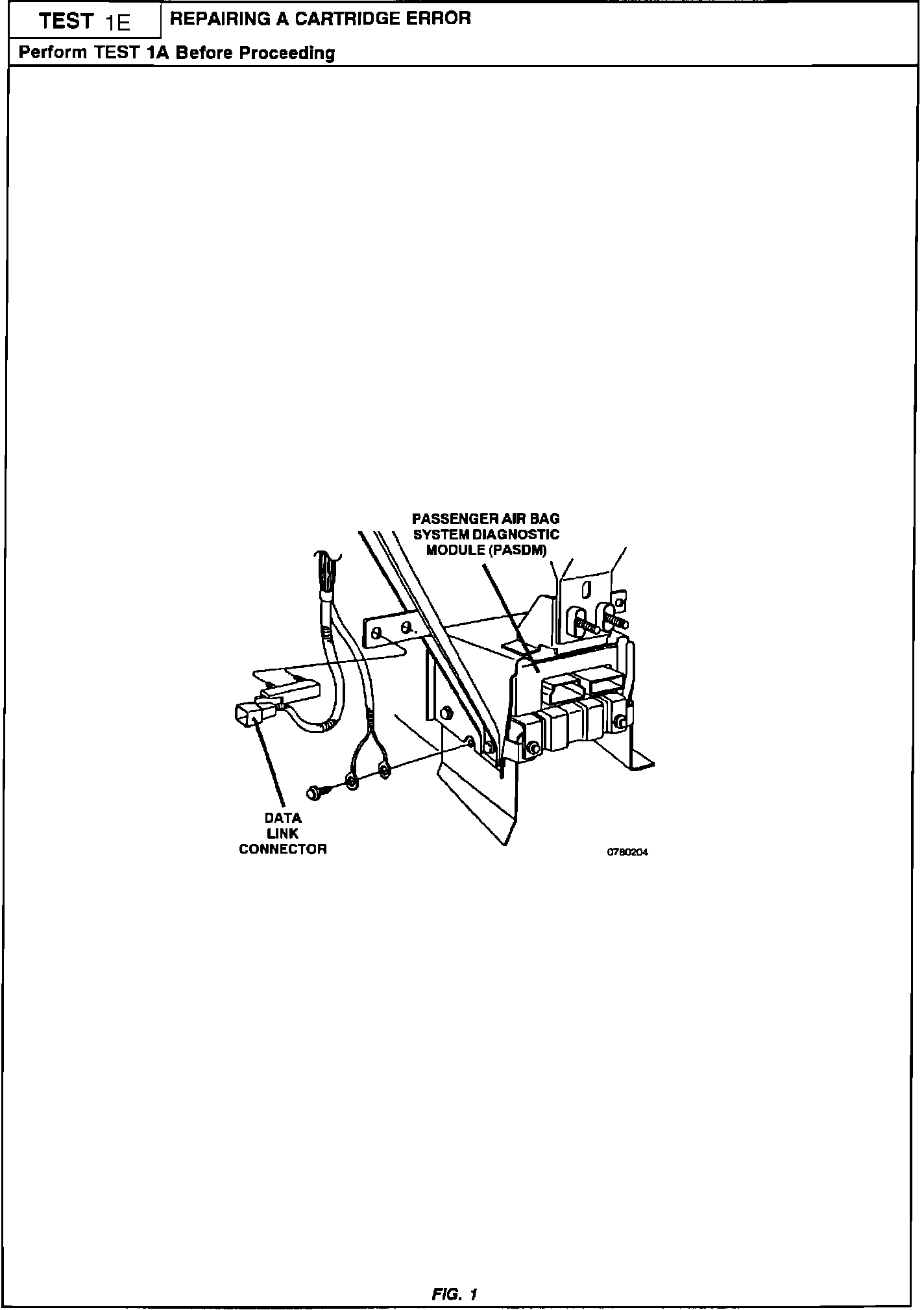

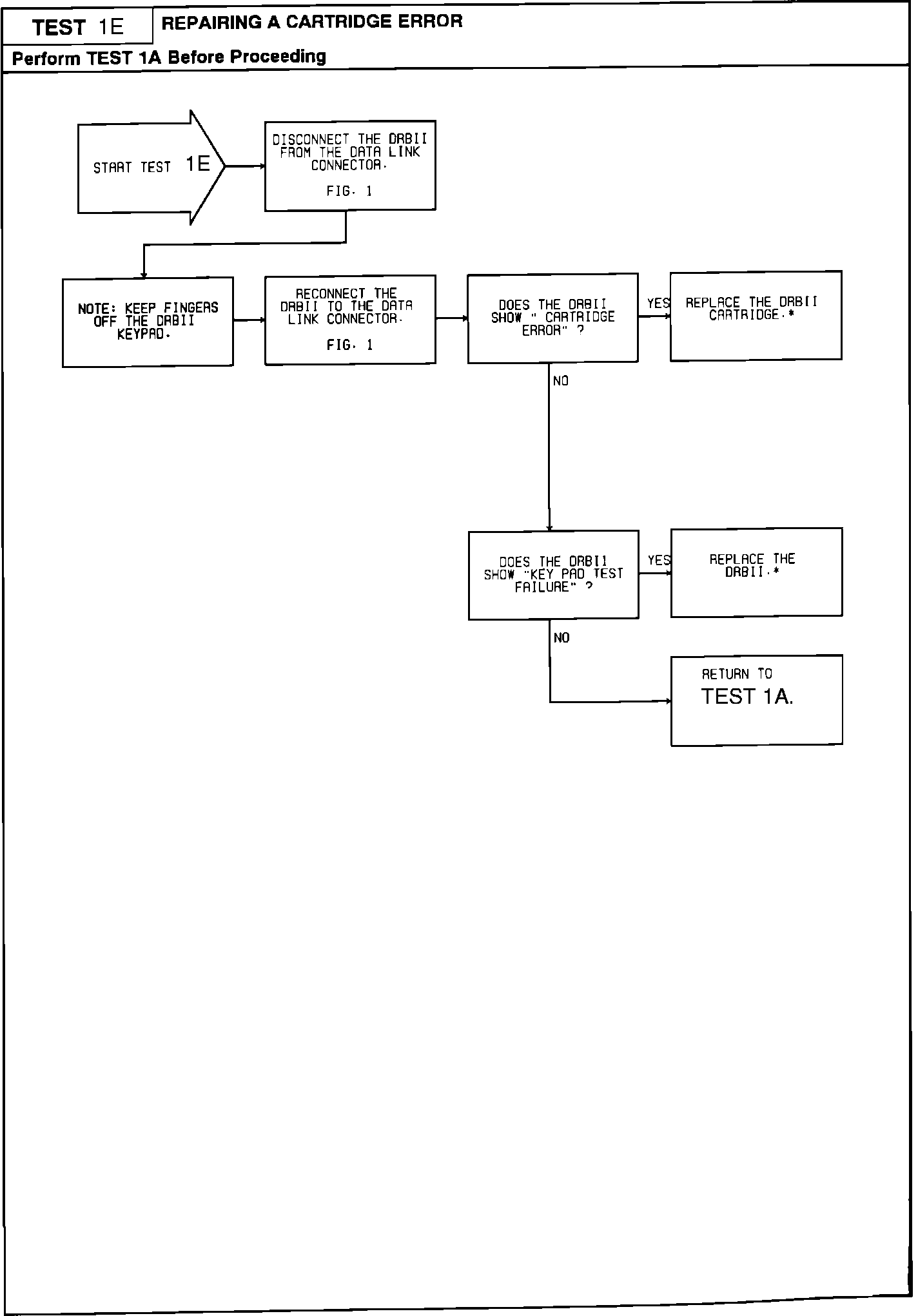

Test 1E - Repairing Cartridge Error:

Test 1E - Repairing Cartridge Error:
