Talon FWD L4-1997cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
Tightening Specifications
>>
Misc. Engine Components
Misc. Engine Components

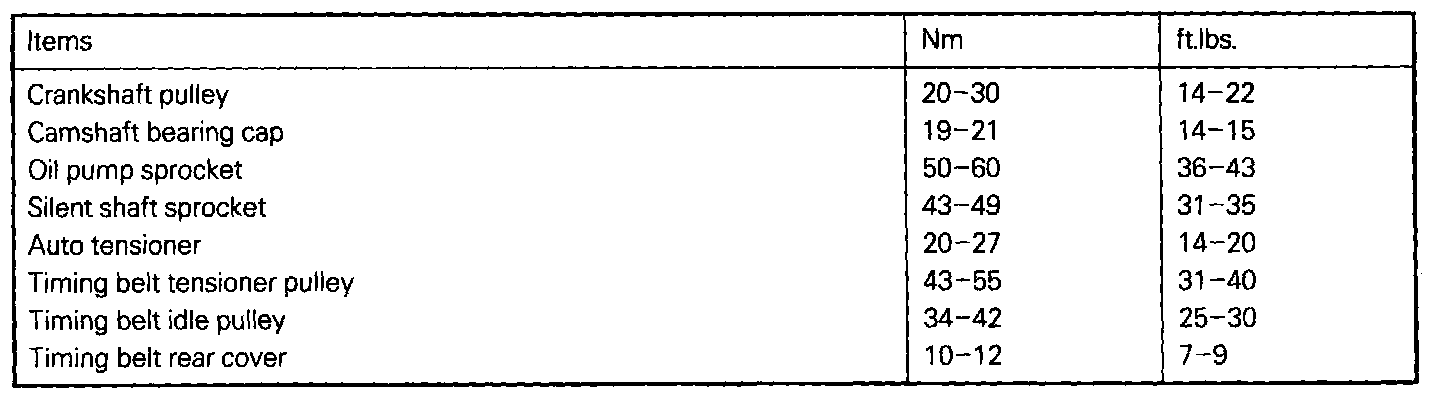

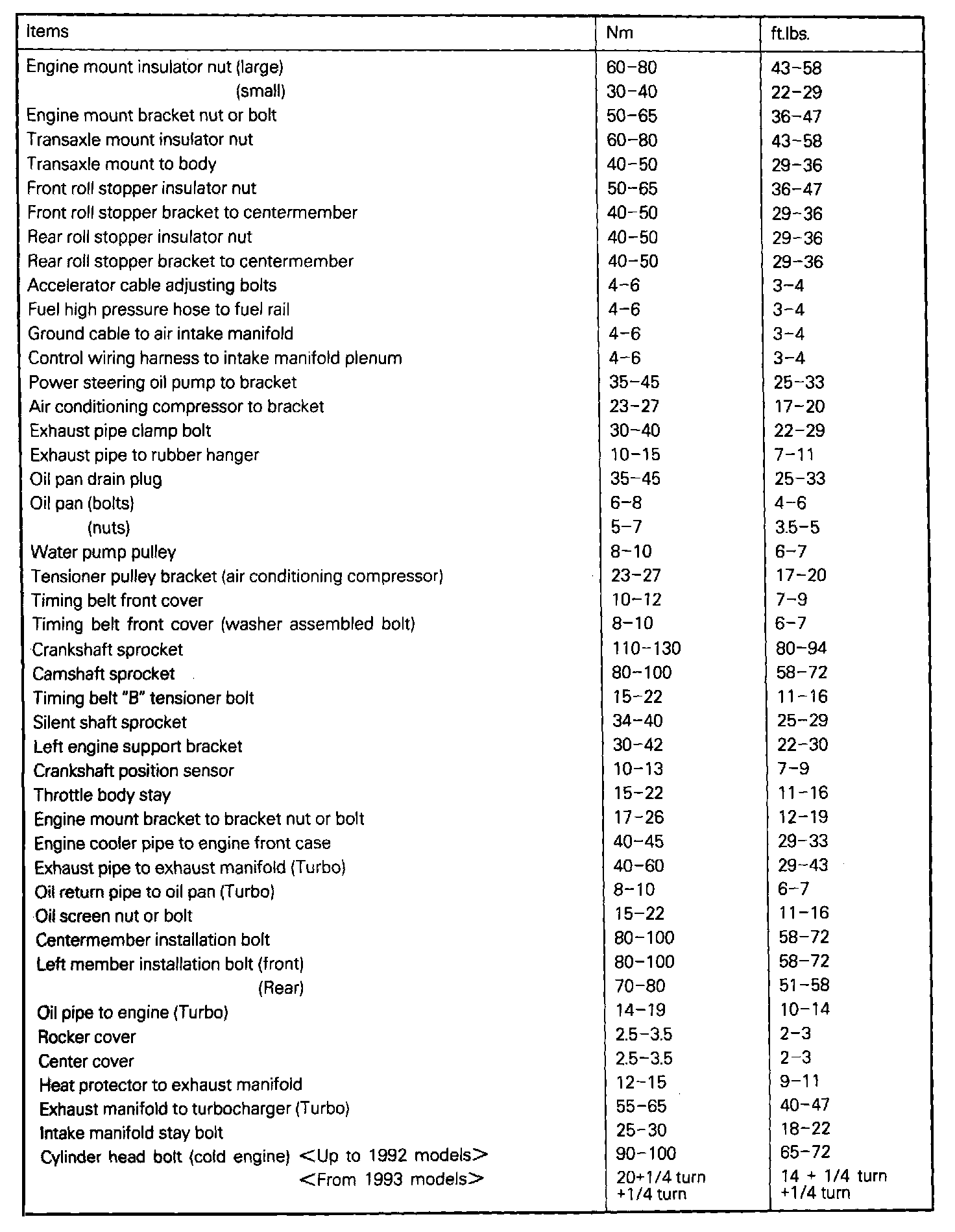

TORQUE SPECIFICATIONS

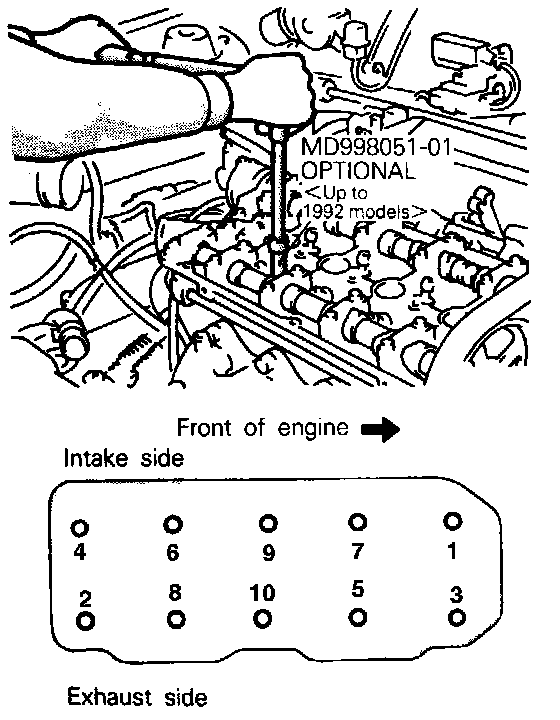

REMOVAL OF
CYLINDER HEAD
BOLT

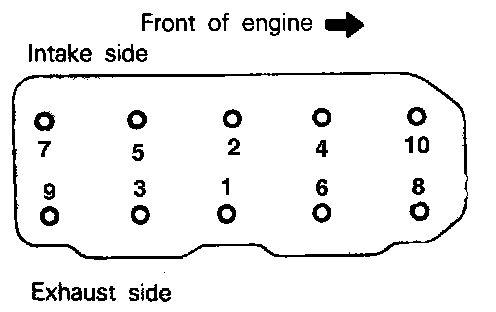

INSTALLATION OF
CYLINDER HEAD
BOLT
