Shift Interlock Cable: Adjustments

1. Move select lever to Reverse position, then clamp shift lock cable.
2. Connect shift lock cable to select lever assembly and temporarily tighten nut.

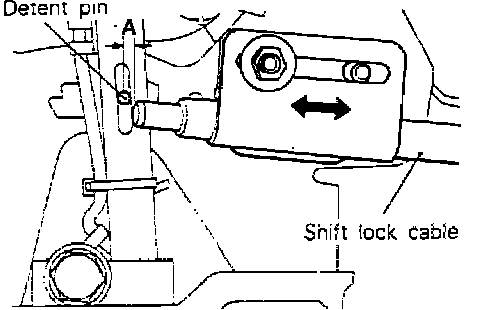

Fig. 6 Shift lock cable adjustment. Laser & Talon:

3. Slide shift lock cable so distance between select lever assembly's detent pin and end of shift lock cable (distance A) is .04-.15 inch, Fig. 6.
