Magnetic Switch Pull In Test

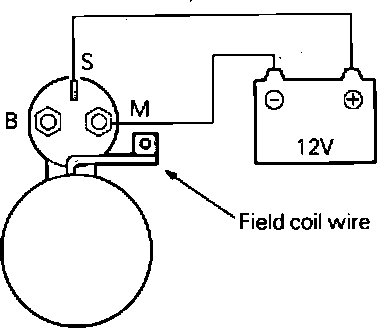

Fig. 3 Magnetic Pull In Test:

1. Disconnect field coil wire from M-terminal.
2. Connect a 12 volt battery between terminals S and M.
3. If pinion moves out, then pull in coil is good.
4. If pinion does not move out, replace magnetic switch.
