Magnetic Switch Hold In Test

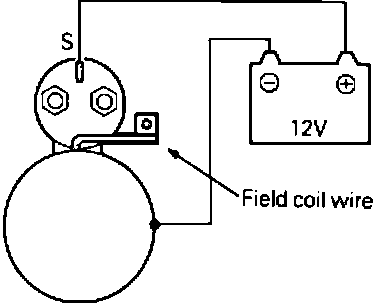

Fig. 4 Magnetic Switch Hold In Test:

1. Disconnect field coil wire from terminal M of switch.
2. Connect a 12 volt battery between terminal S and starter body.
CAUTION: This test must be performed quickly to prevent coil from burning.
3. If pinion remains out, switch is operating correctly.
4. If pinion moves in, hold-in circuit is open. Replace magnetic switch.
