Home >> Eagle >> 1993 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Electronic Noise Suppressor >> Locations

Electronic Noise Suppressor: Locations

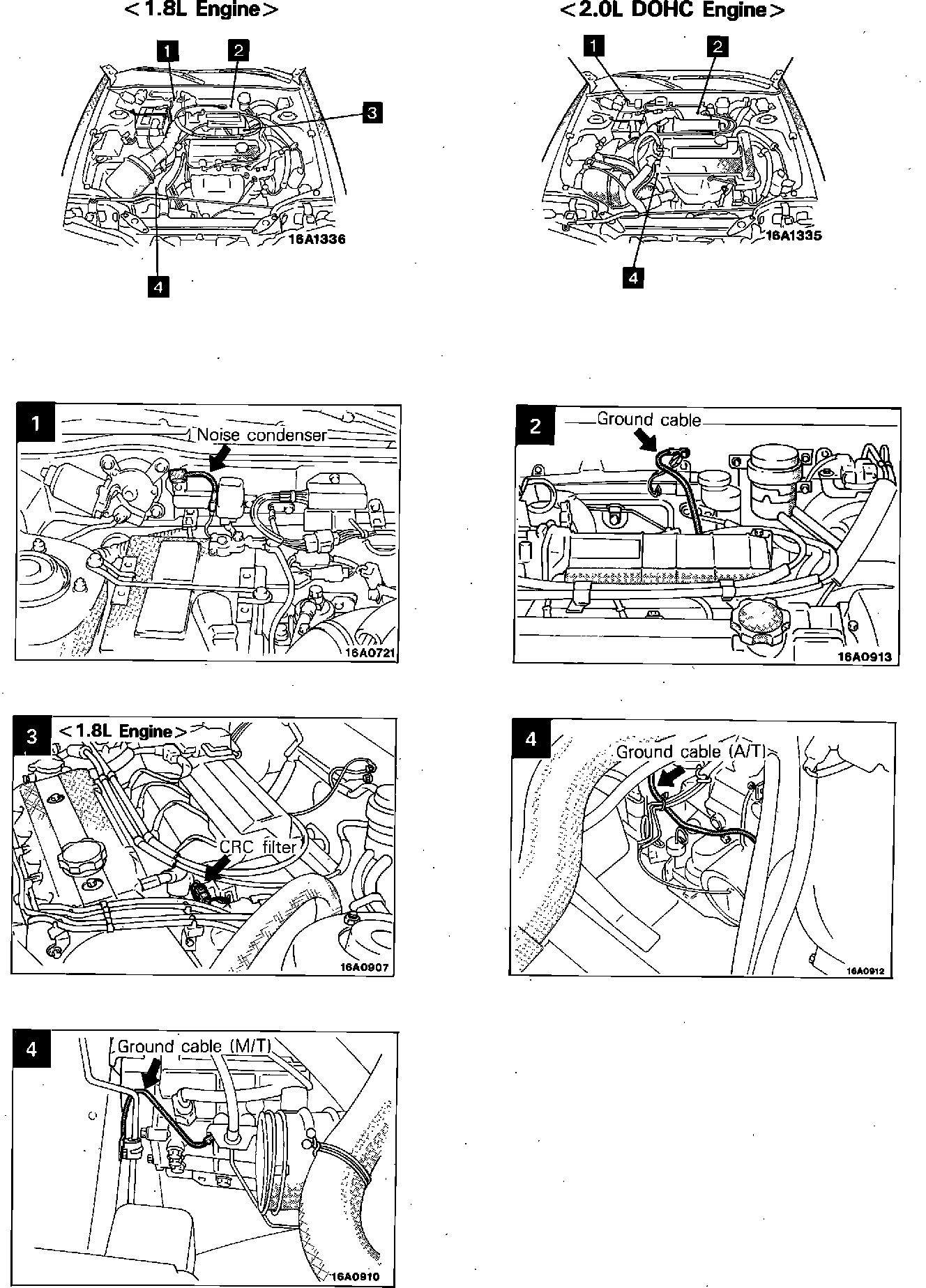

Component/Relay/Switch Locations (Noise Suppressor):

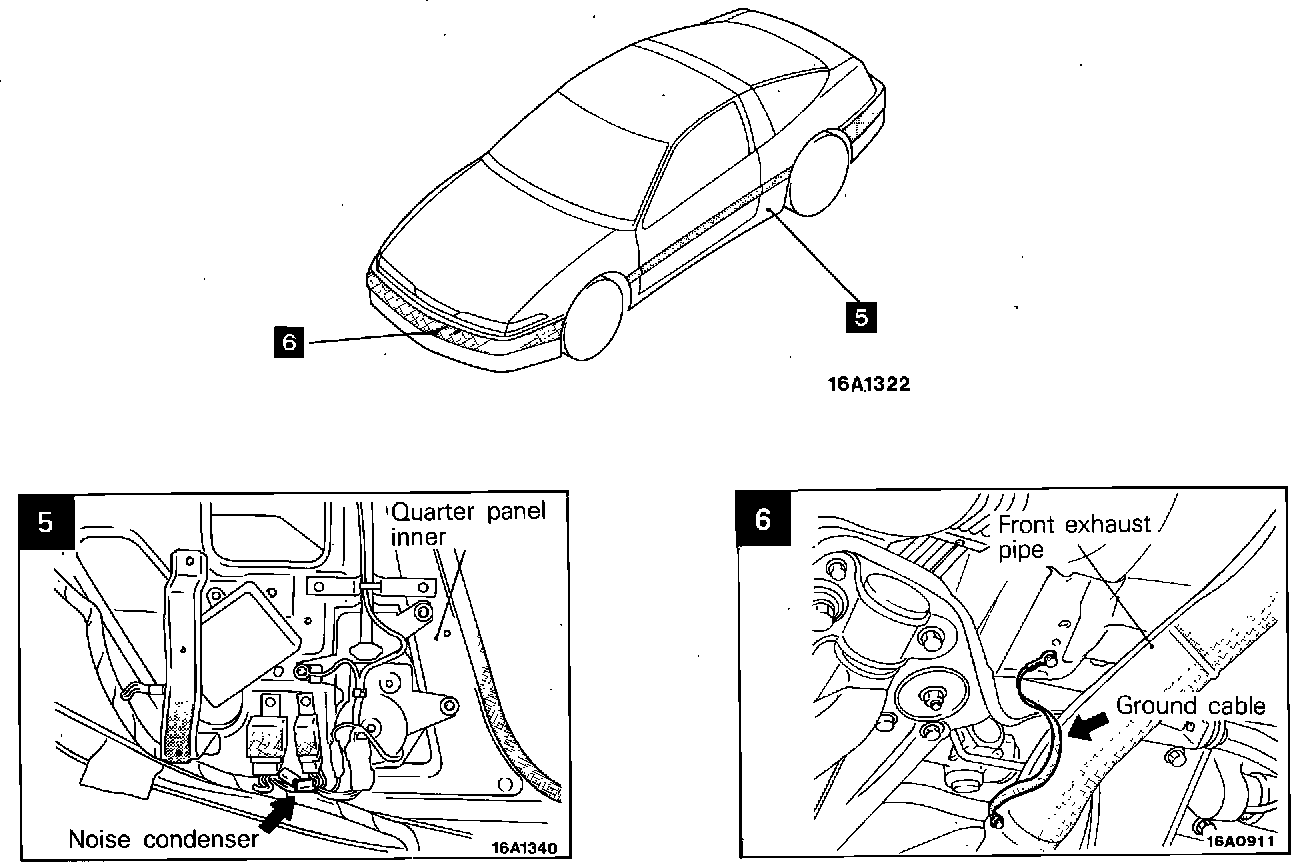

Component/Relay/Switch Locations (Noise Suppressor):
