Home >> Eagle >> 1993 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> With Manual Transmission >> Part 3 of 5

Part 3 of 5

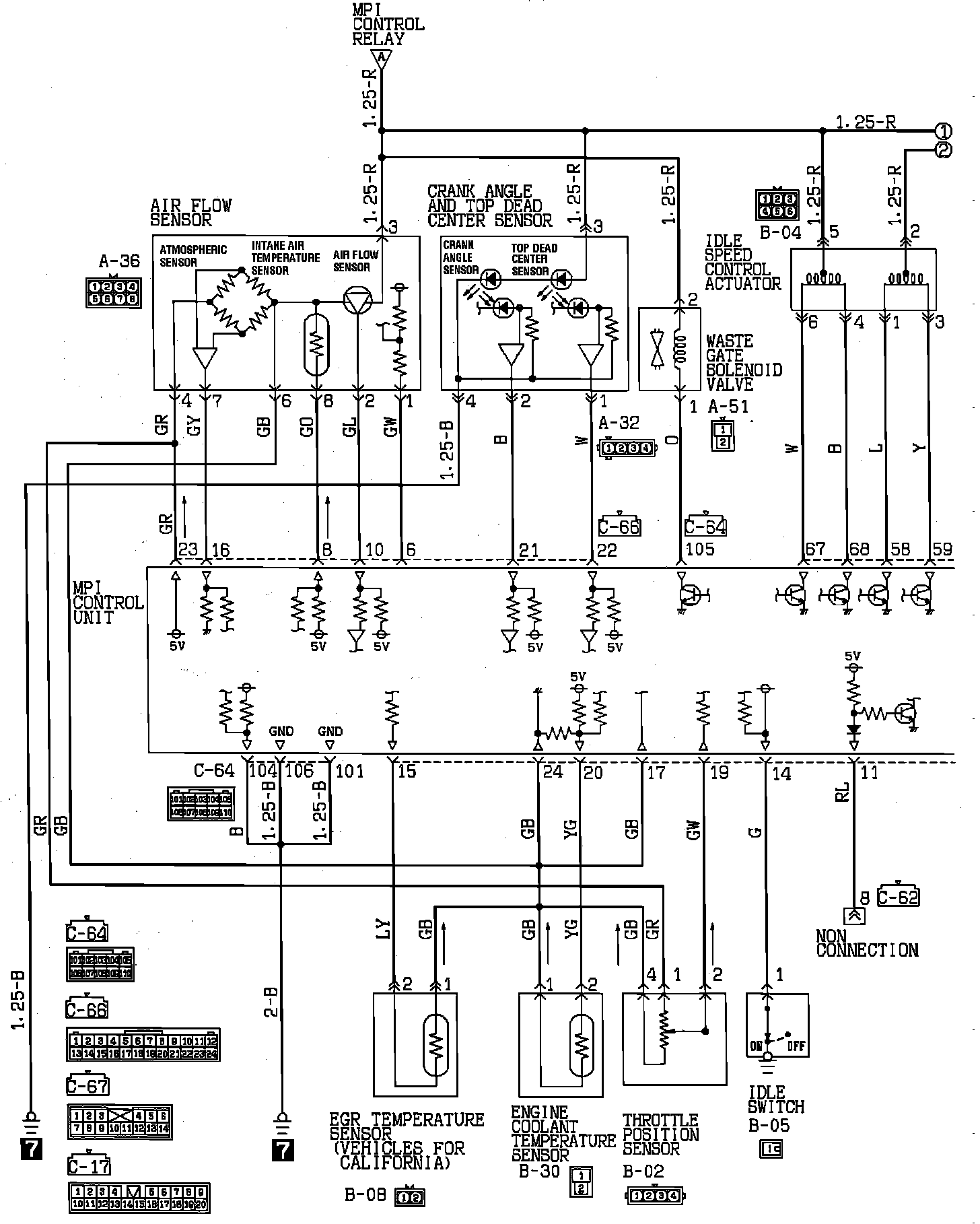

MPI Circuit Diagram 3 Of 5:
