Home >> Eagle >> 1993 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Connectors >> E Connectors - Interior Harness

E Connectors - Interior Harness

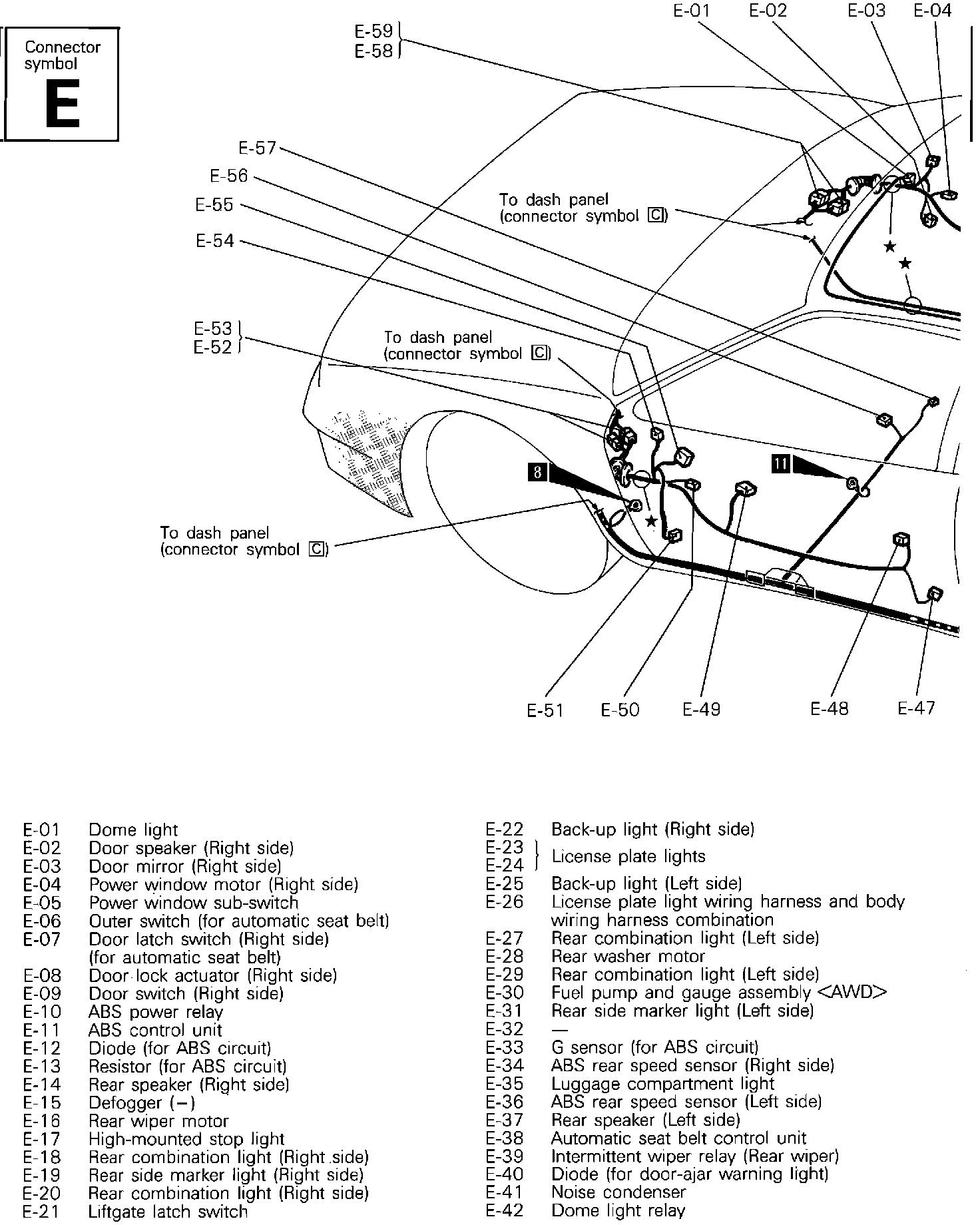

Connector Locations (Interior):

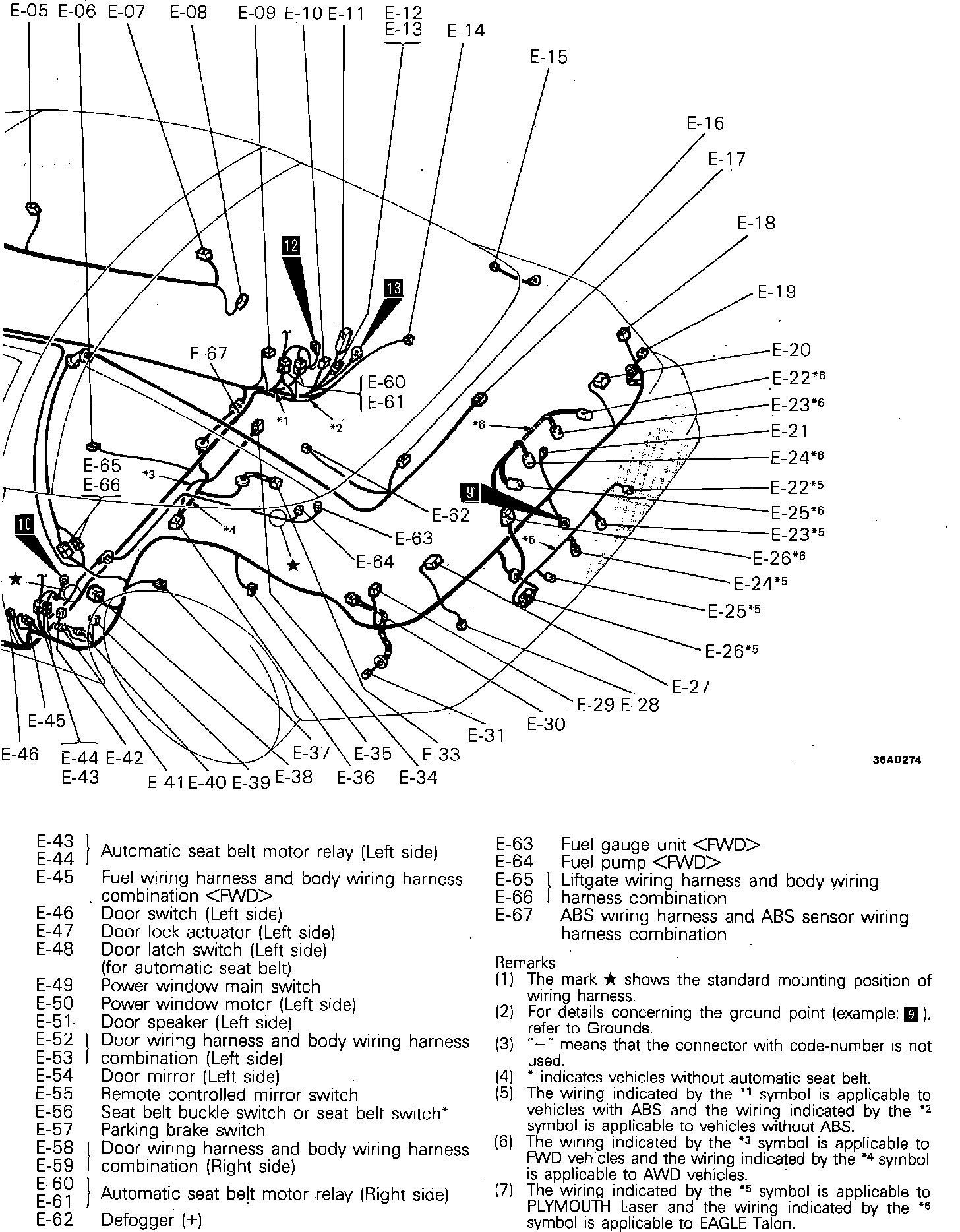

Connector Locations (Interior):
