C-01 Thru D-18 (Instrument Panel and Floor)

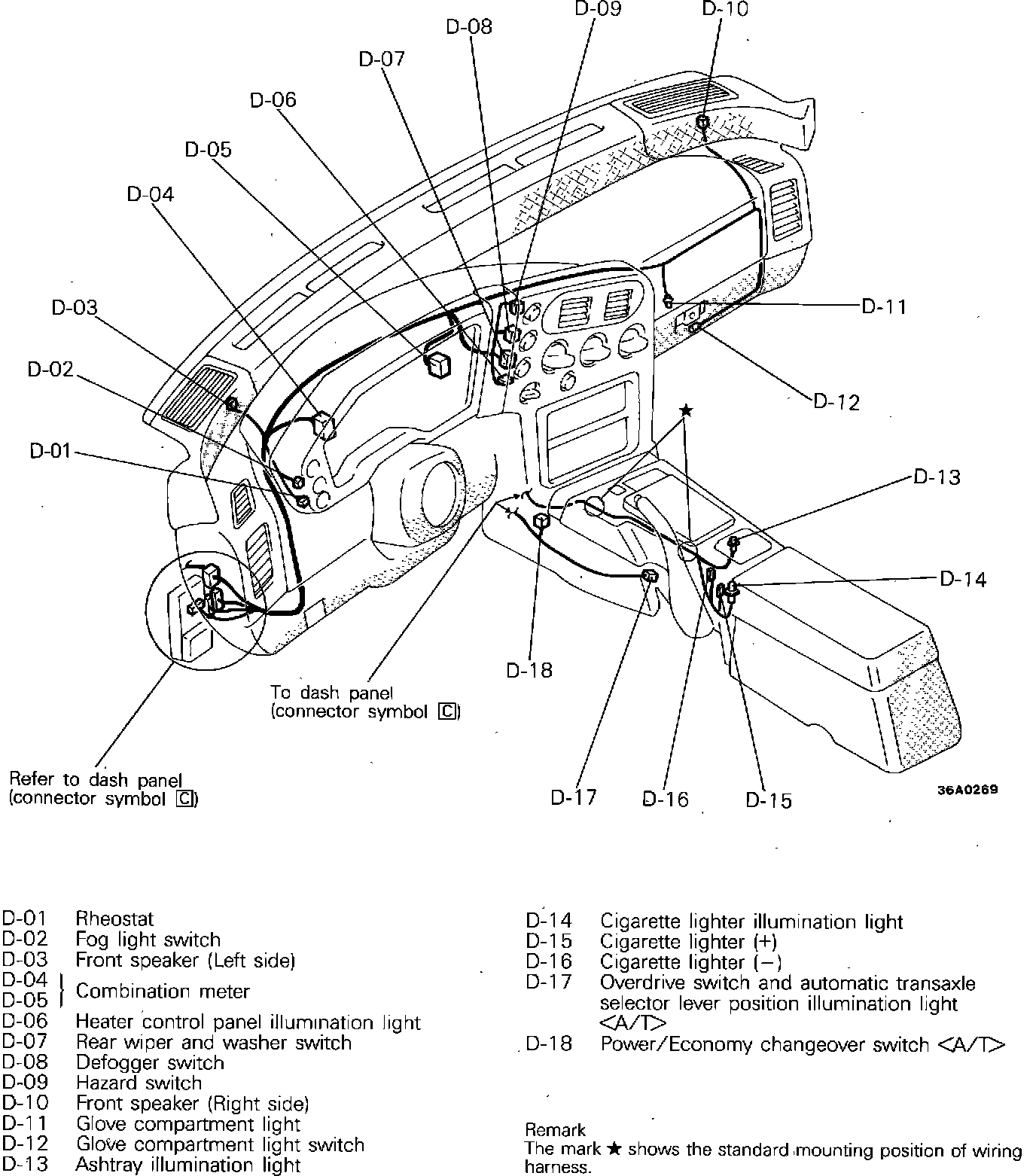

Connector Locations (Instrument Panel And Floor Console):
