Home >> Eagle >> 1993 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Connectors >> A Connectors - Engine Compartment Harness

A Connectors - Engine Compartment Harness

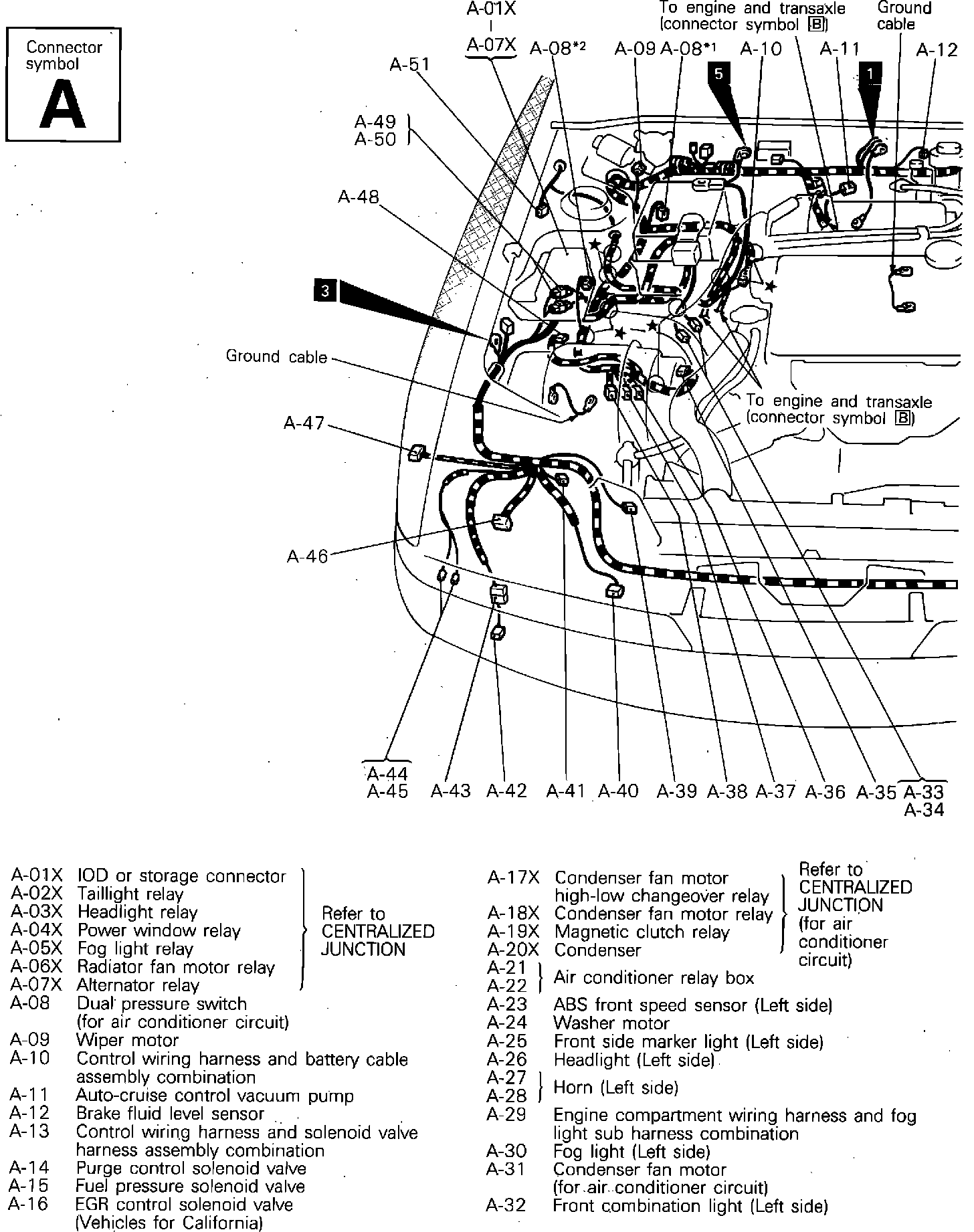

Connector Locations (Engine Compartment):

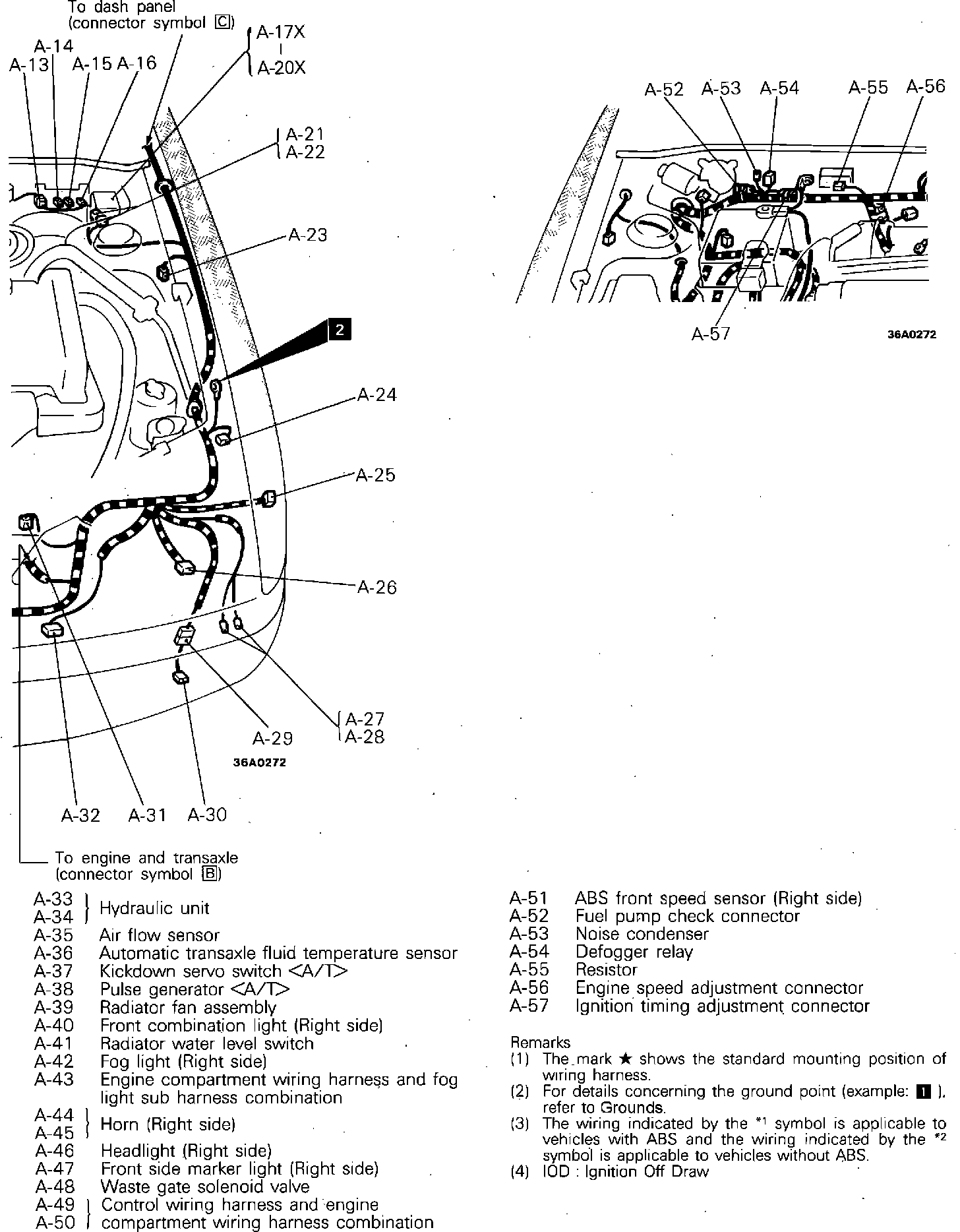

Connector Locations (Engine Compartment):
