Transmission Control Systems: Locations

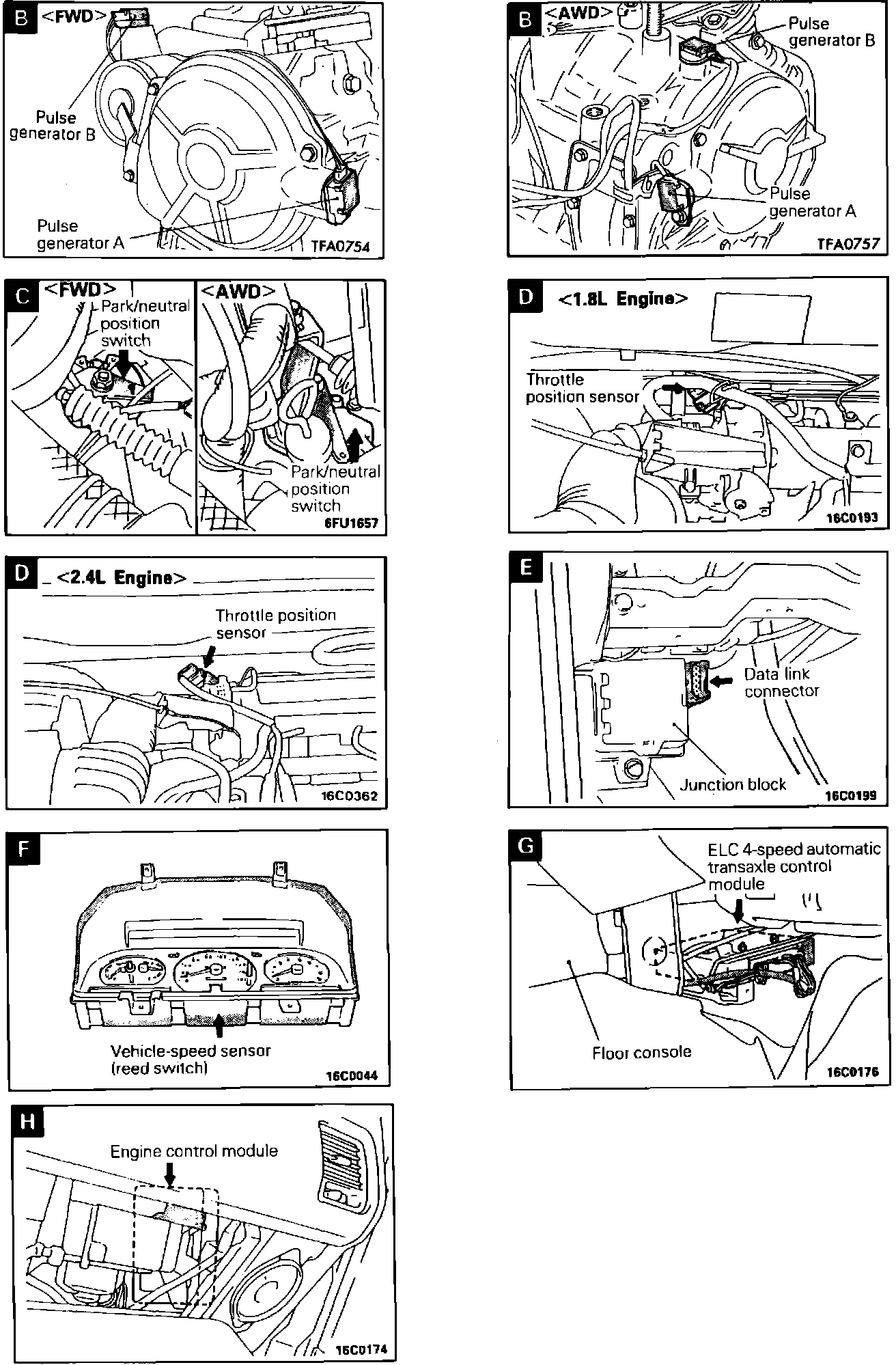

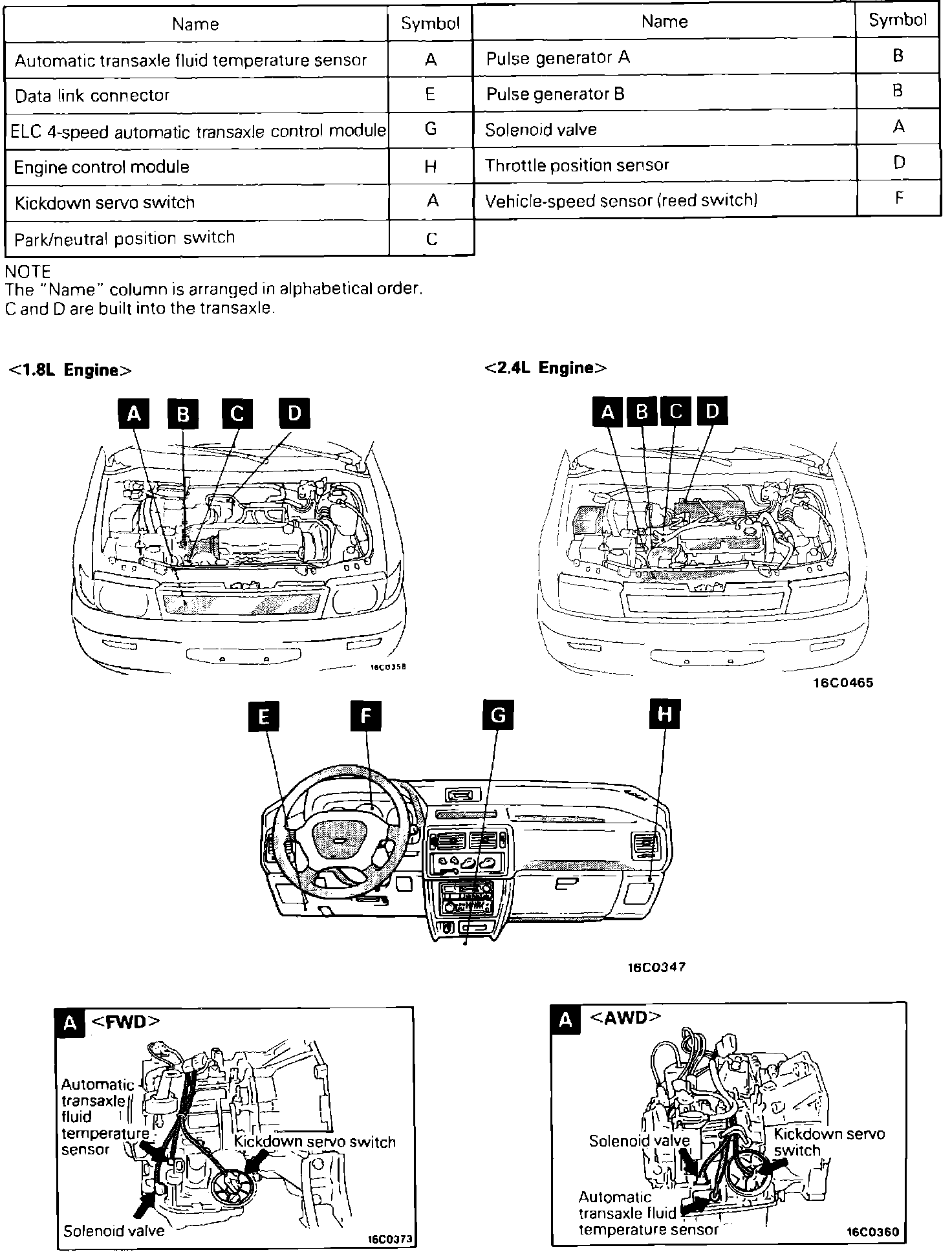

4 Speed Automatic Transaxle Component Locations:



4 Speed Automatic Transaxle Component Locations:
