Component Locations

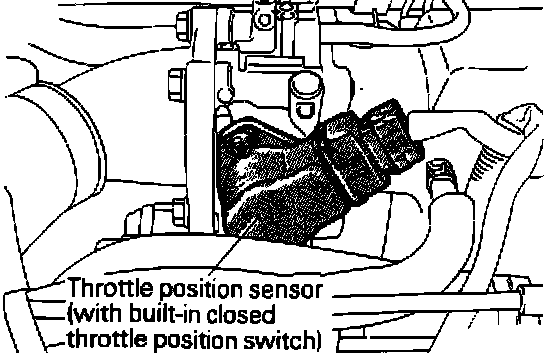

Throttle Position Sensor (TPS) Location:





On the throttle body, incorporated within the throttle position sensor.
