Engine Control Module: Locations

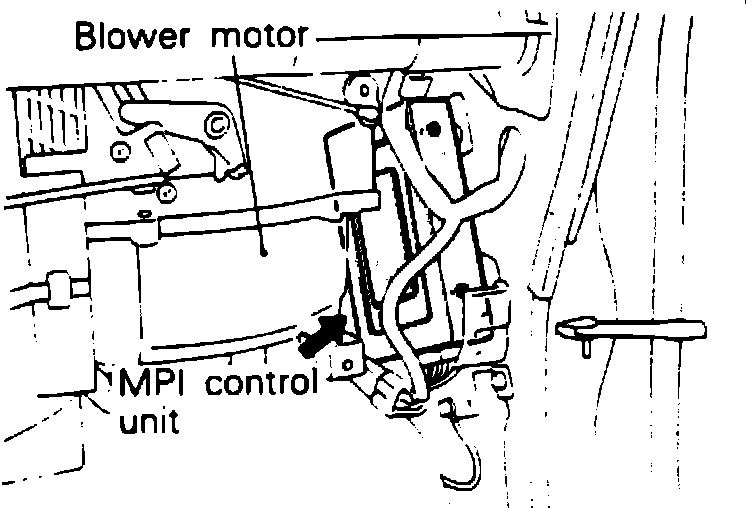

Multi-Point Injection (MPI) Control Unit Location:





Located RH of the vehicle, behind the dash bolster, next to the right kick panel.
