Cruise Control Switch: Testing and Inspection

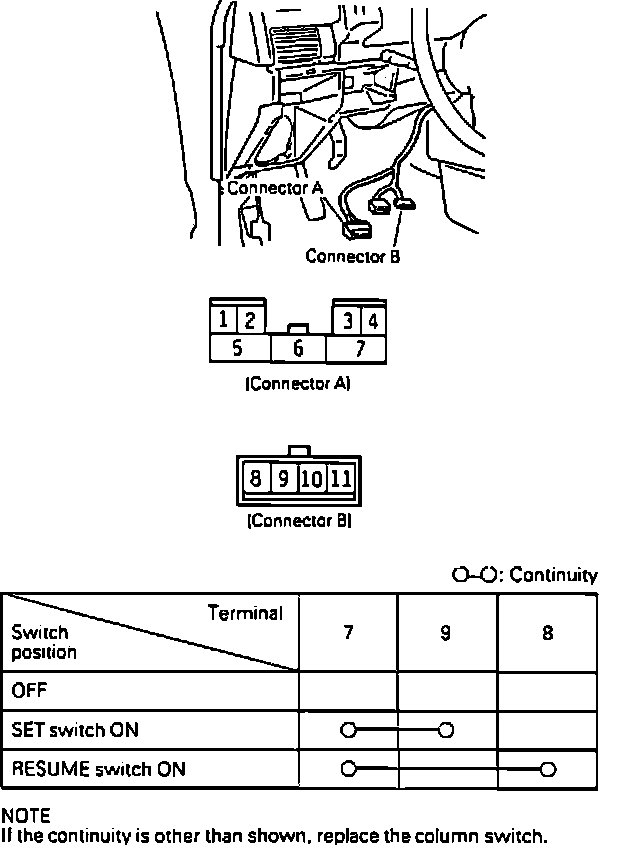

Fig. 76 Speed Control Main Switch Test:

Gain access and disconnect connector to speed control main switch and check for continuity between terminals as shown.
