Home >> Eagle >> 1992 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Cooling System >> Radiator Cooling Fan Motor Relay >> Diagrams >> Electrical Diagrams

Electrical Diagrams

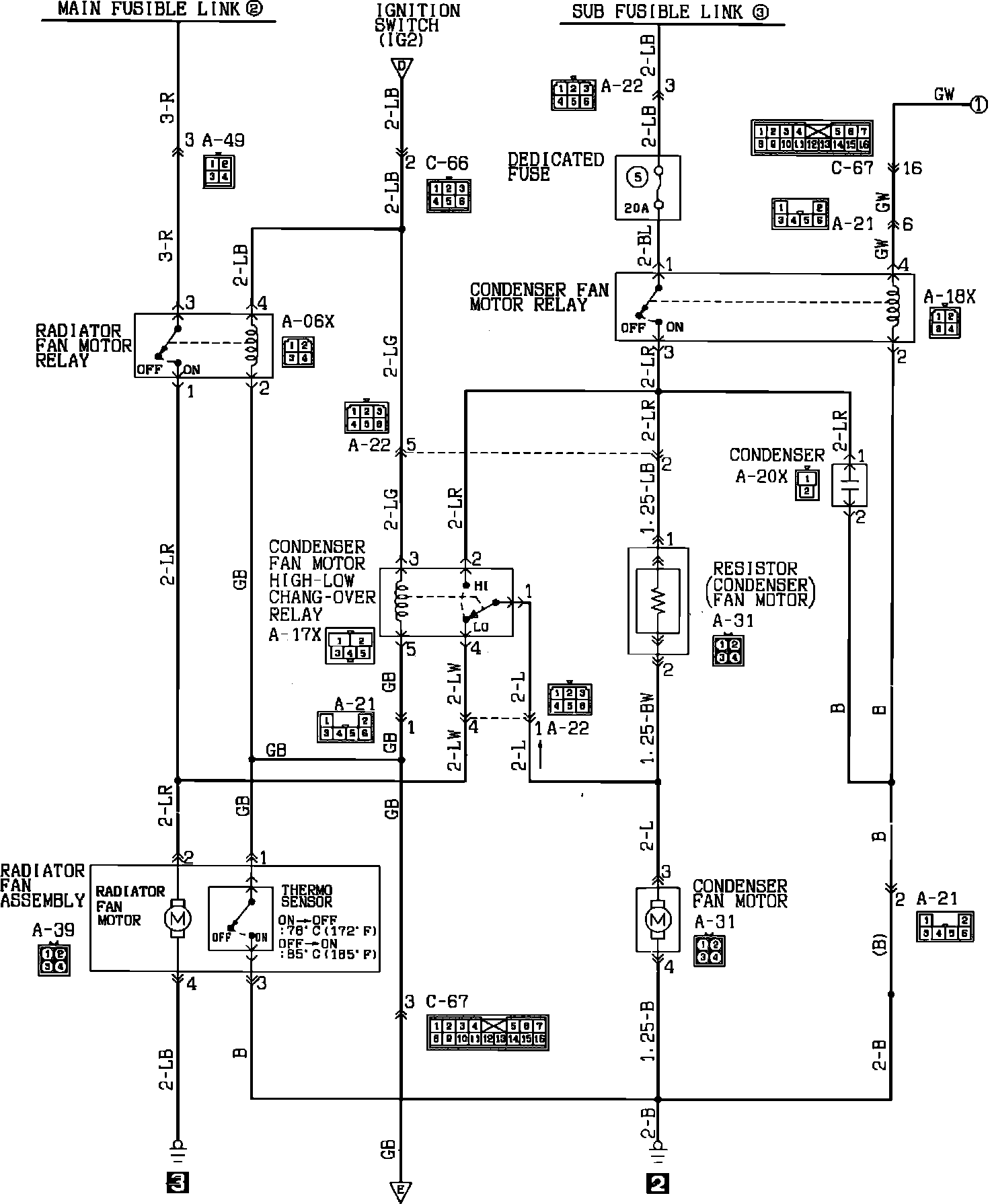

Radiator Fan System With A/C And Heater Wiring Diagram (part 1 Of 2):

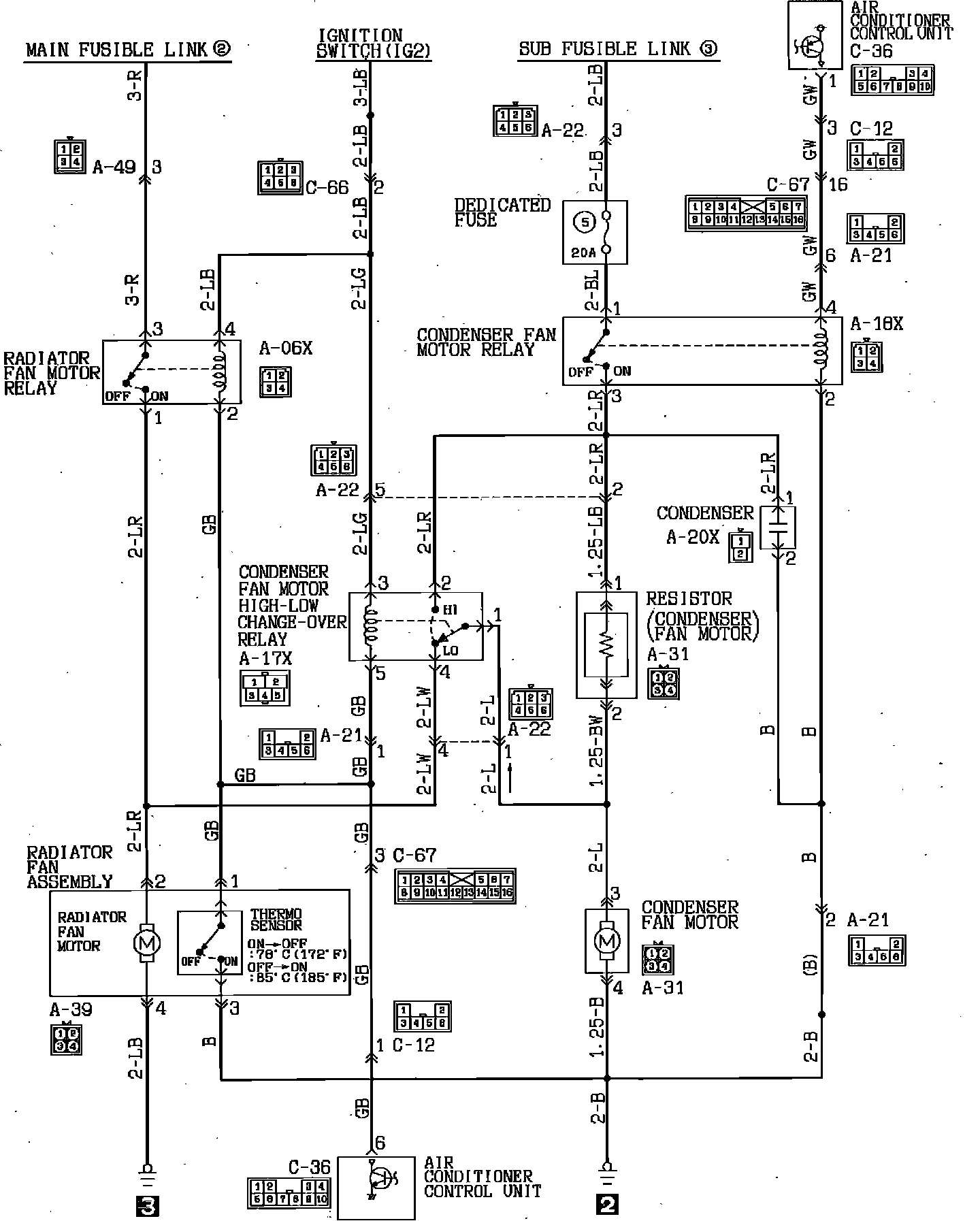

Cooling Fan:
