Exhaust Gas Recirculation: Locations

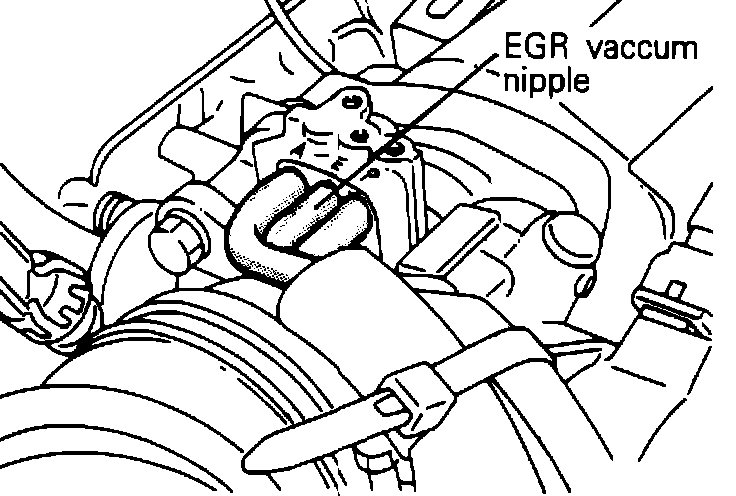

EGR System Vacuum Source:






The EGR vacuum source is located on the throttle body.
