Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Sensors and Switches - Computers and Control Systems
>>
Idle Speed Motor Position Sensor
>>
Locations
>>
Connector Locations
Connector Locations

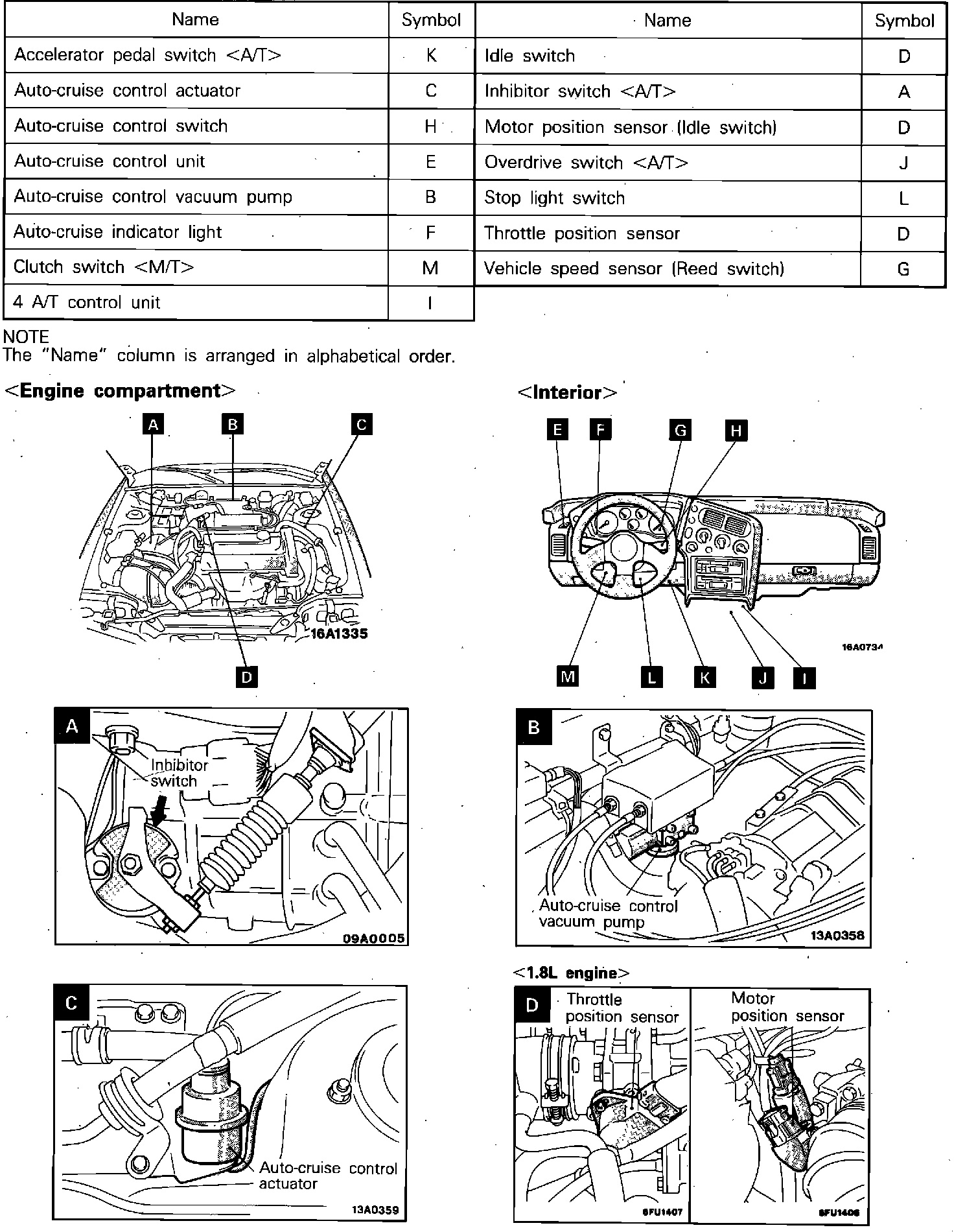

Component/Relay/Switch Locations (Cruise Control):
Component/Relay/Switch Locations (Cruise Control):
