Home >> Eagle >> 1992 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> With Manual Transmission

With Manual Transmission

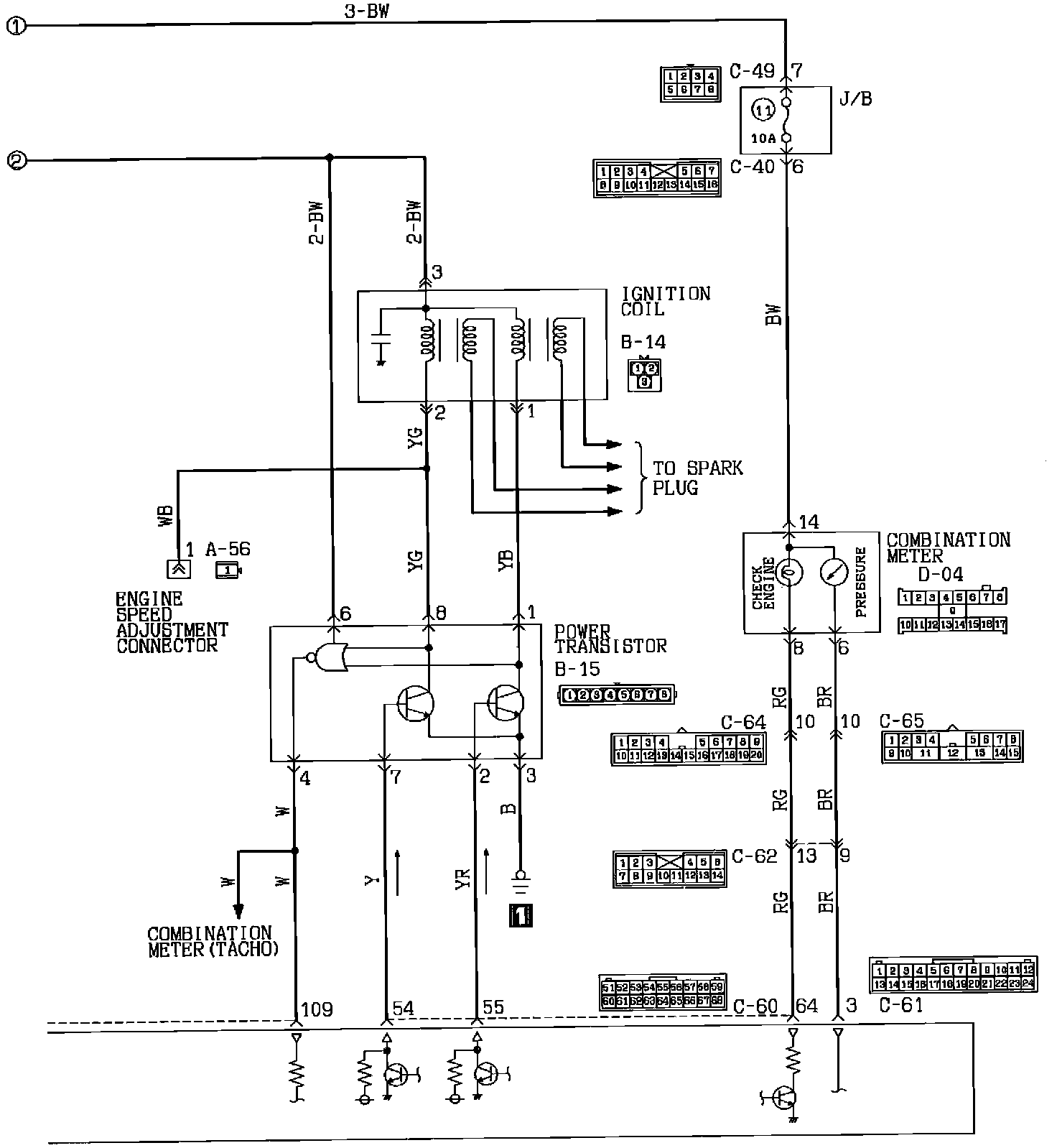

Engine Management:




1 OF 5

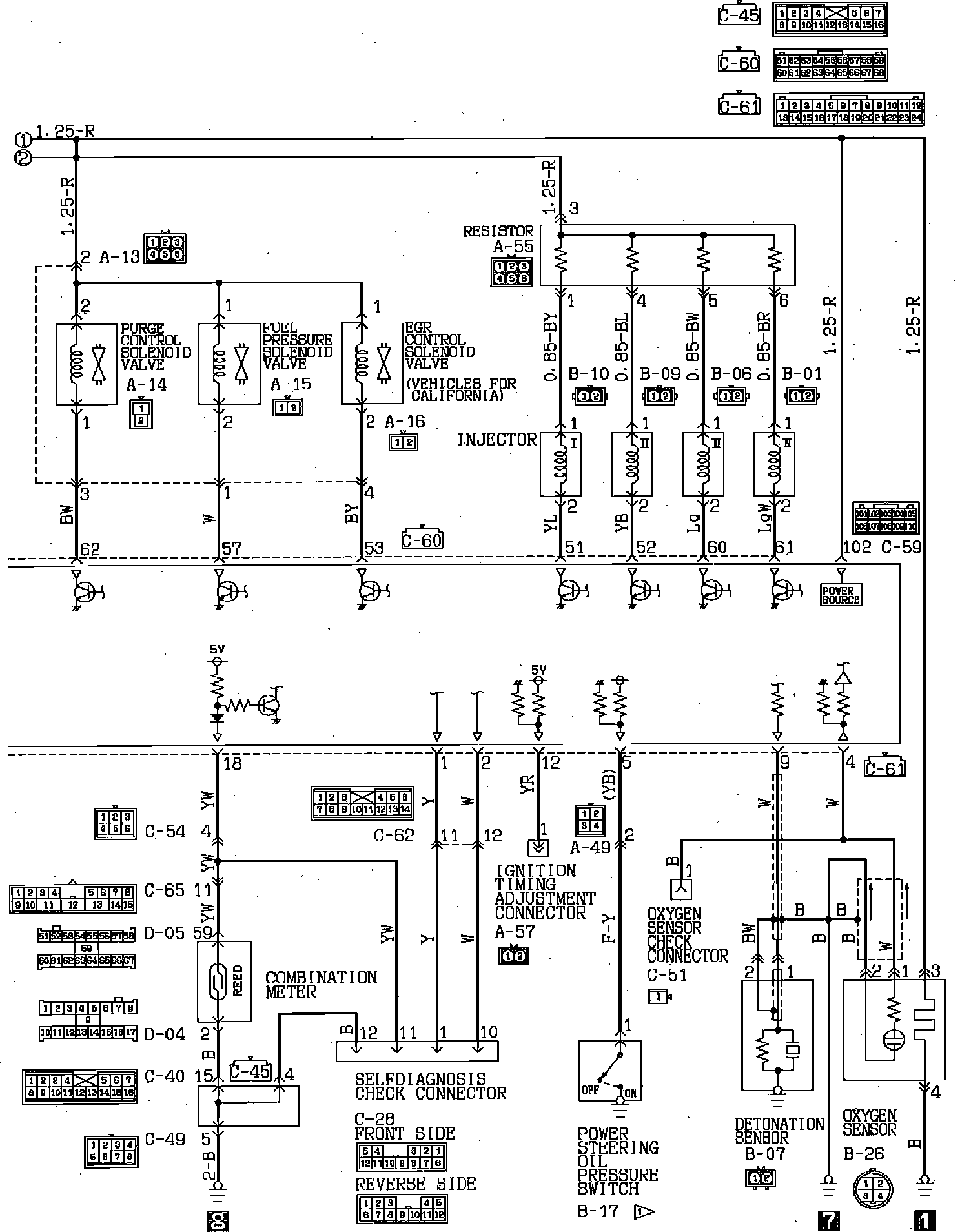

Engine Management:




2 OF 5

Engine Management:




3 OF 5

Engine Management:




4 OF 5

Engine Management:




5 OF 5
