Home >> Eagle >> 1992 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Trunk Lamp

Trunk Lamp

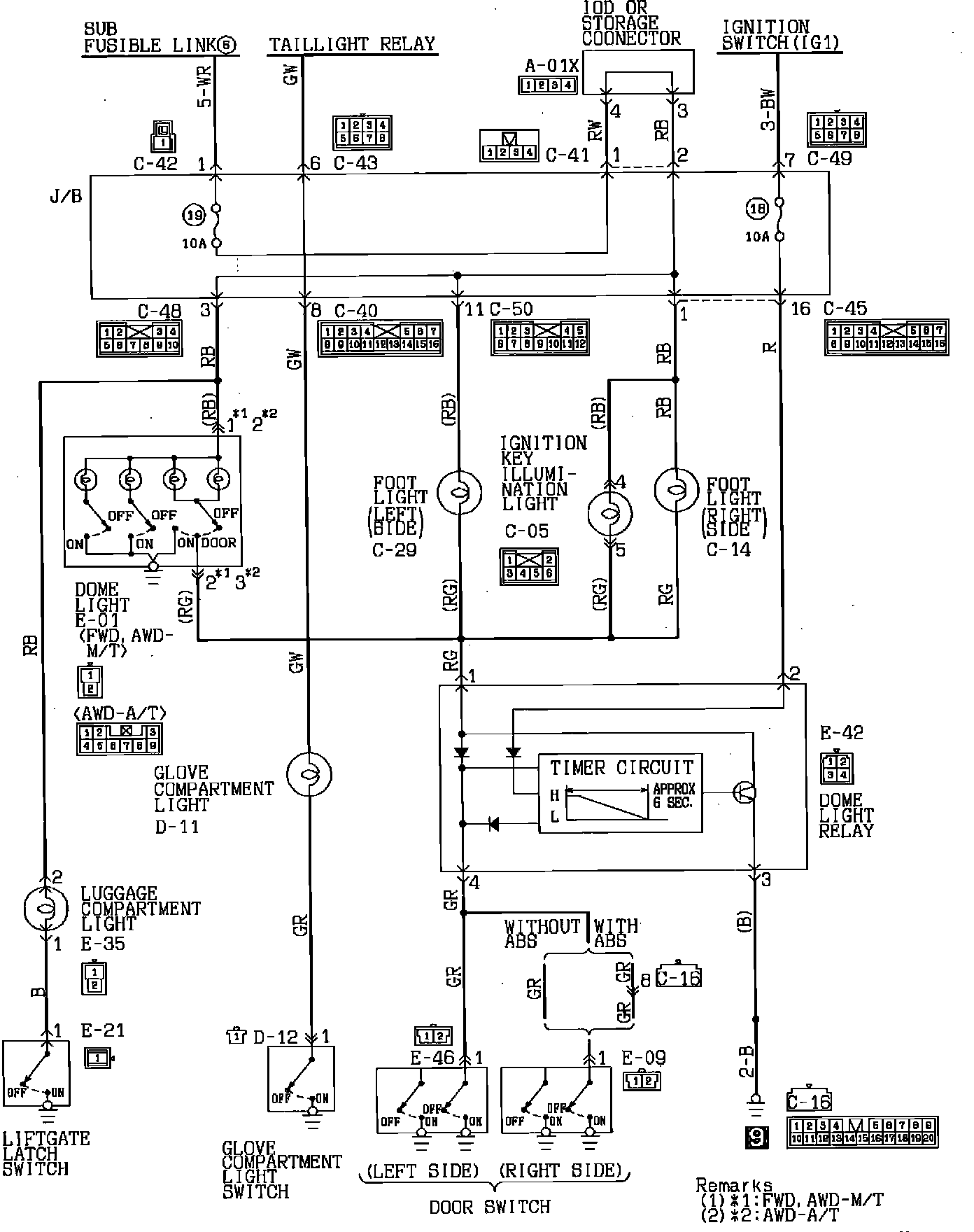

Dome, Ignition Key Illumination, Foot, Glove Compartment, And Luggage Compartment Lamps:
