Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Detailed Descriptions
Detailed Descriptions

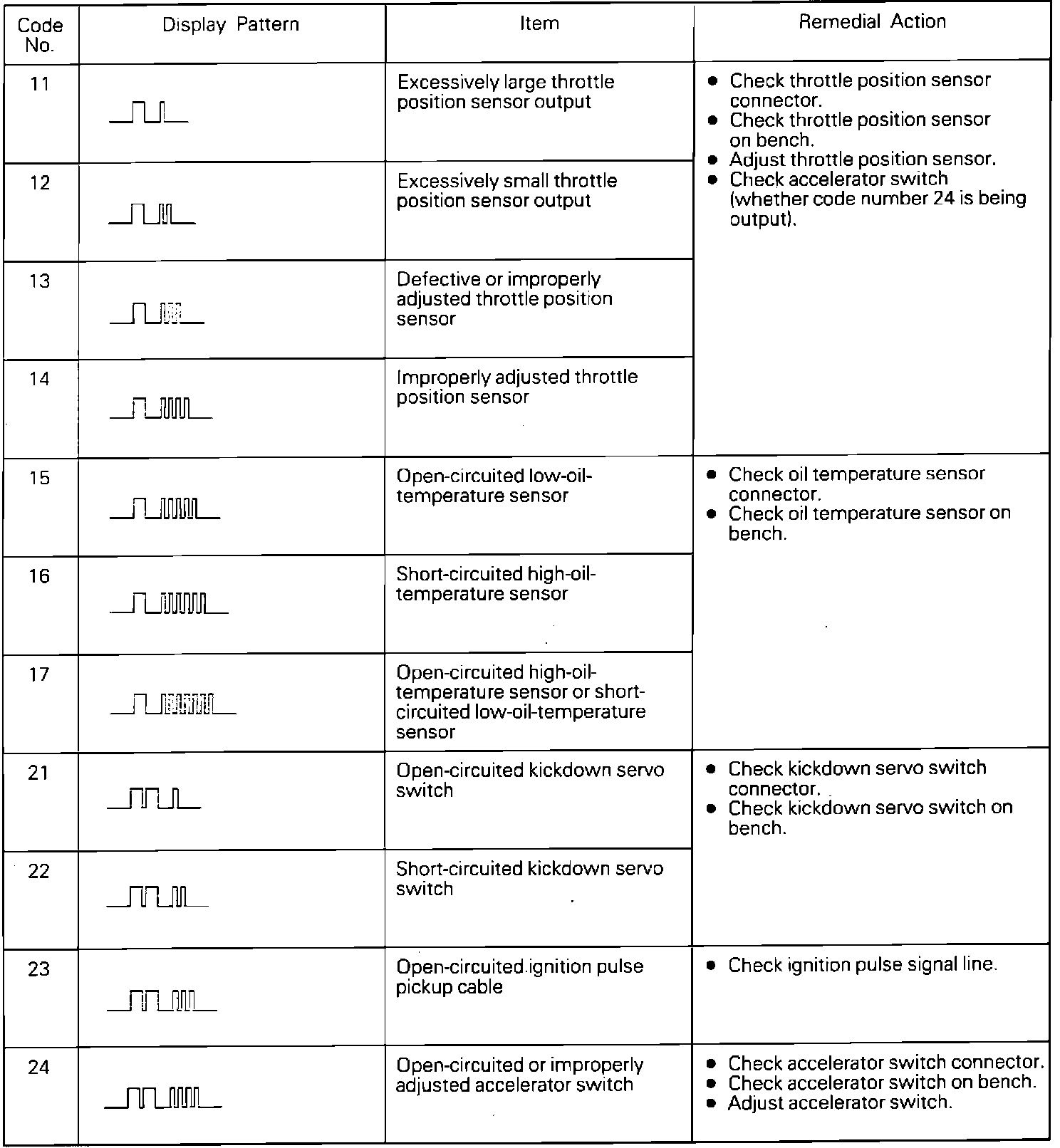

11-24:

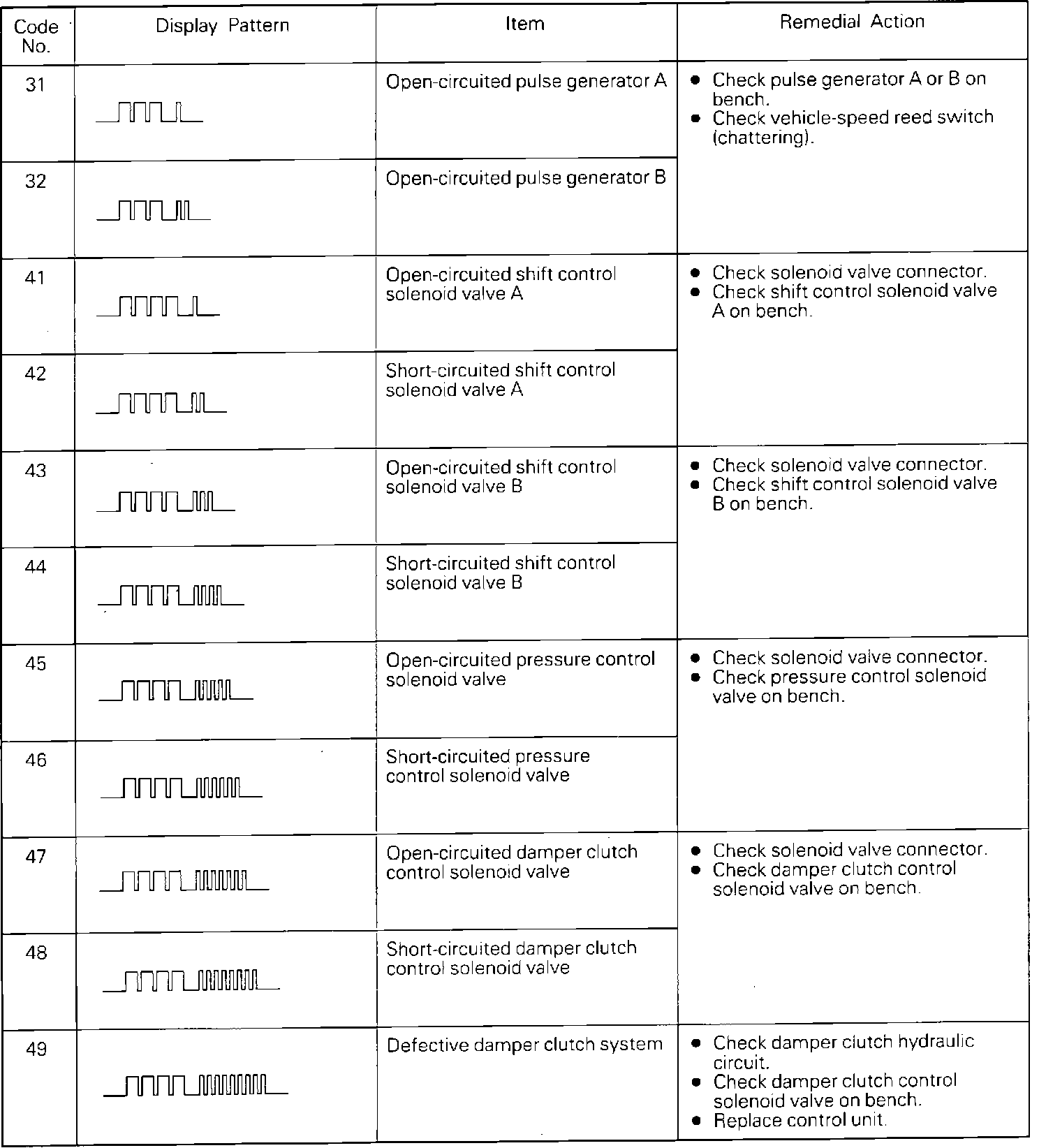

31-49:

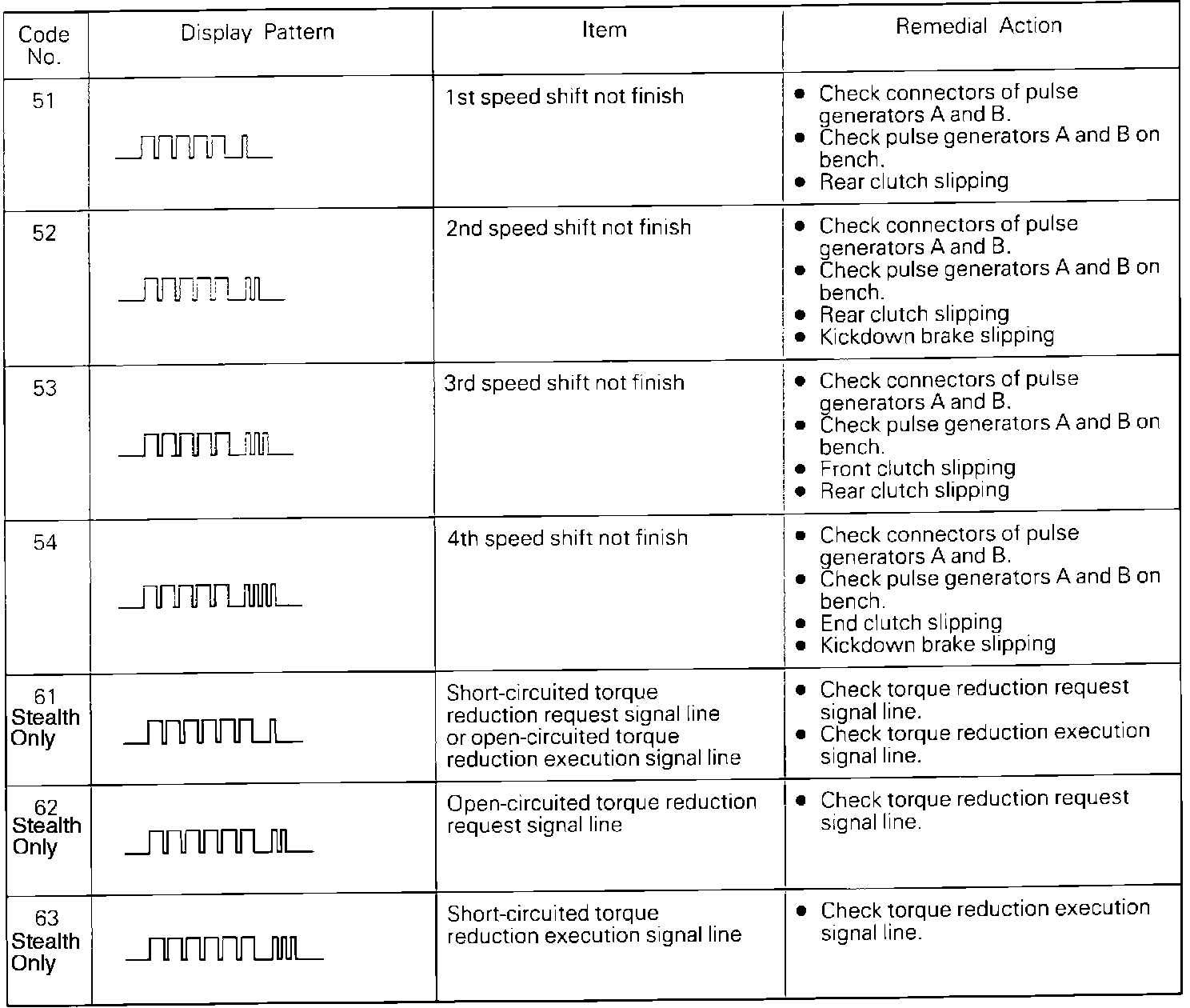

51-63:

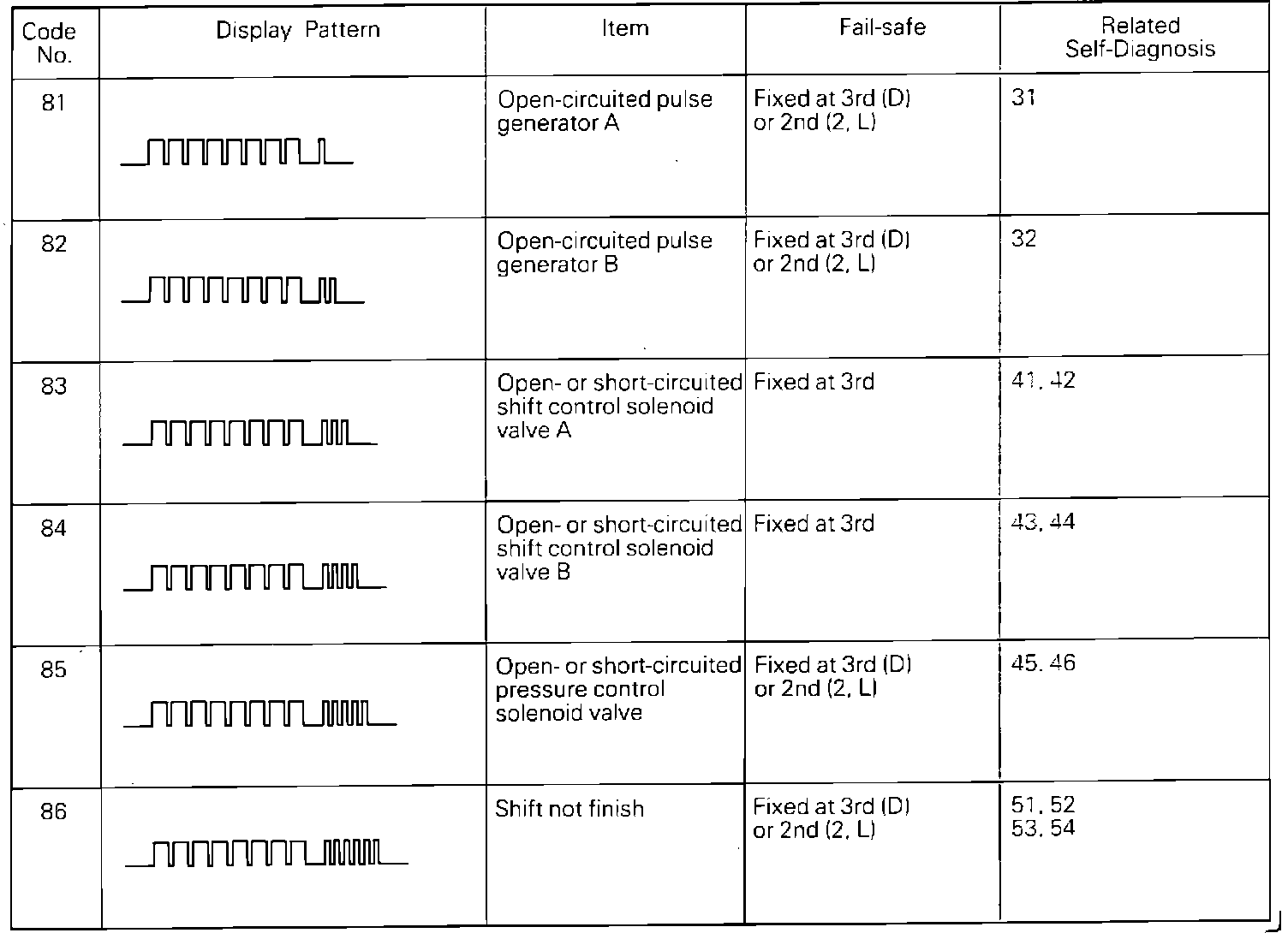

Fail Safe Functions (Codes 81-86):
