Home >> Eagle >> 1992 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> 2 and 3 Digit Codes >> Code Descriptions & Possible Causes

Code Descriptions & Possible Causes

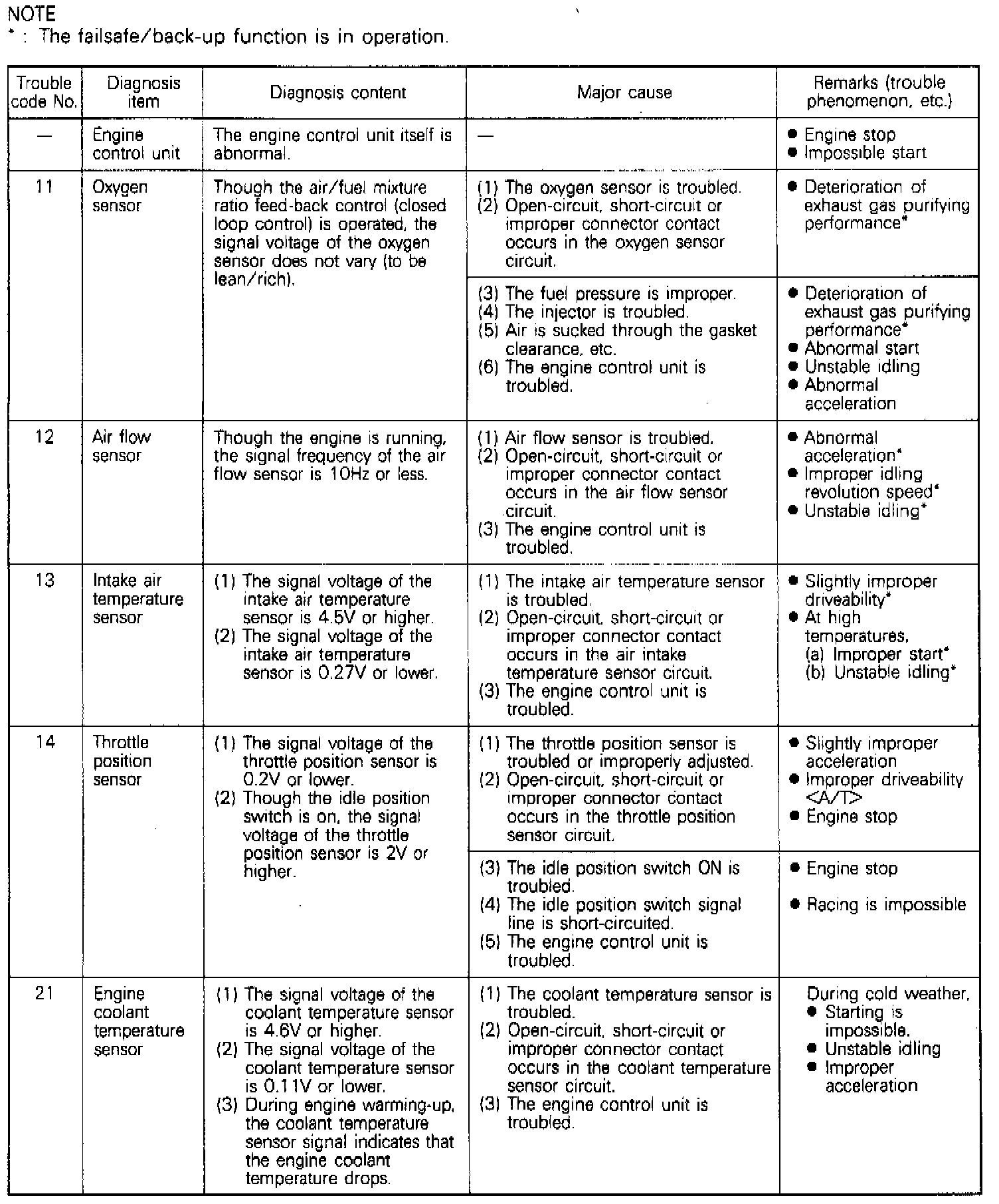

Part 1 / DTCs 11 - 21:

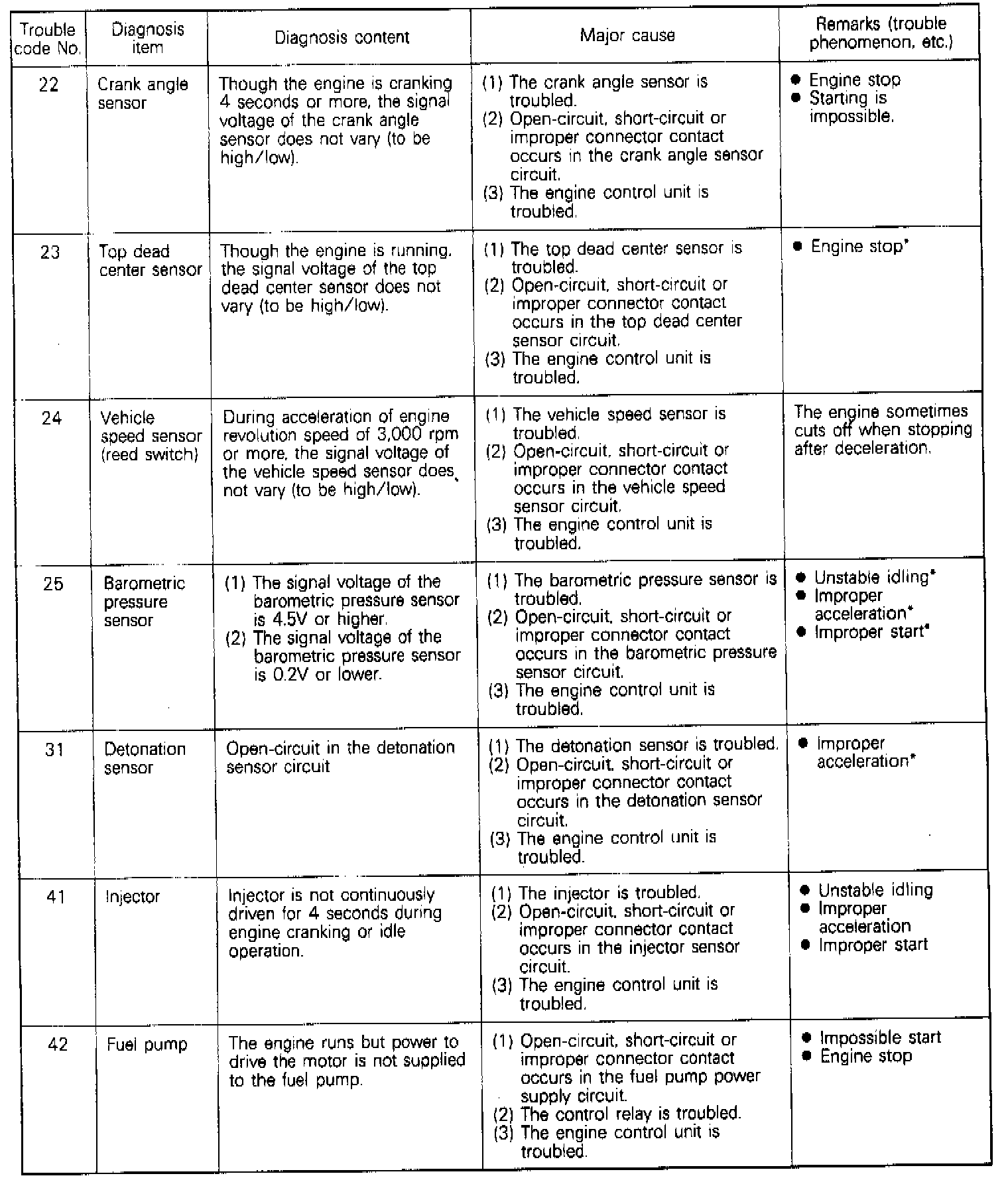

Part 2 / DTCs 22 - 42:

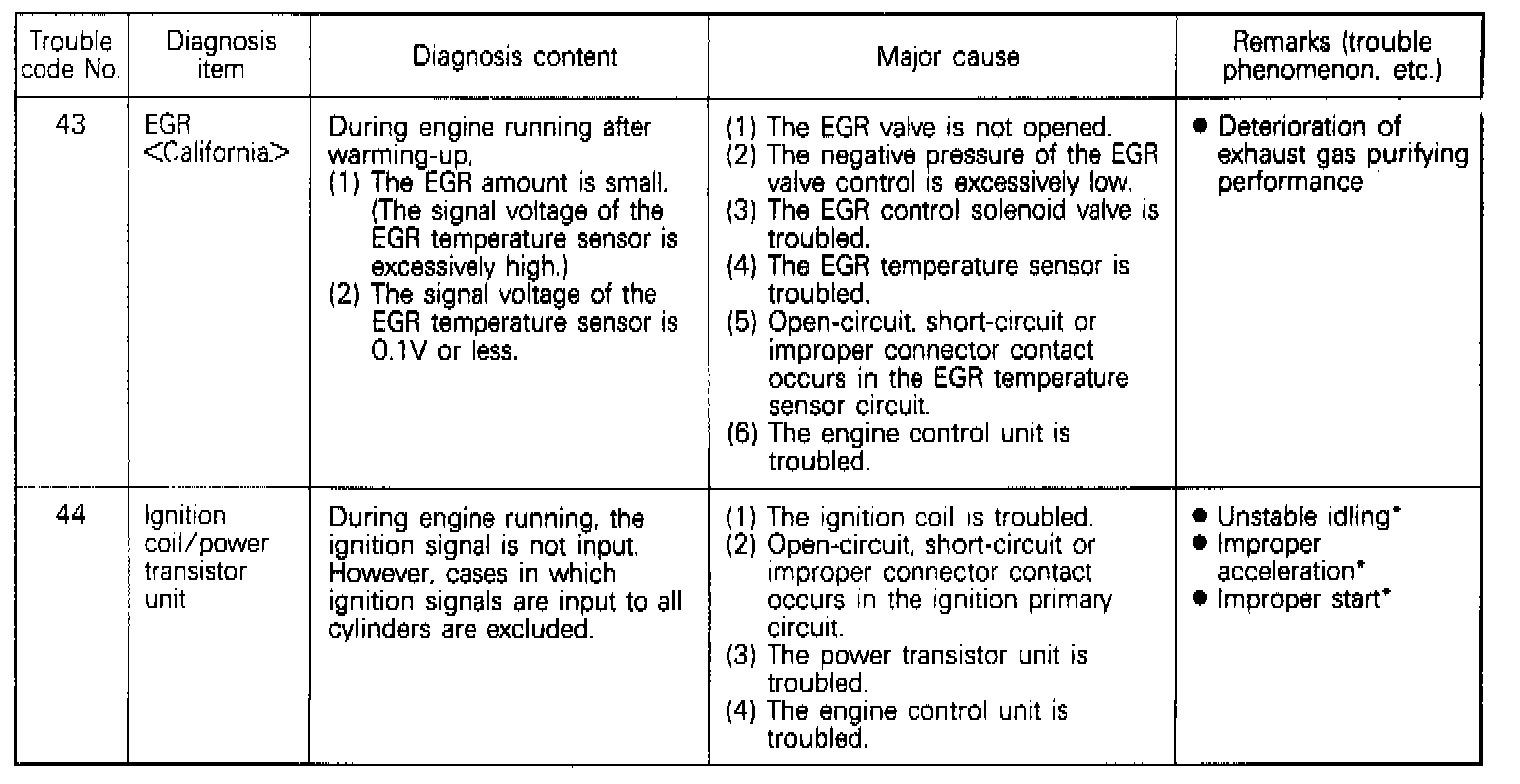

Part 3 / DTCs 43 - 44:

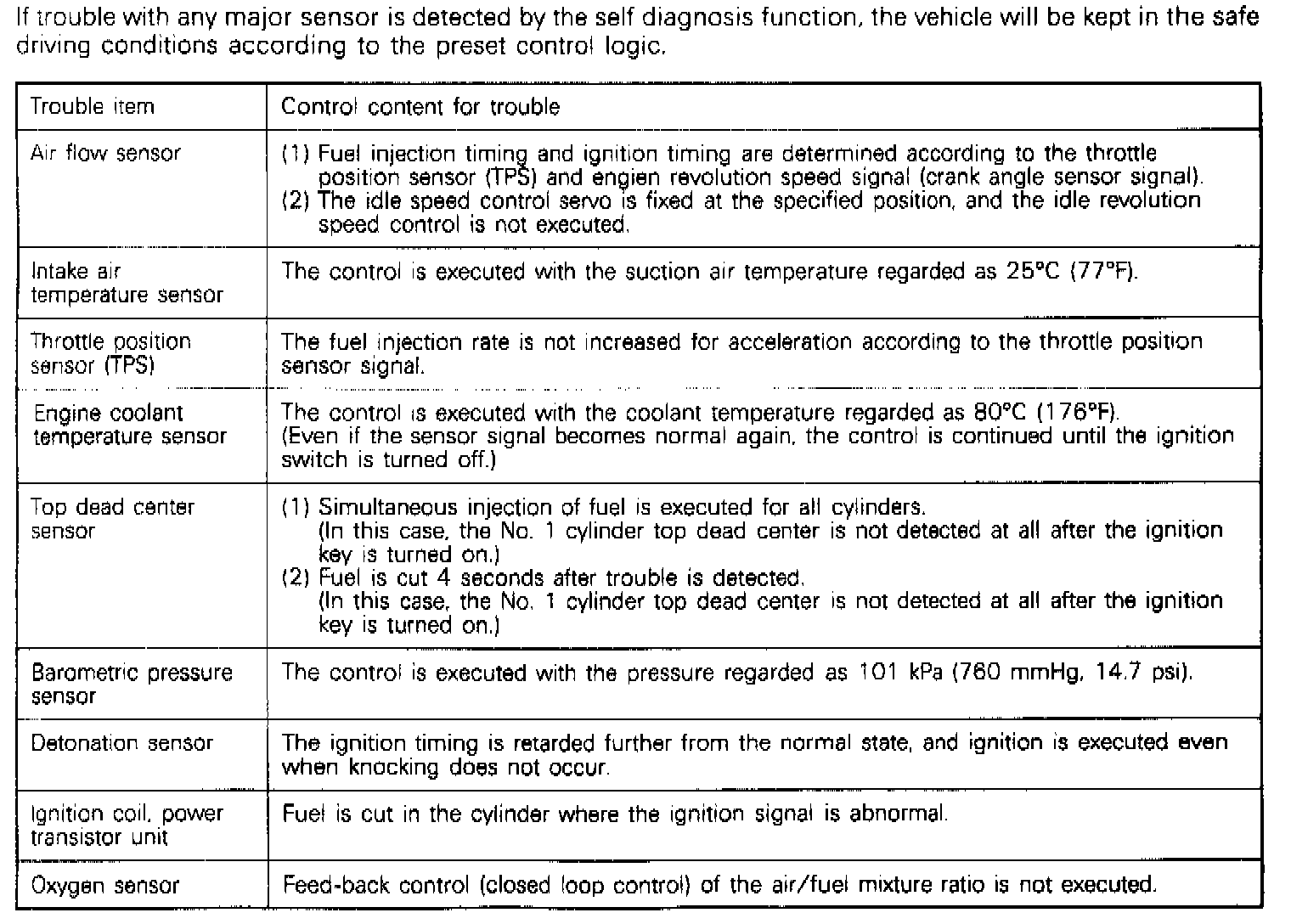

Failsafe/Back-Up Functions List:
