Power Window Relay: Testing and Inspection





POWER WINDOW RELAY

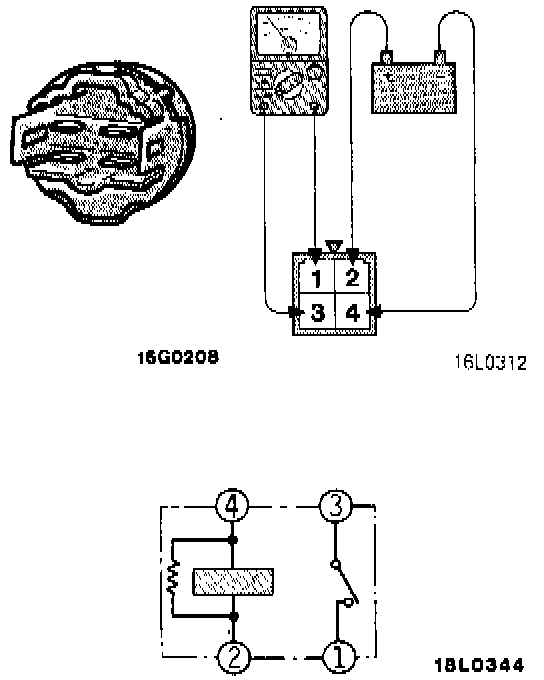

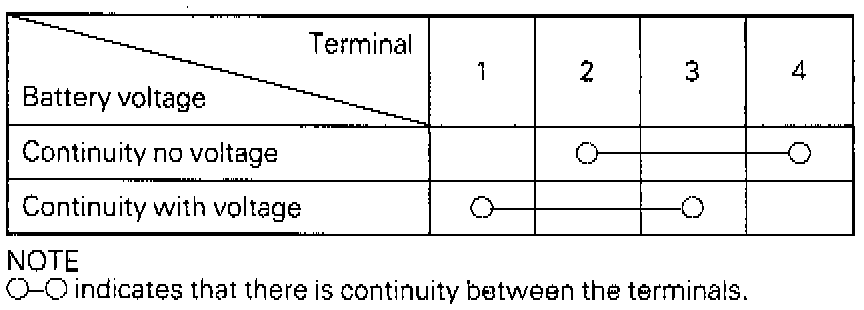

Apply battery voltage to terminal 2, and check for continuity when terminal 4 is grounded. Refer to the chart below.
