Refrigerant Temperature Sensor: Locations

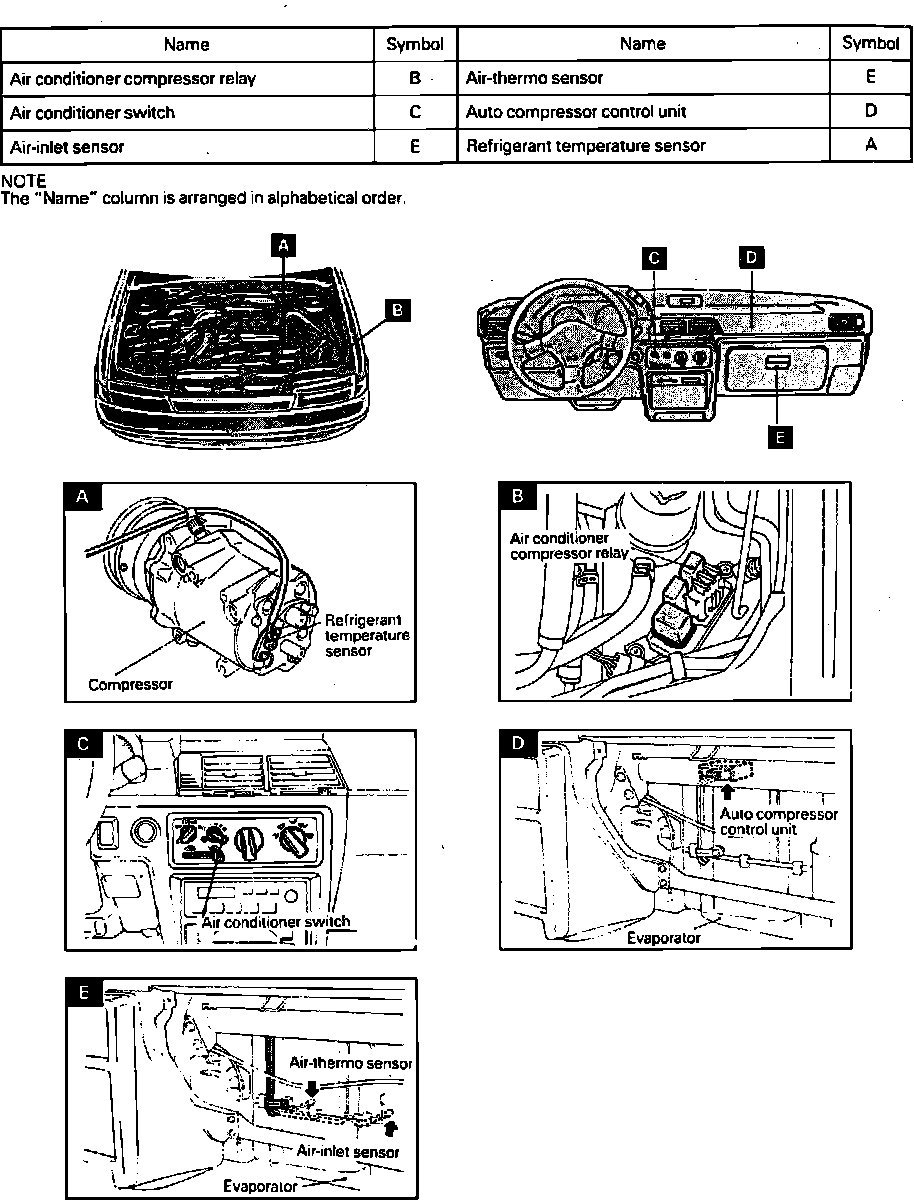

Air Conditioning Components.:




Front Of Engine, Rear Of A/C Compressor

Applicable to: Colt & Summit
