Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Chart No. 2, Set Switch Circuit Test
Chart No. 2, Set Switch Circuit Test

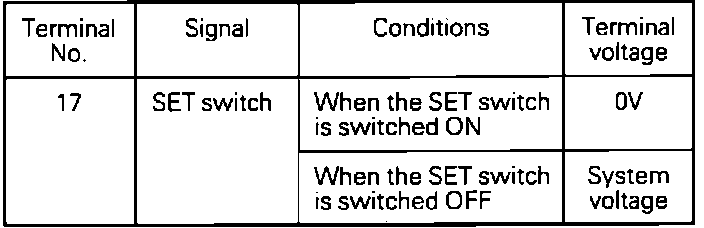

Fig. 46 Check Chart No. 2, Set Switch Wiring Circuit:
