Home >> Eagle >> 1992 >> Premier V6-182 3.0L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications

System Specifications

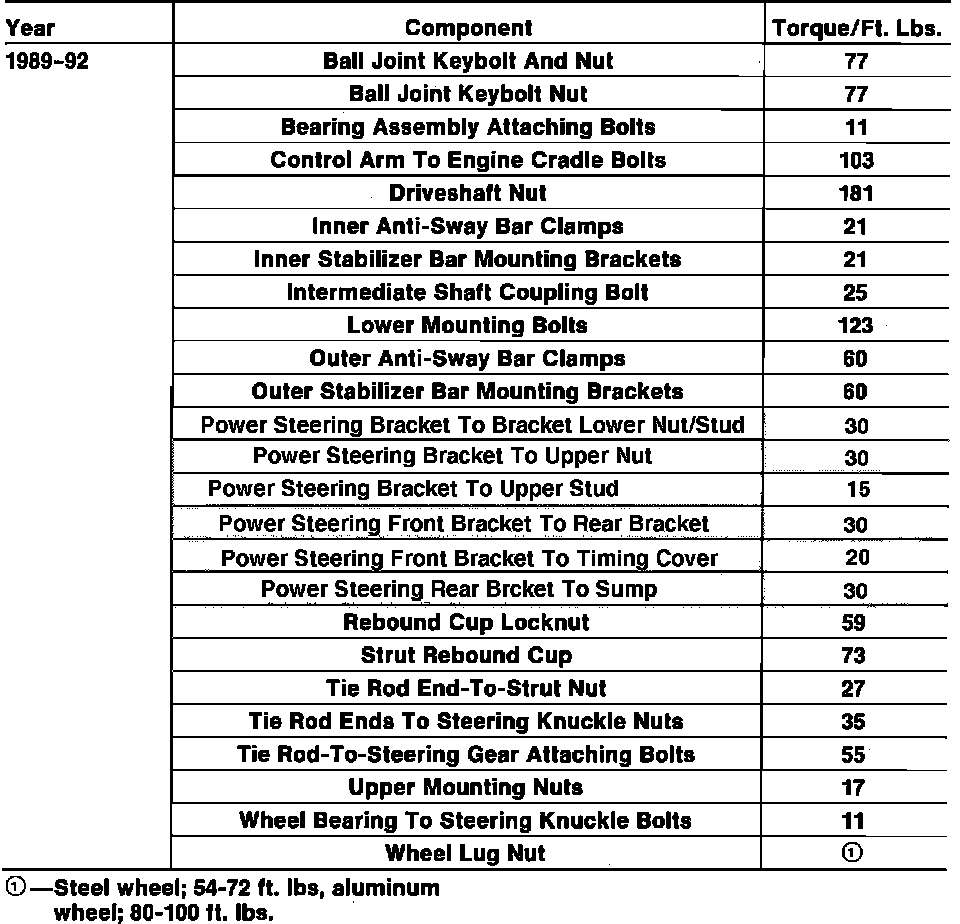

Fig. 14 Tightening Specifications:
